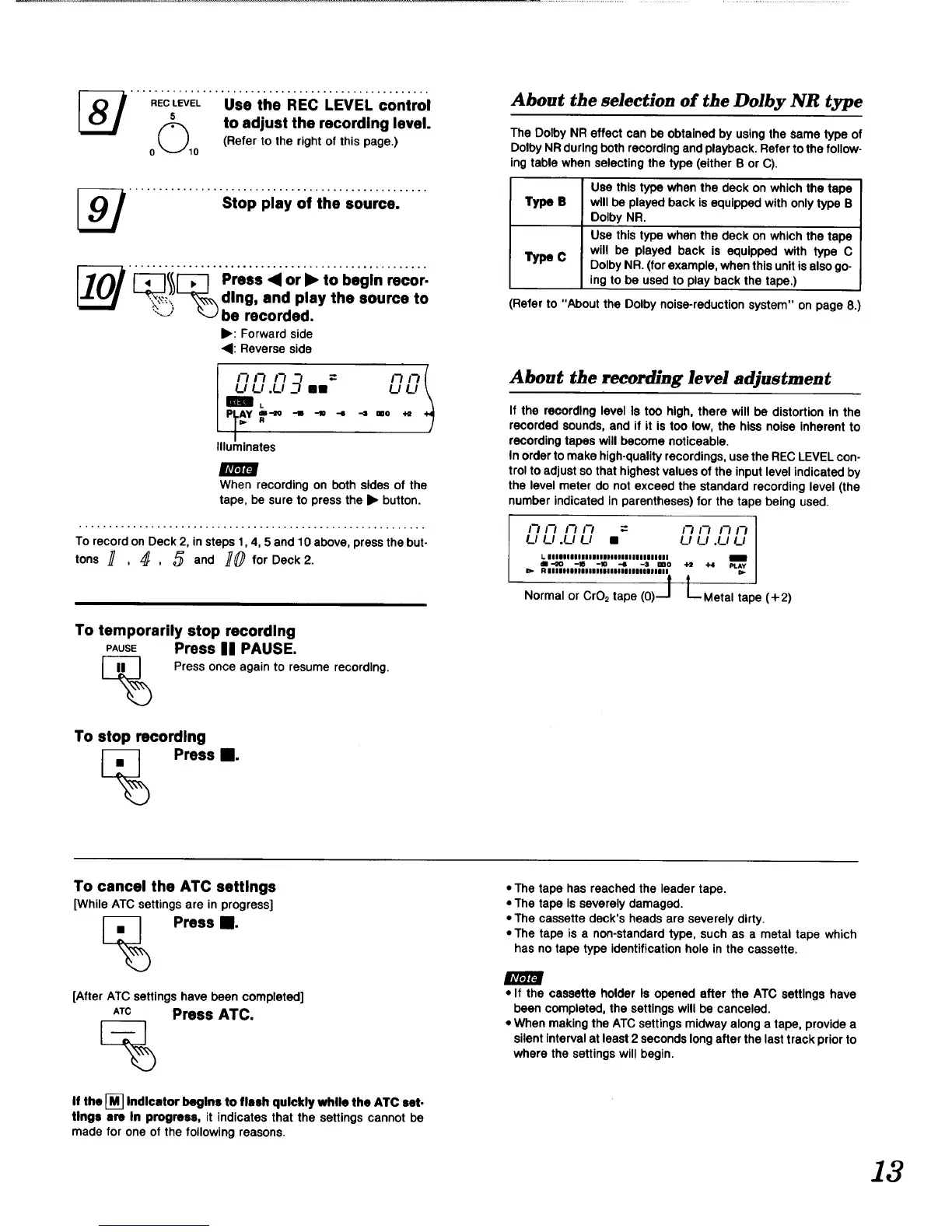

/,_ to adjust the recording level.
o_J)lo (Refer to the right of this page.)
................StoP;;i,yoitheso.=e.....
or=;;0b;O," cor-
_-. _ dlng, and play the source to
"_--;'_ be recorded.
• : Forward side
<1: Reverse side
LI LI .LI _ ==m I-) I-) (
ram, -o _, '_,,
PLAY ="=o --I= --Io 4 -4
)
Illuminates
Ar,v_,a
When recordingon both sides of the
tape, be sureto press the • button.
To record on Deck 2, in steps 1,4, 5 and 10 above, press the but-
tons _ , ,_ , _ and _@ for Deck 2.
To temporarily stop recording
PAUSE Press II PAUSE.
Press once again to resume recording.
To stop recording
Press i.
About the selection of the Dolby NR type
The Dolby NR effect can be obtained by using the same type of
Dolby NR during both recording and playback: Refer to the follow-
ing table when selecting the type (either B or C).
Type B
TypeC
Use this type when the deck on which the tape
will be played back is equipped with only type B
Dolby NR.
Use this type when the deck on which the tape
will be played back is equipped with type C
Dolby NR. (for example, when this unit is also go-
ing to be used to play back the tape.)
Refer to "About the Dolby noise-reduction system" on page 8
About the recording level adjustment
If the recording level Is too high, there will be distortion in the
recorded sounds, and if it is too low, the hiss noise inherent to
recording tapes will become noticeable.
In order to make high-quality recordings, use the REC LEVEL con-
trol to adjust so that highest values of the input level indicated by
the level meter do not exceed the standard recording level (the
number indicated in parentheses) for the tape being used.
/-7/-) /-I IT = /-7/-) /'-//-I
L/U.UL/ • L/U.L/IJ
L IIInlnlllllllllnlllllllllllUl i
_-_0 -15 -110 -6 -3 ZO +2 +4 PLAY
lip R IlnllnllllllllillllllnOnlllll
# #
Normal or CrO2 tape (0)/ L-Metal pe (+2)
To cancel the ATC settings
[While ATC settings are in progress]
Press i.
[After ATC settings have been completed]
ATC Press ATC.
If the [] Indicator begins to flash quickly while the ATC set-
tings are In progress, it indicates that the settings cannot be
made for one of the following reasons.
=The tape has reached the leader tape.
• The tape Is severely damaged.
• The cassette deck's heads are severely dirty.
• The tape is a non-standard type, such as a metal tape which
has no tape type identification hole in the cassette.
• If the cassette holder Is opened after the ATC settings have
beencompleted,the settingswill be canceled.
* When makingthe ATC settingsmidwayalonga tape, providea
silentintervalat least2 secondslongafter the lasttrack priorto
where the settingswil! begin.
13
