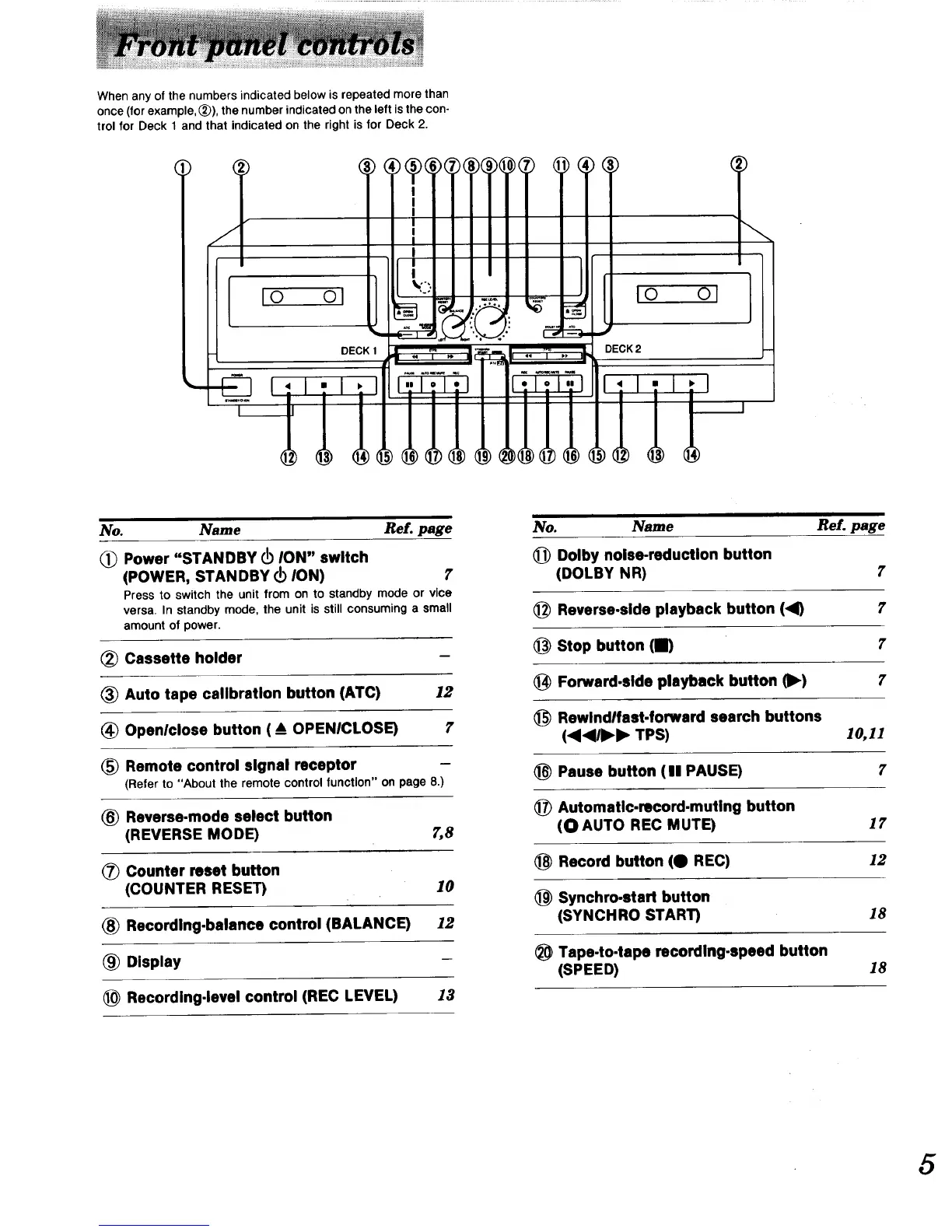

Whenany of the numbers indicated below is repeated more than
once (for example, (_)), the number indicated on the left is the con-
trol for Deck 1 and that indicated on the right is for Deck 2.
IO Ol
I0
DECK2
el
No. Name Re£. page
(_ Power "STANDBY OI ION" switch
(POWER, STANDBY OI ION) 7
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
_) Cassette holder
(_) Auto tape calibration button (ATC) 12
(_) Openlclose button (• OPENICLOSE) 7
(_ Remote control signal receptor
(Refer to "About the remote control function" on page 8.)
(_ Reverse-mode select button
(REVERSE MODE) 7,8
(_) Counter reset button
(COUNTER RESET) 10
(_ Recording-balance control (BALANCE) /2
Display
Recording-level control (REC LEVEL) 13
i ii
No. Name Re?. page
(_) Dolby noise-reduction button
(DOLBY NR) 7
(_) Reverse-side playback button (<1) 7
(_ Stop button (Ill) 7
(_ Forward.side playback button 0)_) 7
(_ Rewindlfast-forward search buttons
(4<111_1_ TPS) 10,11
(_ Pause button (11 PAUSE) 7
(_) Automatic-record-muting button
(OAUTO REC MUTE) 17
_) Record button (O REC) 12
_) Synchro-start button
(SYNCHRO START) 18
(_ Tape-to-tape recording-speed button
(SPEED) 18
