Technics RS-TR575M2 User Manual

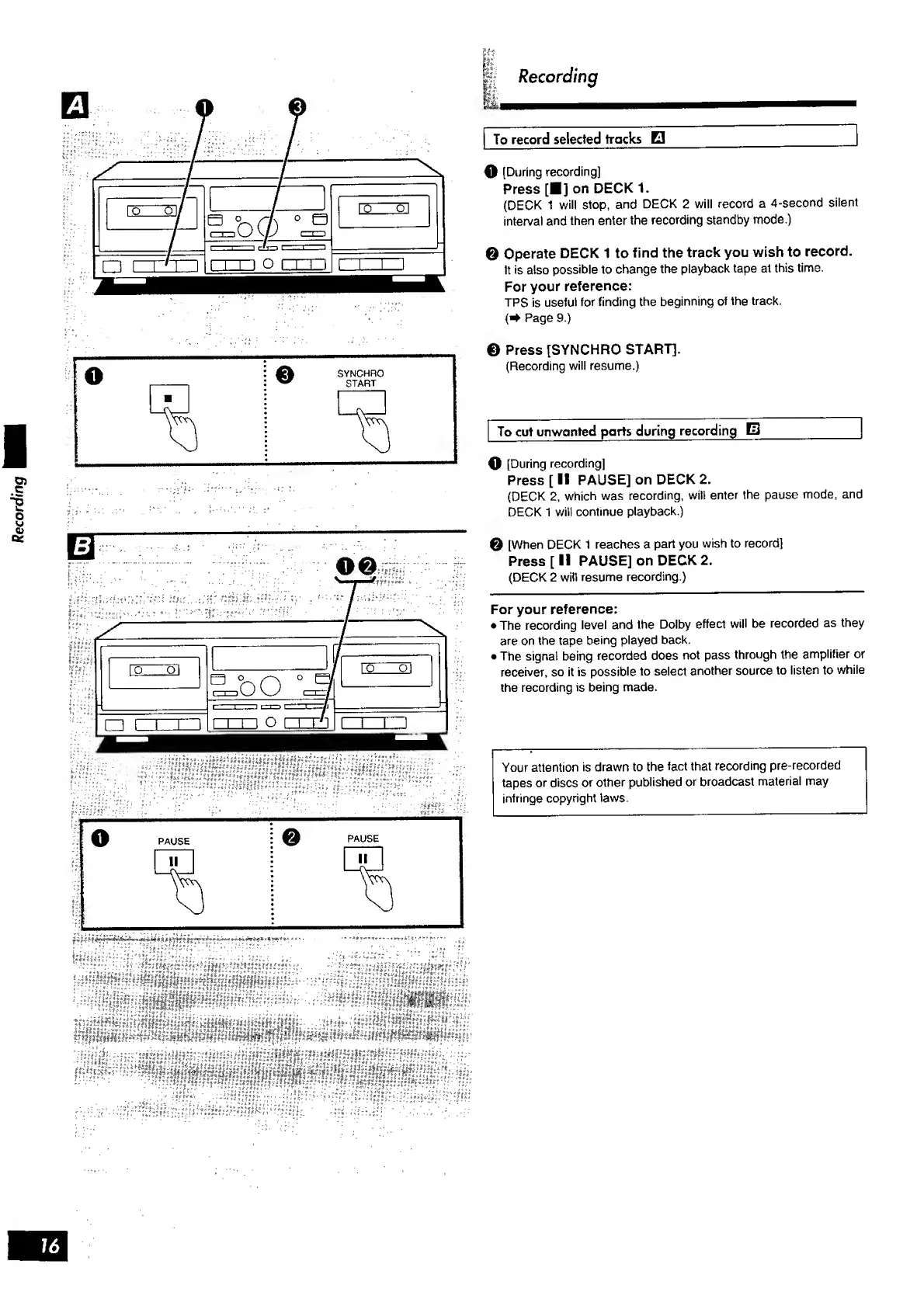

Recording
To record selected tracks D
0 [During recording]
Press [ ■ ] on DECK 1.
(DECK 1 will stop, and DECK 2 will record a 4-second silent
interval and then enter the recording standby mode.)
0 Operate DECK 1 to find the track you wish to record.
It is also possible to change the playback tape at this time.
For your reference:
TPS is useful for finding the beginning of the track.
(# Page 9.)
€> Press [SYNCHRO START].
(Recording will resume.)
To cut unwonted parts during recording B _
O [During recording]
Press [ II PAUSE] on DECK 2.
(DECK 2, which was recording, will enter the pause mode, and
DECK 1 will continue playback.)
0 [When DECK 1 reaches a part you wish to record]
Press [ II PAUSE] on DECK 2.
(DECK 2 will resume recording.)
For your reference:
• The recording level and the Dolby effect will be recorded as they
are on the tape being played back.
• The signal being recorded does not pass through the amplifier or
receiver, so it is possible to select another source to listen to while
the recording is being made.
Your attention is drawn to the fact that recording pre-recorded
tapes or discs or other published or broadcast material may
infringe copyright laws.

Technics RS-TR575M2 Specifications

Audio Specifications

signal-to-noise ratio (NR off)	56 dB (A weighted)
signal-to-noise ratio (Dolby B NR on)	66 dB (A weighted)
signal-to-noise ratio (Dolby C NR on)	74 dB (A weighted)

Electrical Specifications

bias frequency	80 kHz
input sensitivity and impedance	100 mV/47 kΩ
output voltage and impedance	500 mV/500 Ω

Power

power supply (UK, Australia, NZ)	AC 230-240 V, 50/60 Hz
power supply (Others)	AC 110 V/127 V/220 V/230-240 V, 50/60 Hz
power consumption (UK, Australia, NZ)	28 W

Weight and Dimensions

dimensions (W x H x D)	430 x 136 x 285 mm
weight	4.4 kg
tape speed	4.8 cm/s
