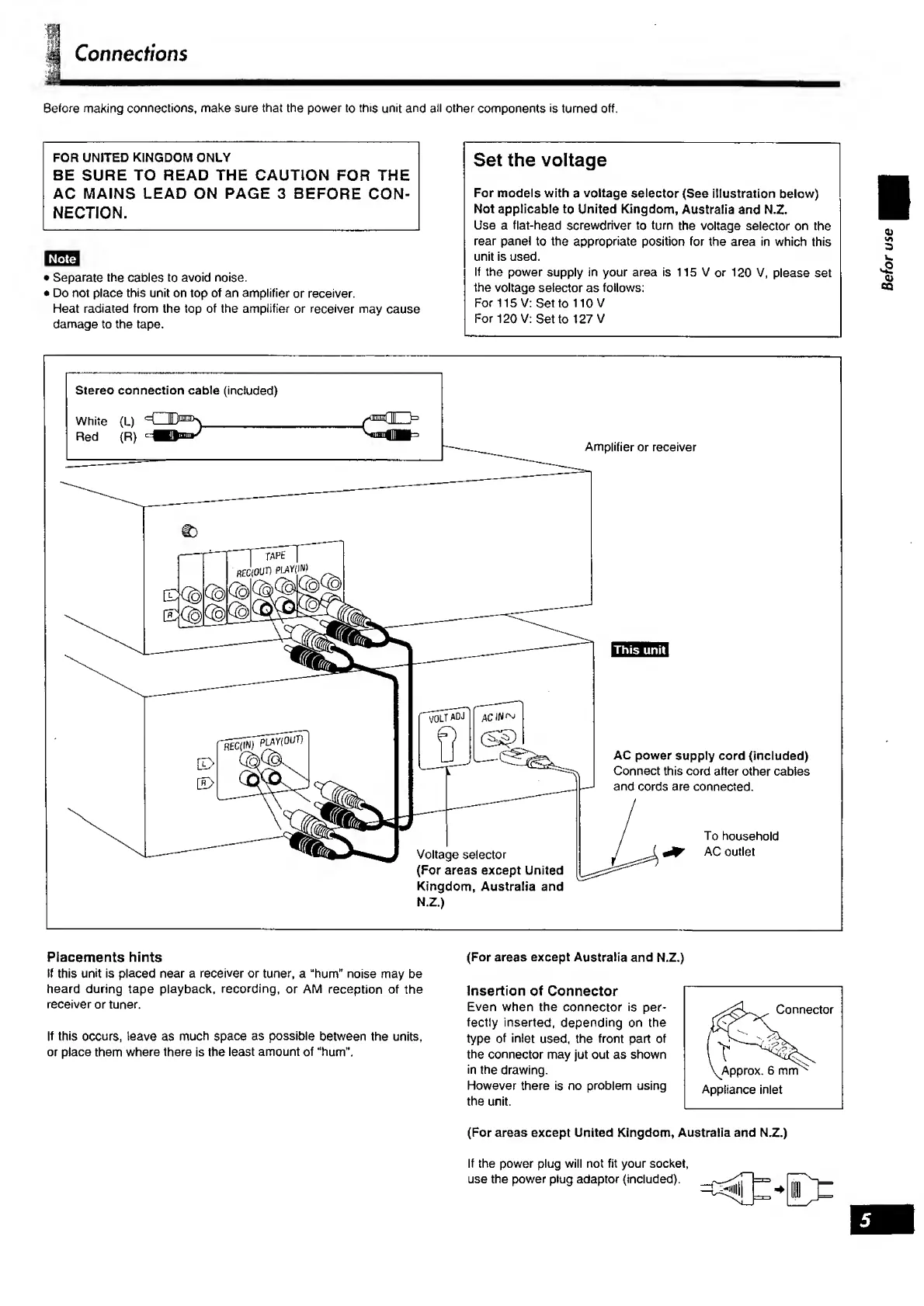

Connections
Before making connections, make sure that the power to this unit and alt other components is turned off.
FOR UNITED KINGDOM ONLY
BE SURE TO READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 3 BEFORE CON¬
NECTION.
rBffi
• Separate the cables to avoid noise.
• Do not place this unit on top of an amplifier or receiver.
Heat radiated from the top of the amplifier or receiver may cause
damage to the tape.
Set the voltage
For models with a voltage selector (See illustration below)
Not applicable to United Kingdom, Australia and N.Z.
Use a flat-head screwdriver to turn the voltage selector on the
rear panel to the appropriate position for the area in which this
unit is used.
If the power supply in your area is 115 V or 120 V, please set
the voltage selector as follows:
For 115 V: Set to 110 V
For 120 V: Set to 127 V
Placements hints
If this unit is placed near a receiver or tuner, a “hum" noise may be
heard during tape playback, recording, or AM reception of the
receiver or tuner.
If this occurs, leave as much space as possible between the units,
or place them where there is the least amount of “hum”.
(For areas except Australia and N.Z.)
Insertion of Connector
Even when the connector is per¬
fectly inserted, depending on the
type of inlet used, the front part of
the connector may jut out as shown
in the drawing.
However there is no problem using
the unit.
(For areas except United Kingdom, Australia and N.Z.)
If the power plug will not fit your socket,
use the power plug adaptor (included).
5
Befor
use

Technics RS-TR575M2 Specifications

Audio Specifications

signal-to-noise ratio (NR off)	56 dB (A weighted)
signal-to-noise ratio (Dolby B NR on)	66 dB (A weighted)
signal-to-noise ratio (Dolby C NR on)	74 dB (A weighted)

Electrical Specifications

bias frequency	80 kHz
input sensitivity and impedance	100 mV/47 kΩ
output voltage and impedance	500 mV/500 Ω

Power

power supply (UK, Australia, NZ)	AC 230-240 V, 50/60 Hz
power supply (Others)	AC 110 V/127 V/220 V/230-240 V, 50/60 Hz
power consumption (UK, Australia, NZ)	28 W

Weight and Dimensions

dimensions (W x H x D)	430 x 136 x 285 mm
weight	4.4 kg
tape speed	4.8 cm/s
