Technics RS-TR575M2 User Manual

Before
use

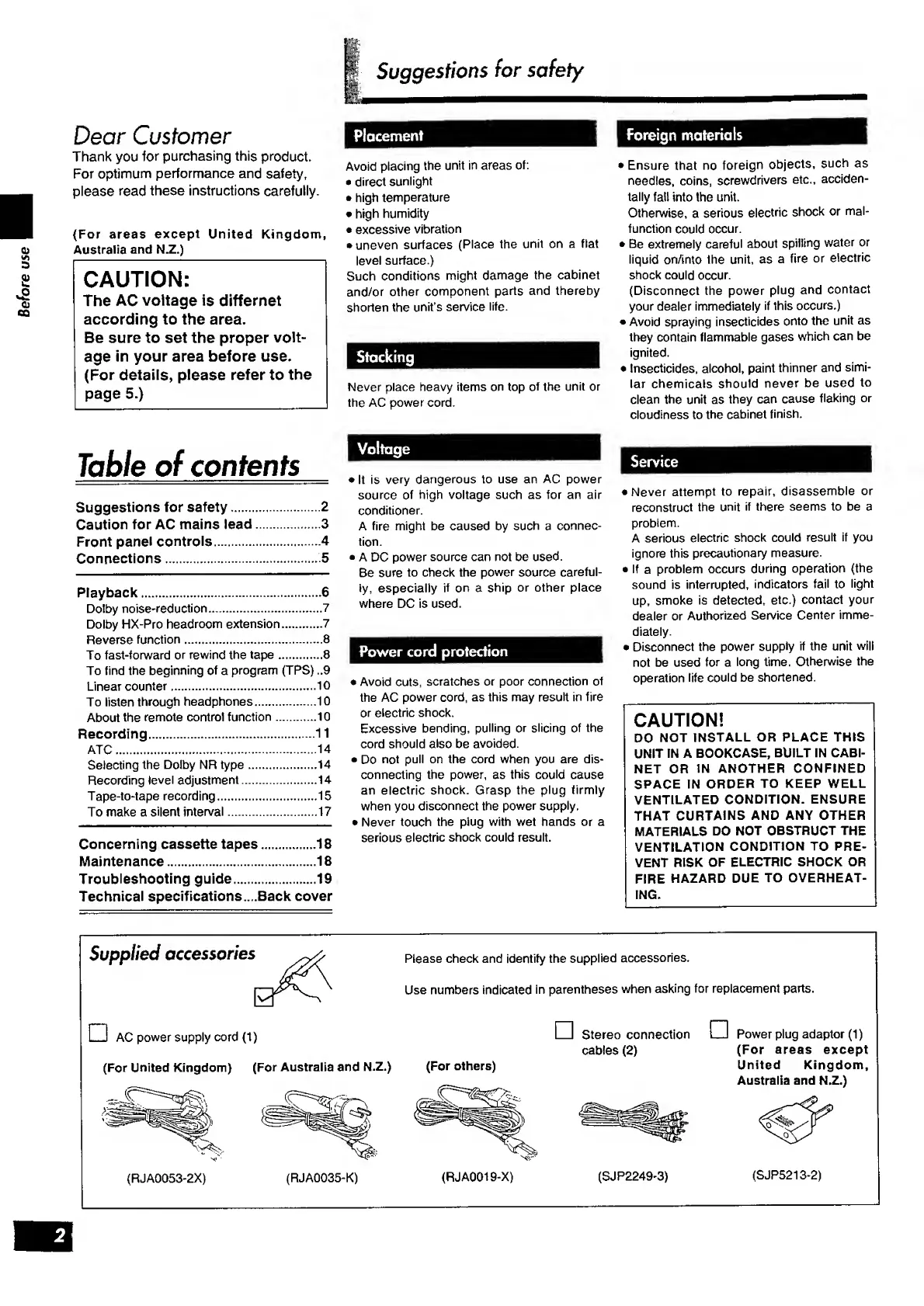

1 Suggestions for safety
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety,
please read these instructions carefully.
(For areas except United Kingdom,
Australia and N.Z.)
CAUTION:
The AC voltage is differnet
according to the area.
Be sure to set the proper volt¬
age in your area before use.
(For details, please refer to the
page 5.)
Table of contents
Suggestions for safety.2
Caution for AC mains lead.3
Front panel controls.4
Connections.5
Playback.6
Dolby noise-reduction.7
Dolby HX-Pro headroom extension.7
Reverse function.8
To fast-forward or rewind the tape.8
To find the beginning of a program (TPS) ..9
Linear counter.10
To listen through headphones.10
About the remote control function.10
Recording.11
ATC.14
Selecting the Dolby NR type.14
Recording level adjustment.14
Tape-to-tape recording.15
To make a silent interval.17
Concerning cassette tapes.18
Maintenance.18
Troubleshooting guide.19
Technical specifications ...Back cover
Placement
Avoid placing the unit in areas of:
• direct sunlight
• high temperature
• high humidity
• excessive vibration
• uneven surfaces (Place the unit on a flat
level surface.)
Such conditions might damage the cabinet
and/or other component parts and thereby
shorten the unit's service life.
Stacking
Never place heavy items on top of the unit or
the AC power cord.
Voltage
• It is very dangerous to use an AC power
source of high voltage such as for an air
conditioner.
A fire might be caused by such a connec¬
tion.
• A DC power source can not be used.
Be sure to check the power source careful¬
ly, especially if on a ship or other place
where DC is used.
Power cord protection
• Avoid cuts, scratches or poor connection of
the AC power cord, as this may result in fire
or electric shock.
Excessive bending, pulling or slicing of the
cord should also be avoided.
• Do not pull on the cord when you are dis¬
connecting the power, as this could cause
an electric shock. Grasp the plug firmly
when you disconnect the power supply.
• Never touch the piug with wet hands or a
serious electric shock could result.
Foreign materials
• Ensure that no foreign objects, such as
needles, coins, screwdrivers etc., acciden¬
tally fall into the unit.
Otherwise, a serious electric shock or mal¬
function could occur.
• Be extremely careful about spilling water or
liquid on/into the unit, as a fire or electric
shock could occur.
(Disconnect the power plug and contact
your dealer immediately if this occurs.)
• Avoid spraying insecticides onto the unit as
they contain flammable gases which can be
ignited.
• Insecticides, alcohol, paint thinner and simi¬
lar chemicals should never be used to
clean the unit as they can cause flaking or
cloudiness to the cabinet finish.
Service
• Never attempt to repair, disassemble or
reconstruct the unit if there seems to be a
problem.
A serious electric shock could result if you
ignore this precautionary measure.
• If a problem occurs during operation (the
sound is interrupted, indicators fail to light
up, smoke is detected, etc.) contact your
dealer or Authorized Service Center imme¬
diately.
• Disconnect the power supply if the unit will
not be used for a long time. Otherwise the
operation life could be shortened.
CAUTION!
DO NOT INSTALL OR PLACE THIS
UNIT IN A BOOKCASE, BUILT IN CABI¬
NET OR IN ANOTHER CONFINED
SPACE IN ORDER TO KEEP WELL
VENTILATED CONDITION. ENSURE
THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE
VENTILATION CONDITION TO PRE¬
VENT RISK OF ELECTRIC SHOCK OR
FIRE HAZARD DUE TO OVERHEAT¬
ING.
Supplied accessories
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for replacement parts.
□ AC power supply cord (1)
(For United Kingdom) (For Australia and N.Z.)
(RJA0035-K)
(For others)
(RJA0019-X)
□ Stereo connection
cables (2)
(SJ P2249-3)
Cl] Power plug adaptor (1)
(For areas except
United Kingdom,
Australia and N.Z.)
(SJP5213-2)
2

Technics RS-TR575M2 Specifications

Audio Specifications

signal-to-noise ratio (NR off)	56 dB (A weighted)
signal-to-noise ratio (Dolby B NR on)	66 dB (A weighted)
signal-to-noise ratio (Dolby C NR on)	74 dB (A weighted)

Electrical Specifications

bias frequency	80 kHz
input sensitivity and impedance	100 mV/47 kΩ
output voltage and impedance	500 mV/500 Ω

Power

power supply (UK, Australia, NZ)	AC 230-240 V, 50/60 Hz
power supply (Others)	AC 110 V/127 V/220 V/230-240 V, 50/60 Hz
power consumption (UK, Australia, NZ)	28 W

Weight and Dimensions

dimensions (W x H x D)	430 x 136 x 285 mm
weight	4.4 kg
tape speed	4.8 cm/s
