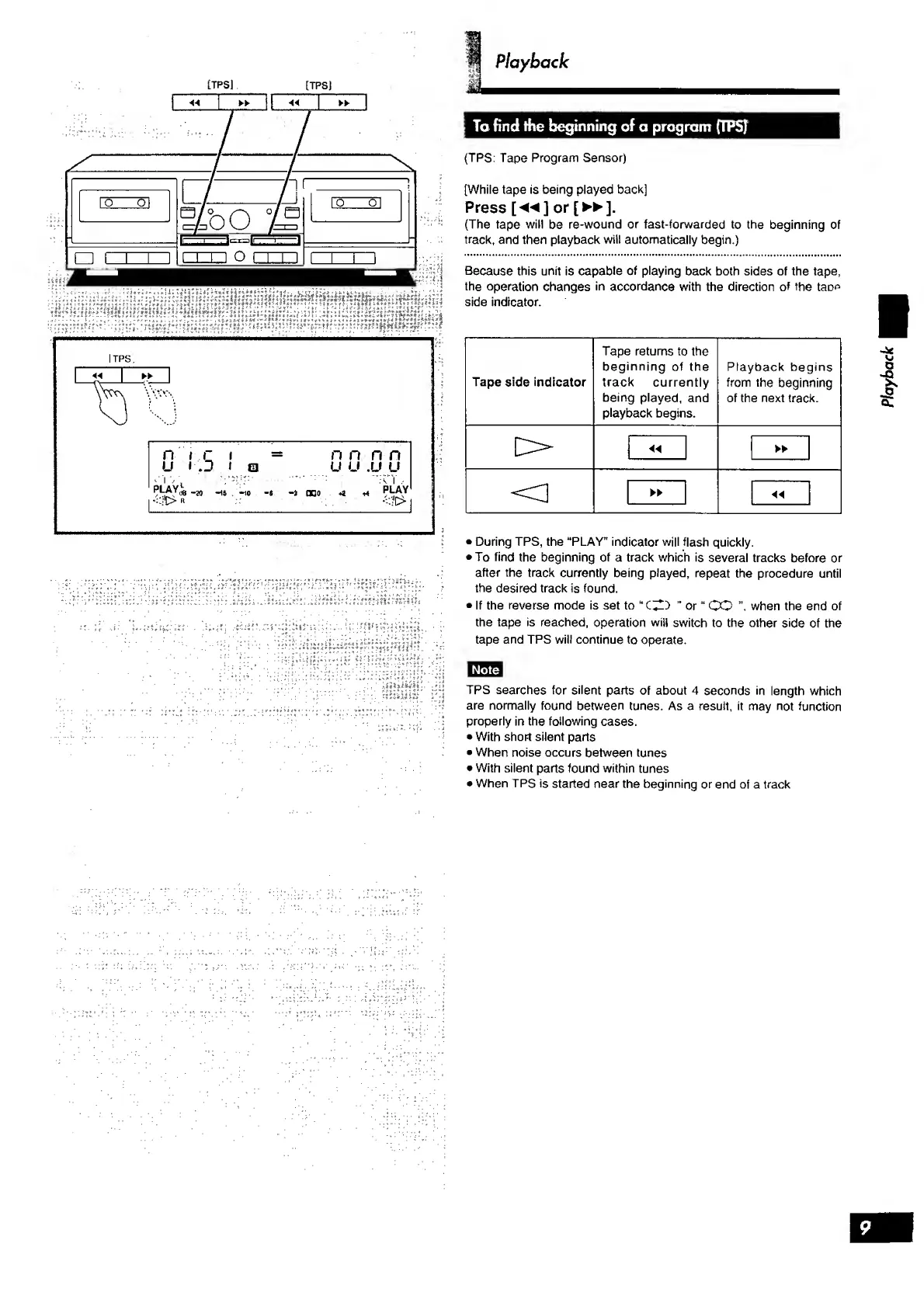

Technics RS-TR575M2 User Manual

[TPS] [TPS]
Playback
To find the beginning of a program fTPSjf
{TPS: Tape Program Sensor)
[While tape is being played back]
Press [ ◄ ◄ ] or [ ► ► ] .
(The tape will be re-wound or fast-forwarded to the beginning of
track, and then playback will automatically begin.)
Because this unit is capable of playing back both sides of the tape,
the operation changes in accordance with the direction of the taoe
side indicator.
Tape side indicator
Tape returns to the
beginning of the
track currently
being played, and
playback begins.
Playback begins
from the beginning
of the next track.
o
44
—
►►
►►
44
• During TPS, the "PLAY” indicator will flash quickly.
• To find the beginning of a track which is several tracks before or
after the track currently being played, repeat the procedure until
the desired track is found.
• If the reverse mode is set to ” or “ OO ”, when the end of
the tape is reached, operation will switch to the other side of the
tape and TPS will continue to operate.
ironsi
TPS searches for silent parts of about 4 seconds in length which
are normally found between tunes. As a result, it may not function
properly in the following cases.
• With short silent parts
• When noise occurs between tunes
• With silent parts found within tunes
• When TPS is started near the beginning or end of a track
9
Playback

Technics RS-TR575M2 Specifications

Audio Specifications

signal-to-noise ratio (NR off)	56 dB (A weighted)
signal-to-noise ratio (Dolby B NR on)	66 dB (A weighted)
signal-to-noise ratio (Dolby C NR on)	74 dB (A weighted)

Electrical Specifications

bias frequency	80 kHz
input sensitivity and impedance	100 mV/47 kΩ
output voltage and impedance	500 mV/500 Ω

Power

power supply (UK, Australia, NZ)	AC 230-240 V, 50/60 Hz
power supply (Others)	AC 110 V/127 V/220 V/230-240 V, 50/60 Hz
power consumption (UK, Australia, NZ)	28 W

Weight and Dimensions

dimensions (W x H x D)	430 x 136 x 285 mm
weight	4.4 kg
tape speed	4.8 cm/s
