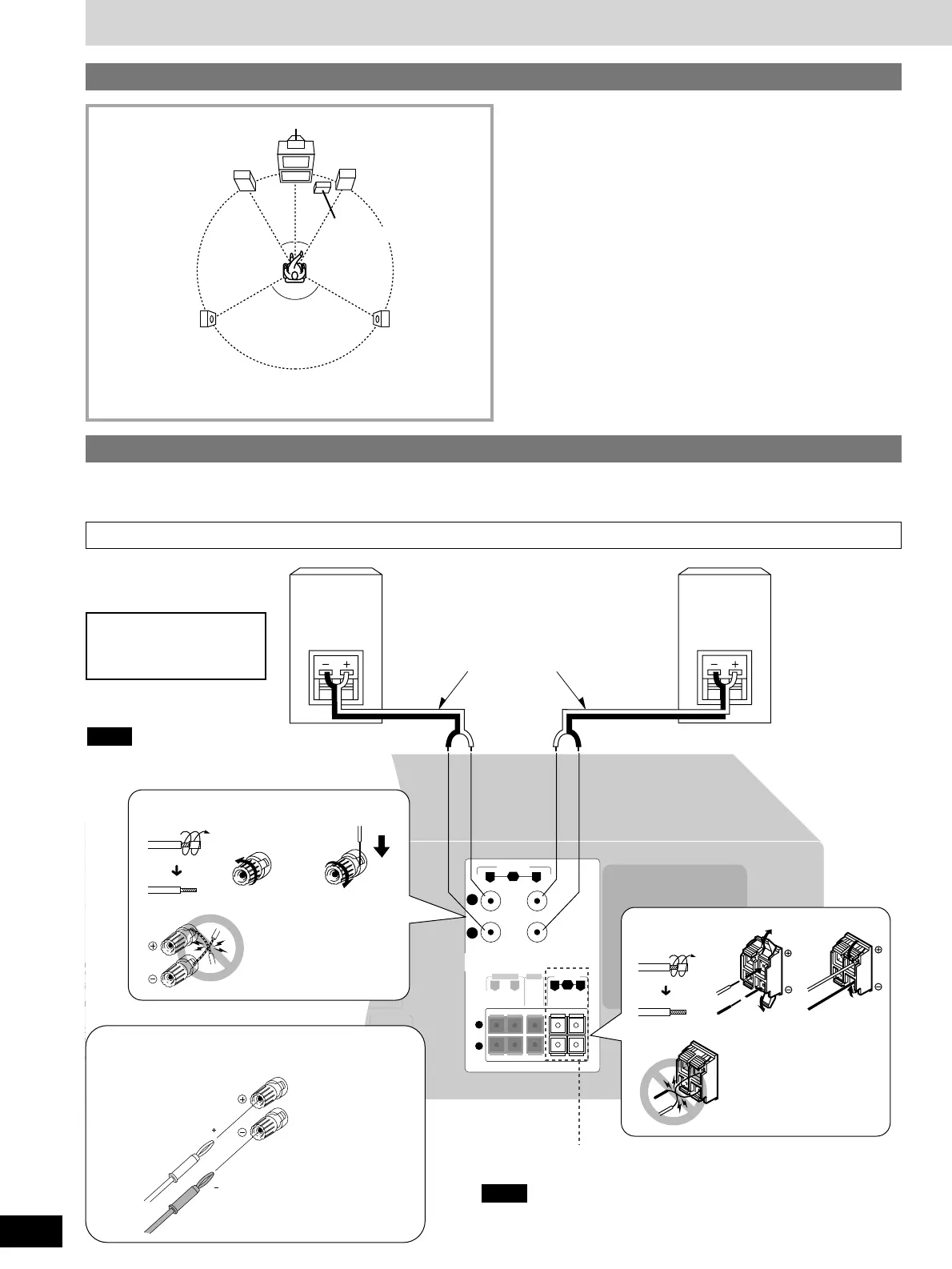

Front speaker
(left)
Subwoofer
Surround speaker
(left)
Surround speaker
(right)
Center speaker
Front speaker
(right)
Front speakers
Place on the left and right of the TV at seated ear height so that
there is good coherency between the picture and sound.
Center speaker
Place underneath or above the center of the TV. Aim the speaker at
the seating area.
Surround speakers
Place on the side of or slightly behind the seating area, about one
meter higher than ear level.
Subwoofer
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yield the smoothest low
frequency performance. Placement near a corner can increase the
apparent output level, but can result in unnatural bass.
Other connections are possible depending on your speaker system.
See your speaker system’s operating instructions for details.
Front speaker
(right)
If you connect speakers with an impedance
under 6 Ω, switch on “LOW IMP” (
\
page 14).
Note
Speaker cables
Front speaker
(left)
Speaker impedance:
A or B: 4-8 Ω
A and B: 8 Ω
“B” terminals
For connection to a second pair of speakers.
Use the A terminals to enjoy SURROUND, SFC and DVD 6CH INPUT.
Note
The front, center, and surround speakers should be placed at
approximately the same distance from the seating area. The angles
in the diagram are approximate.
If using 4-mm plugs
(available at audio suppliers)
Fully tighten the speaker
terminal, and then insert
the plug into the top of the
terminal.
