Connections
8
RQT5730

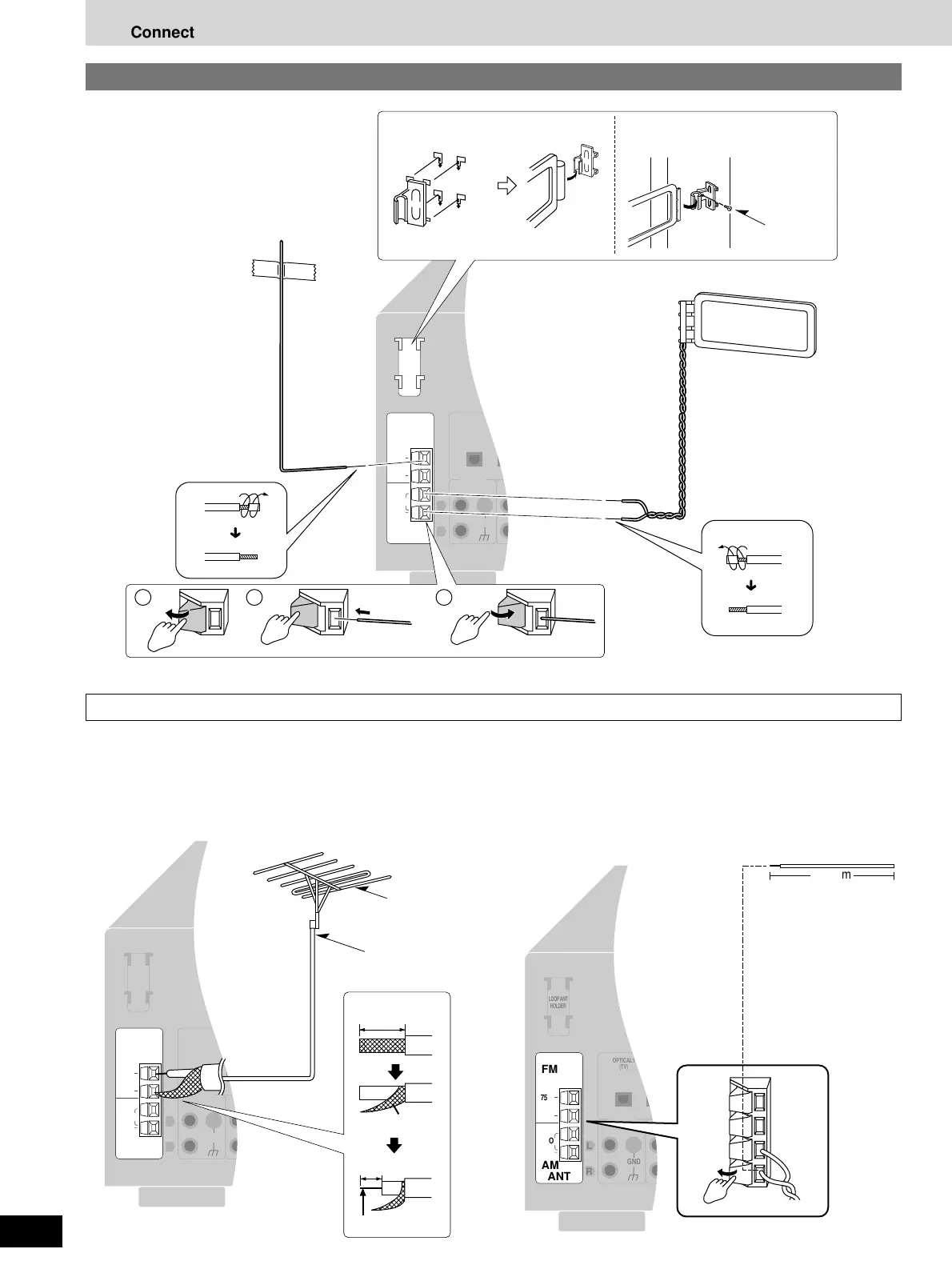

Antenna connections
AM loop antenna
¡Fit the AM loop antenna holder
(included) onto the rear panel of
this unit and then attach the AM
loop antenna to it (facing in the
direction of best reception).
¡Keep the antenna cord away
from tape decks, DVD players,
and other cords.
FM antenna
Fix the other end of the antenna where
reception is best.
When mounting the antenna
to a column, wall or rack
To connect an outdoor antenna
Adhesive tape
FM indoor antenna (included)
Vinyl-covered wire
Screw
(included)
FM outdoor antenna
¡Disconnect the FM indoor antenna.
¡The antenna should be installed by a competent technician.
¡Twist the coaxial cable’s shield braid firmly and connect it to the
GND terminal.
AM outdoor antenna
¡Run a piece of vinyl wire horizontally across a window or other
convenient location.
¡Leave the loop antenna connected.
¡Disconnect the antenna when the unit is not in use. Do not use
the antenna during an electrical storm.
(16–40 ft)
20 mm (25/32")
10 mm (3/8")
Shield braid
Core wire
FM outdoor anntena
75 Ω coaxial cable
AM loop antenna (included)
To Next Page
