SL-1200M3D

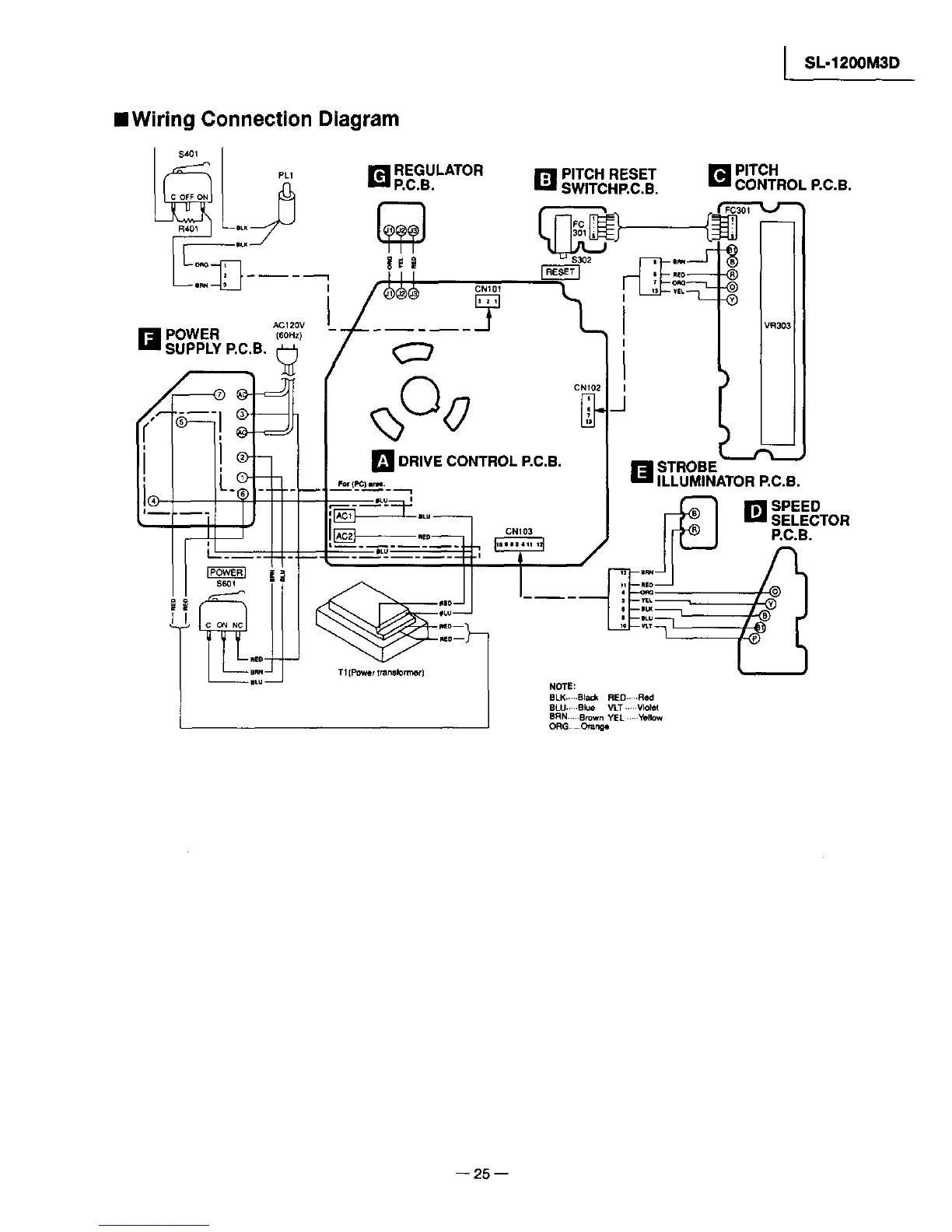

IIIWiring Connection Diagram
Sd01
PL1
AC120V
laPOWER
SUPPLY P.C.B.
[] REGULATOR
P.C.B.
I_l DRIVE CONTROL P.C.B.
[] PITCH RESET
SWITCHP.C.B.
CN103
Tl(Powe_ transiormer)
I
B PITCH
CONTROL P.C.B.
]STROBE
ILLUMINATOR RC.B.
-- 25 --
