Technics SL-1500C User Manual

17

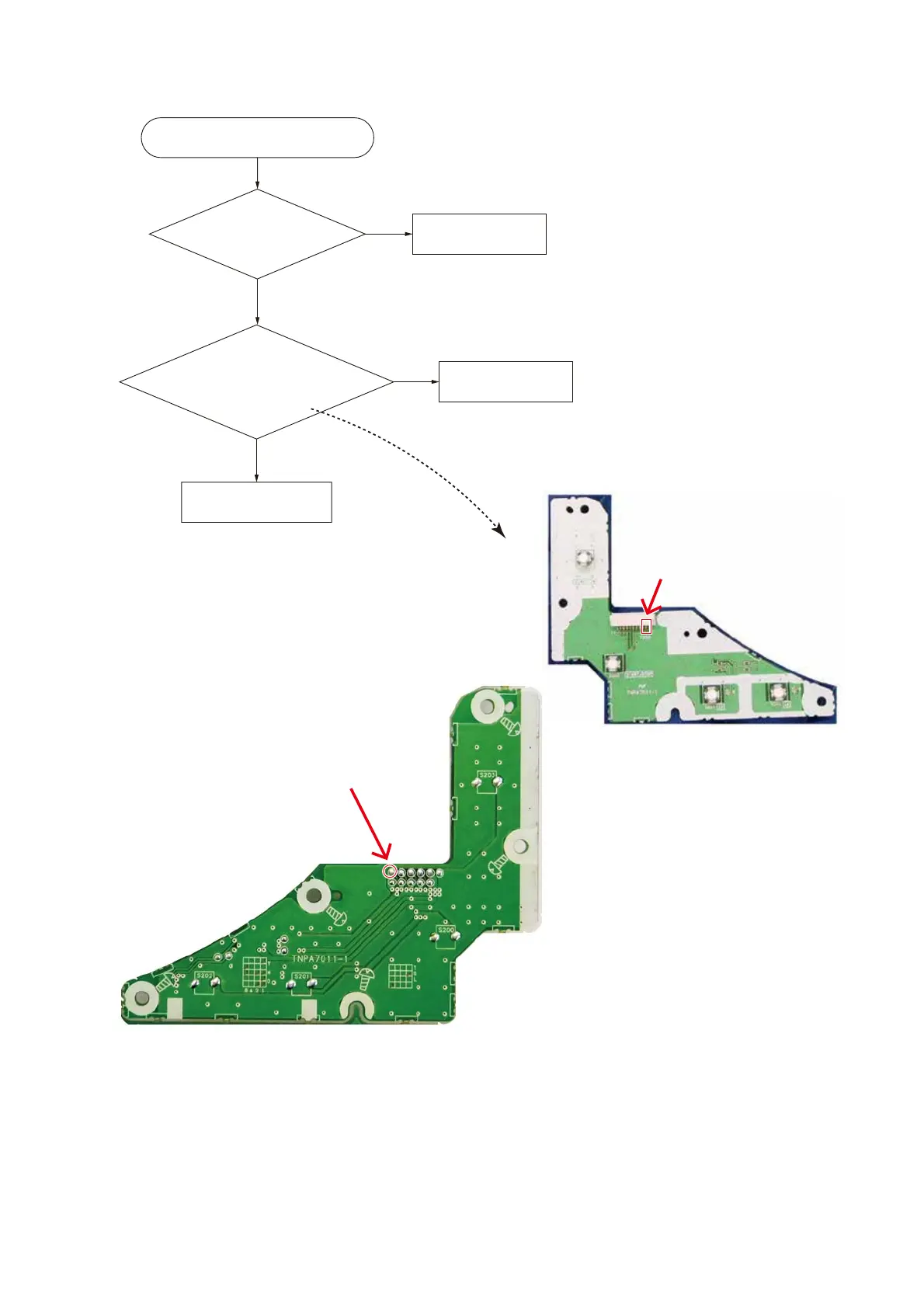

5.5.2. LED for speed select button ([33] or [45]) --- No Illumination
YES
LED for 33 or 45 --- No Illumination
Replace PANEL PCB.
Is the correct
voltage presented
at Pin 2 (CK201) of connector P200
on PANEL PCB?
Normal : +24V
YES
Replace MAIN PCB.
NO
Note:
Refer to “Chap. 5.5.1. LEDs for speed select buttons (both [33] and [45]) --- No Illumination”
for check/measurement point.
Is the clock
(X1001) for microcomputer
(IC1001) oscillated?
Replace MAIN PCB.
NO
Pin 2 (CK201) of
connector P200
Pin 2 (CK201) of
connector P200
PANEL PCB
PANEL PCB

Technics SL-1500C Specifications

General

Drive Method	Direct Drive
Wow and Flutter	0.025% WRMS
Platter	Aluminum Die-cast
Phono EQ	Built-in
Weight	9.9 kg
Motor	Brushless DC Motor
Effective Tonearm Length	230 mm
Overhang	15 mm
Phono Output	Yes
Line Output	Yes
Auto Lift	Yes
USB Output	No
Bluetooth	No
Power Supply	AC 110 - 240 V, 50/60 Hz
Turntable Speeds	33 1/3, 45, 78 rpm
Tonearm Type	Static Balance
Cartridge	Ortofon 2M Red
Dimensions	453 x 169 x 372 mm
Signal-to-Noise Ratio	78 dB
