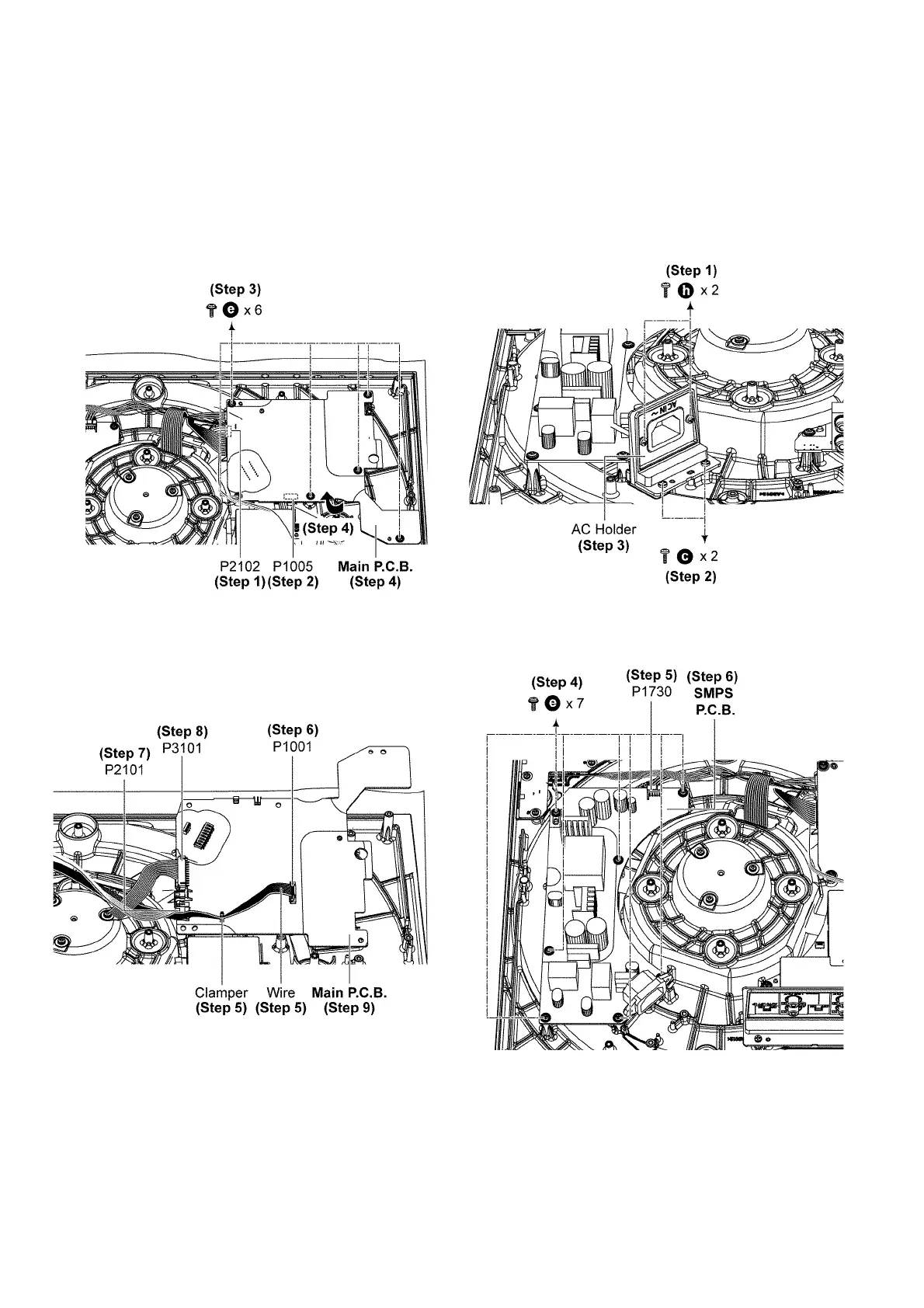

6.10. Disassembly of Main P.C.B.

• Refer to “Disassembly of T/T Rubber Mat and Turntable

Ass’y”.

• Refer to “Disassembly of Insulator Unit”.

• Refer to “Disassembly of Bottom Chassis Ass’y”.

Step 1 Detach 3P Wire at connector (P2102) on Main P.C.B..

Step 2 Detach 5P Wire at connector (P1005) on Main P.C.B..

Step 3 Remove 6 screws.

Step 4 Flip Main P.C.B..

Step 5 Remove Wire from Clamper.

Step 6 Detach 11P Wire at connector (P1001) on Main P.C.B..

Step 7 Detach 5P Wire at connector (P2101) on Main P.C.B..

Step 8 Detach 11P Wire at connector (P3101) on Main P.C.B..

Step 9 Remove Main P.C.B..

6.11. Disassembly of SMPS P.C.B.

• Refer to “Disassembly of T/T Rubber Mat and Turntable

Ass’y”.

• Refer to “Disassembly of Insulator Unit”.

• Refer to “Disassembly of Bottom Chassis Ass’y”.

Step 1 Remove 2 screws.

Step 2 Remove 2 screws.

Step 3 Remove AC Holder.

Step 4 Remove 7 screws.

Step 5 Detach 5P Wire at connector (P1730) on SMPS P.C.B..

Step 6 Remove SMPS P.C.B..
