6.12. Disassembly of Panel P.C.B.
• Refer to “Disassembly of T/T Rubber Mat and Turntable
Ass’y”.
• Refer to “Disassembly of Insulator Unit”.
• Refer to “Disassembly of Bottom Chassis Ass’y”.

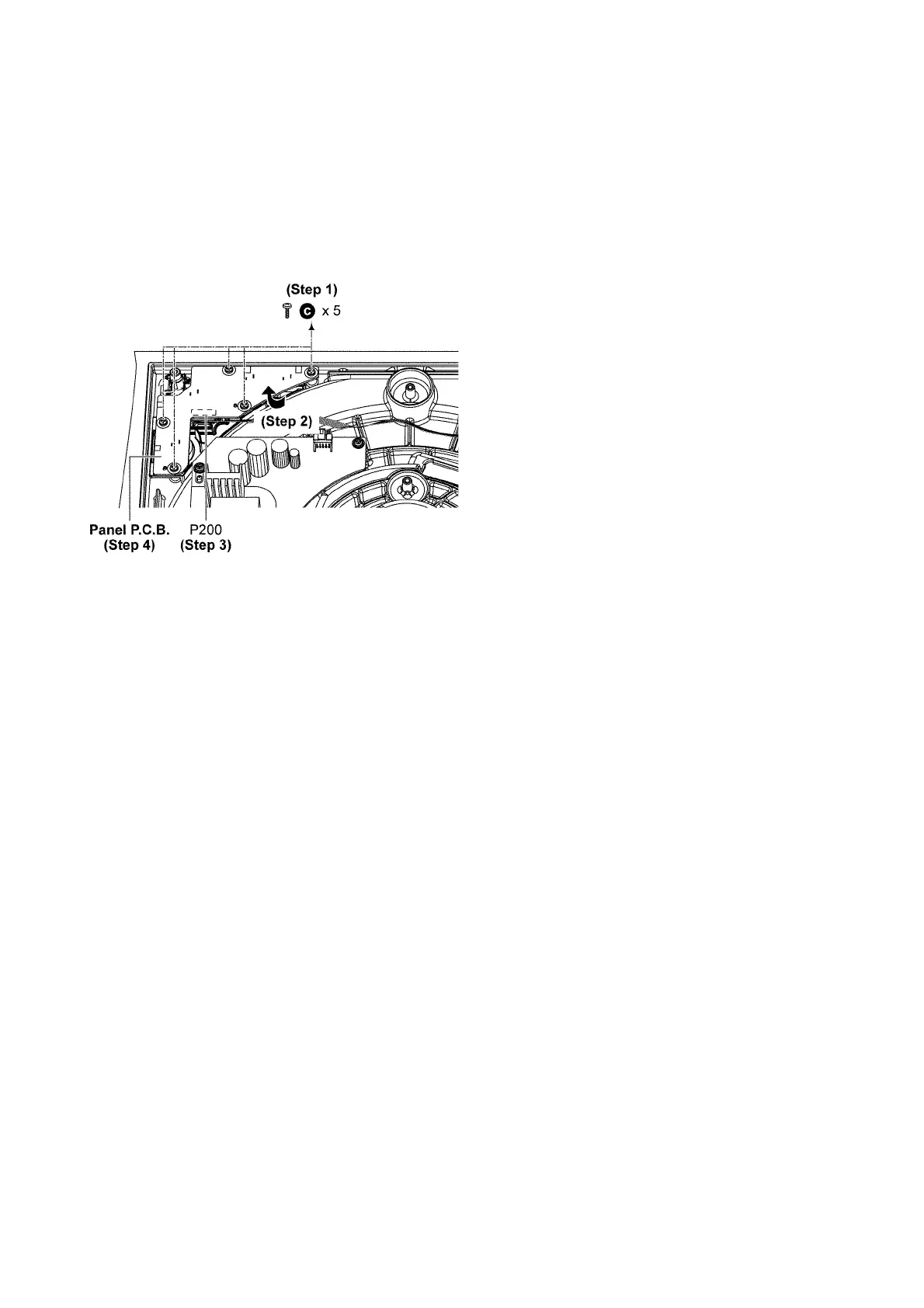

Step 1 Remove 5 screws.
Step 2 Lift up the Panel P.C.B..
Step 3 Detach 11P Wire at connector (P200) on Panel P.C.B..
Step 4 Remove Panel P.C.B..

Technics SL-1500C Specifications

General

Drive Method	Direct Drive
Wow and Flutter	0.025% WRMS
Platter	Aluminum Die-cast
Phono EQ	Built-in
Weight	9.9 kg
Motor	Brushless DC Motor
Effective Tonearm Length	230 mm
Overhang	15 mm
Phono Output	Yes
Line Output	Yes
Auto Lift	Yes
USB Output	No
Bluetooth	No
Power Supply	AC 110 - 240 V, 50/60 Hz
Turntable Speeds	33 1/3, 45, 78 rpm
Tonearm Type	Static Balance
Cartridge	Ortofon 2M Red
Dimensions	453 x 169 x 372 mm
Signal-to-Noise Ratio	78 dB
