Technics SL-1500C User Manual

35

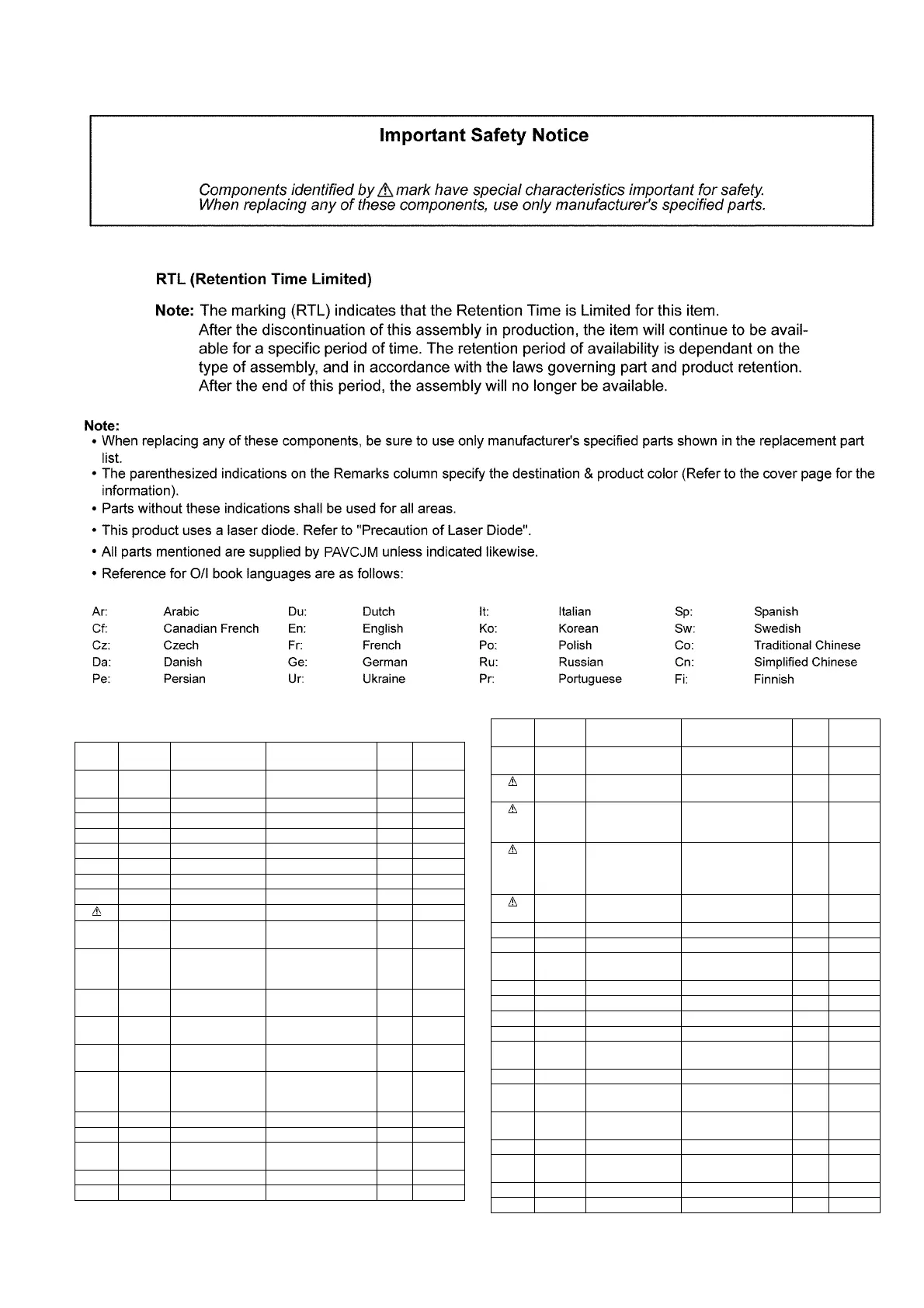

10.2. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 L6YZYJ000004 DC MOTORS 1
3 RHD30111-31 SCREW 20
4 RHD30248 SCREW 3
7 TEFX5020 ARM WIRE CUSHION 2
8 TEKX119 TONEARM COVER 1
9 THTF021J SPECIAL SCREW 25
11 TKFE46402 JACK HOLDER 1
12 TKFE46501 AC HOLDER 1
13 TTD0014 OPERATION UNIT 1 EB-K
EG-K
13 TTD0011 OPERATION UNIT 1 EG-S
PP-S
EB-S
15 TXJ/05BC5E 5PIN WIRE (SMPS-
MAIN )
1
16 TXJ/11BC5E 11PIN WIRE
(MOTOR -MAIN)
1
21 TZTYL01BE7E TONE ARM ALL
UNIT ASS'Y
1 EB-K
EG-K
21 TZTYL01BC4E TONE ARM ALL
UNIT ASS'Y
1 EG-S
PP-S
EB-S
21-1 RMH0241-K1 QUEUING KNOB 1
21-2 RYQ1630-K1 ARMREST ASSY 1
21-3 TZSM04009 ARM REST SCREW
KIT
1
22 TYL0296 INSULATOR UNIT 4
23 XTB3+8JFJK SCREW 21
26 TZTKF01BC3E GROUND PLATE
WITH TERMINAL
1
28 TZTKF02BE7E TOP PANEL ASS'Y
(BLACK)
1EB-K
EG-K
28 TZTKF01BC2E TOP PANEL ASS'Y
(SILVER)
1EG-S
PP-S
EB-S
30 TZTKF01BE7E BOTTOM CABINET
ASS'Y
1EB-K
EG-K
EG-S
EB-S
30 TZTKF01AH8U BOTTOM CABINET
ASS'Y
1PP-S
31 XTB3+8JFJ SCREW 1
32 XYN3+C8FJK SCREW 2
36 TESD162 CENTER SHAFT
SPRING
1
37 TESD167 SUPPORT SPRING A 1
38 TESD168 SUPPORT SPRING B 1
39 TKKH51381 LOCK SUPPORT 1
40 TKKH51451 LOCK SUPPORT B 1
41 TSXM548 4PIN WIRE (MAIN
- PHONO OUT)
1
42 TTD0015 HINGE PLATE UNIT 2
43 TXJ//3BE8E 3PIN WIRE (MAIN
- PHONO OUT)
1
44 TXJ/11BE8E 11PIN WIRE (MAIN
-PANEL)
1
45 XTW26+6SFJ SCREW 3
PACKING MATERI-
ALS
P1 TPCE30701 PACKING CASE 1 EB-K
P1 TPCE30401 PACKING CASE 1 EG-S
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks

Technics SL-1500C Specifications

General

Drive Method	Direct Drive
Wow and Flutter	0.025% WRMS
Platter	Aluminum Die-cast
Phono EQ	Built-in
Weight	9.9 kg
Motor	Brushless DC Motor
Effective Tonearm Length	230 mm
Overhang	15 mm
Phono Output	Yes
Line Output	Yes
Auto Lift	Yes
USB Output	No
Bluetooth	No
Power Supply	AC 110 - 240 V, 50/60 Hz
Turntable Speeds	33 1/3, 45, 78 rpm
Tonearm Type	Static Balance
Cartridge	Ortofon 2M Red
Dimensions	453 x 169 x 372 mm
Signal-to-Noise Ratio	78 dB
