Technics SL-1500C User Manual

30

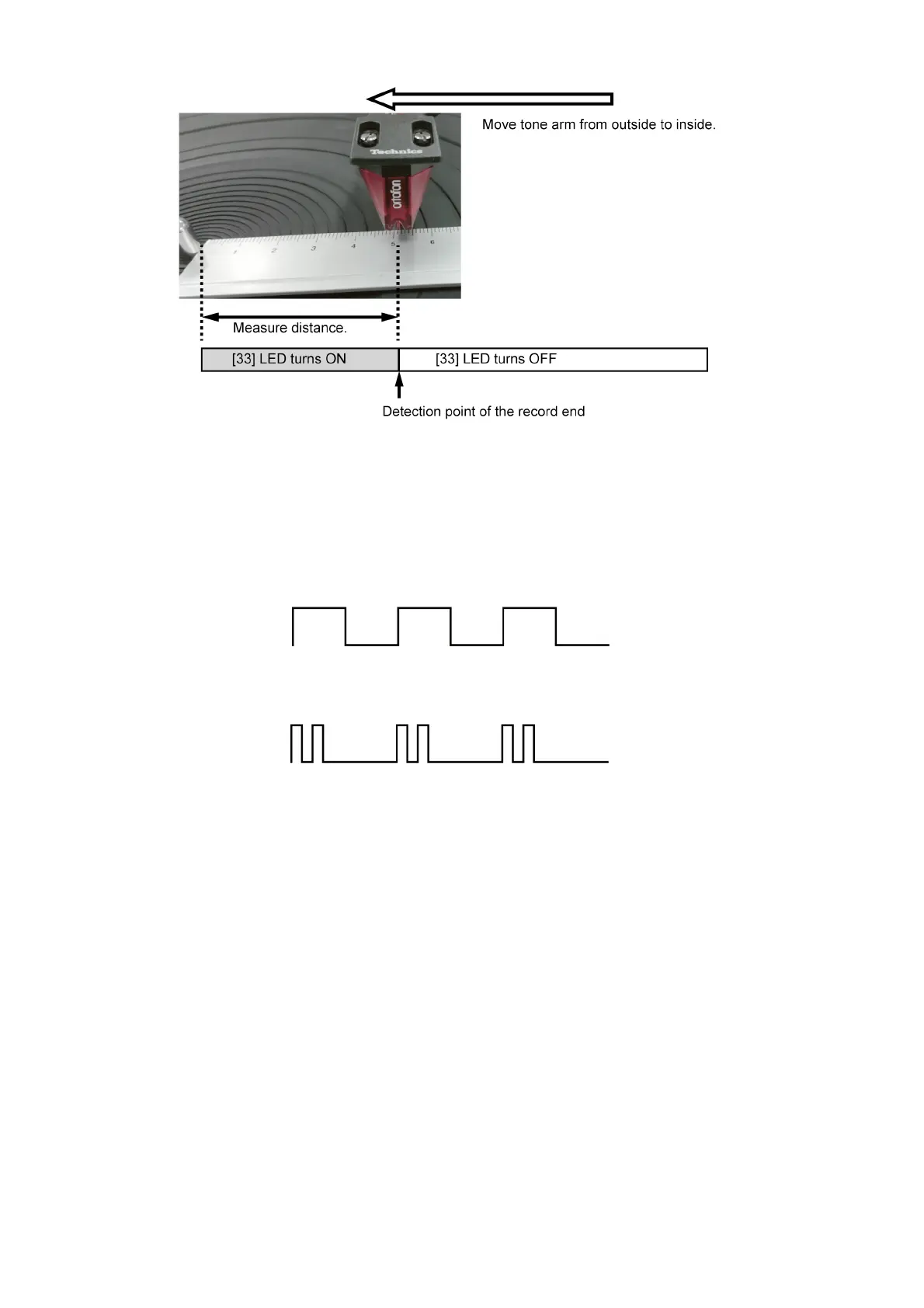

4. Set auto lift-up point according to the distance.
Distance : 51.5 mm to 56.5 mm ---- position 1
Distance : 57.0 mm to 60.5 mm ---- position 2
To confirm setting 1 or 2,
press Speed select button [33] briefly. [33]LED flashing shows which postion is setting for 3 seconds as follows.
Position 1 : 1 sec. period Duty 50% (500ms:ON, 500ms:OFF --- 3 times)
Position 2 : 2 flashing within 1 second (100ms:ON, 100ms:OFF, 100ms:ON, 700ms:OFF --- 3 times)
To set the posittion 1 or 2 according to the distance, press and hold the Speed select button [33] for 3 seconds or more.
5. Exist the Adjustment Mode and Service Mode.
Turn the power "OFF" with [POWER SW], or pull out the AC cord.

Technics SL-1500C Specifications

General

Drive Method	Direct Drive
Wow and Flutter	0.025% WRMS
Platter	Aluminum Die-cast
Phono EQ	Built-in
Weight	9.9 kg
Motor	Brushless DC Motor
Effective Tonearm Length	230 mm
Overhang	15 mm
Phono Output	Yes
Line Output	Yes
Auto Lift	Yes
USB Output	No
Bluetooth	No
Power Supply	AC 110 - 240 V, 50/60 Hz
Turntable Speeds	33 1/3, 45, 78 rpm
Tonearm Type	Static Balance
Cartridge	Ortofon 2M Red
Dimensions	453 x 169 x 372 mm
Signal-to-Noise Ratio	78 dB
