Technogym Glidex 600 XTPRO - 7.9. Disassembling the Handlebar

GLIDEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 7.10
7.9. DISASSEMBLING THE HANDLEBAR

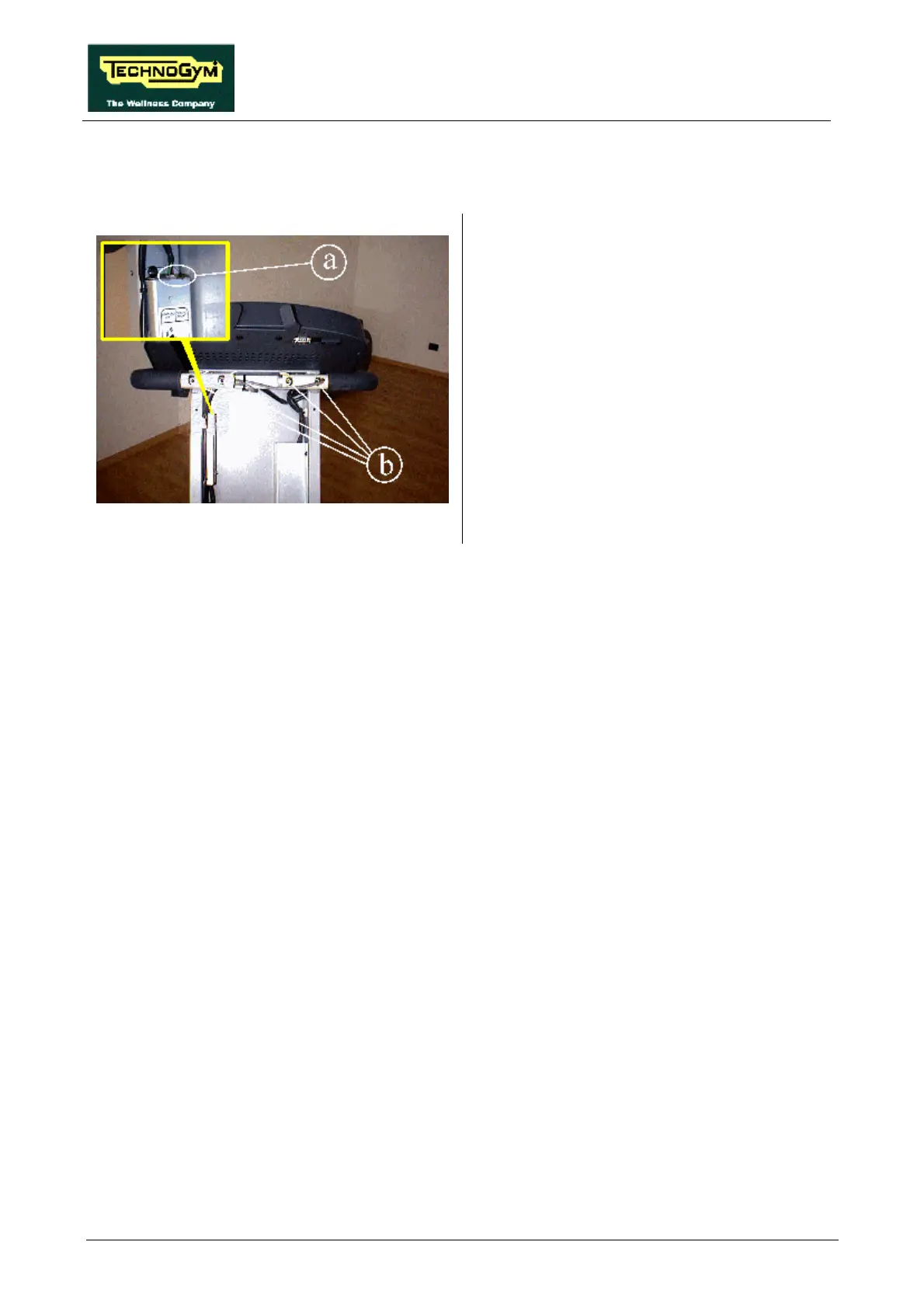

Figure 7.9-1
Carry out the procedure described in paragraph
7.7. “Disassembling the upright guard”.
1. Disconnect the 2 connectors a.
2. Unscrew the 4 screws b using an 8-mm hex
T wrench.
3. Remove the HANDLEBAR.
To reassemble the HANDLEBAR, carry out the
above steps in reverse order.
