GLIDEX 600 XTPRO: Service & Maintenance Manual - rev. 1.1
Page 8.2
8.2. BELT TENSION

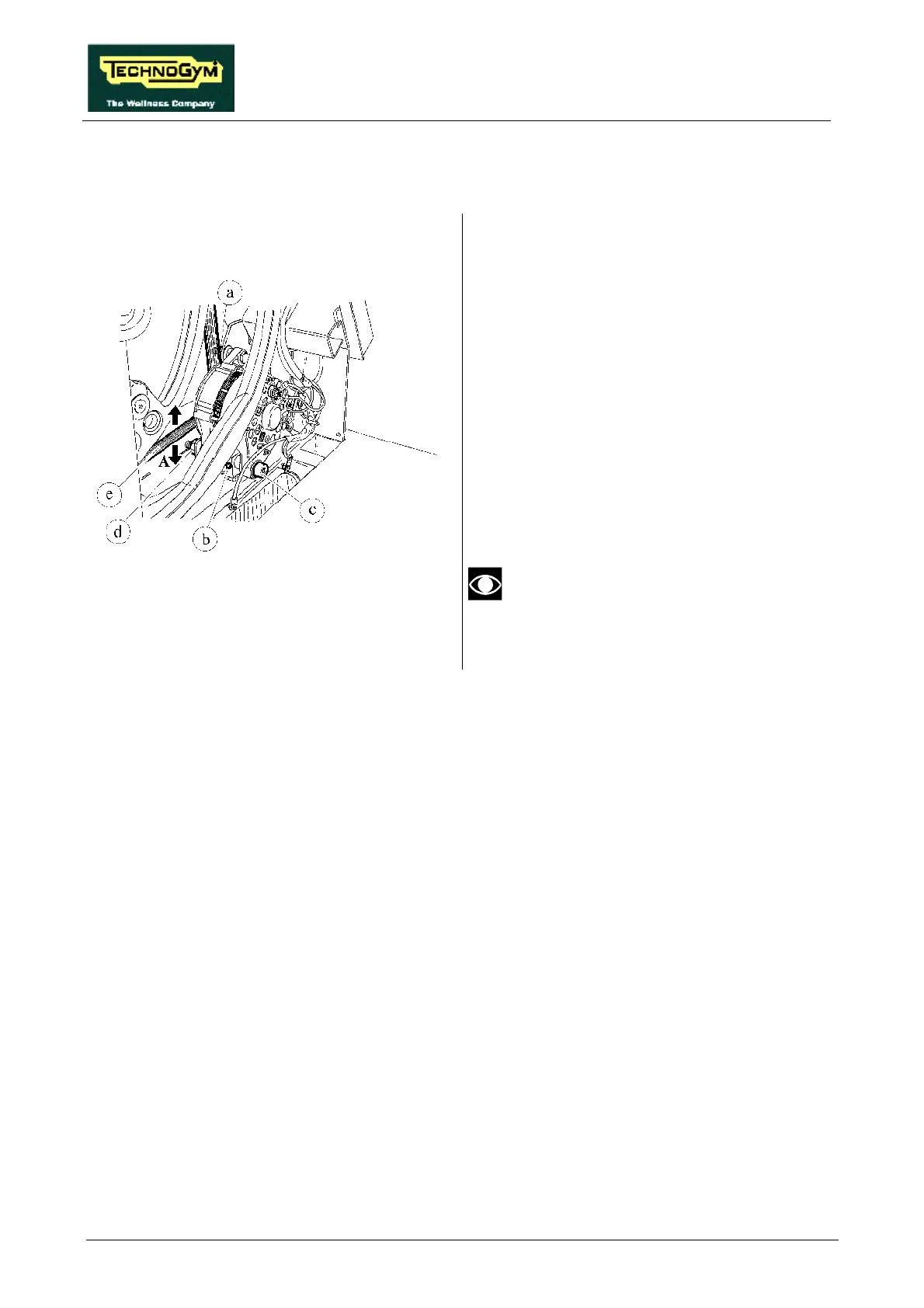

Figure 8.2-1
Carry out the procedure described in paragraph
7.8. “Disassembling the frame guards”.
1. Back off the nut a using a 17-mm wrench.
2. Back off the dowel b of alternator pivot c.
3. Back off the lock nut d of the alternator pivot
e using a 19-mm wrench.
4. Rotate the alternator on its pivot in such a
way that, at point A, the belt e has a vertical
play of approximately 1 cm.
5. After completing the adjustment, lock down
what previously backed off.
After completing this procedure, check
the belt alignment, as described in
paragraph 8.1. .
