7.16. DISASSEMBLING THE PEDAL LEVER GROUP

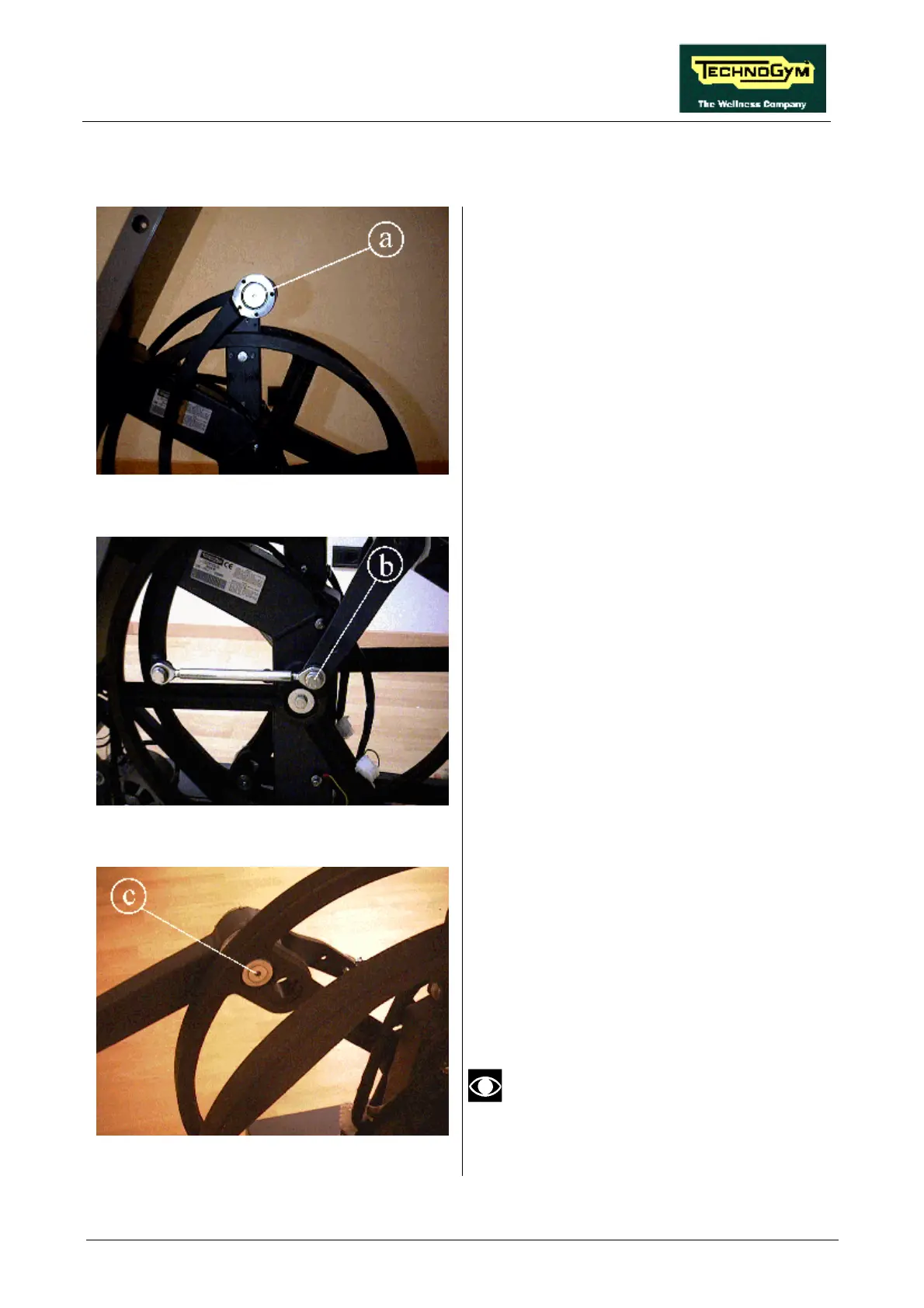

Figure 7.16-1
Carry out the procedures described in paragraphs
7.8. “Disassembling the frame guards” and 7.15.
“Disassembling the rear cover”.
On each side:
1. Back off the screw a using a 6-mm hex T
wrench.
Figure 7.16-2
2. Back off the screw b using a 17-mm wrench.
3. Remove the lever clutch group by pulling it
outward.
Figure 7.16-3
4. Back off the screw c using a 6-mm hex T
wrench.
5. Remove the footboard support group by
pulling it outward, using an extractor tool or
with a pointed tool and rubber hammer.
To reassemble the PEDAL LEVER GROUP,
carry out the above procedure in reverse order.
Before reassembling the PEDAL
LEVER GROUP lubricate the plastic
spacers with a thin film of chain grease.
