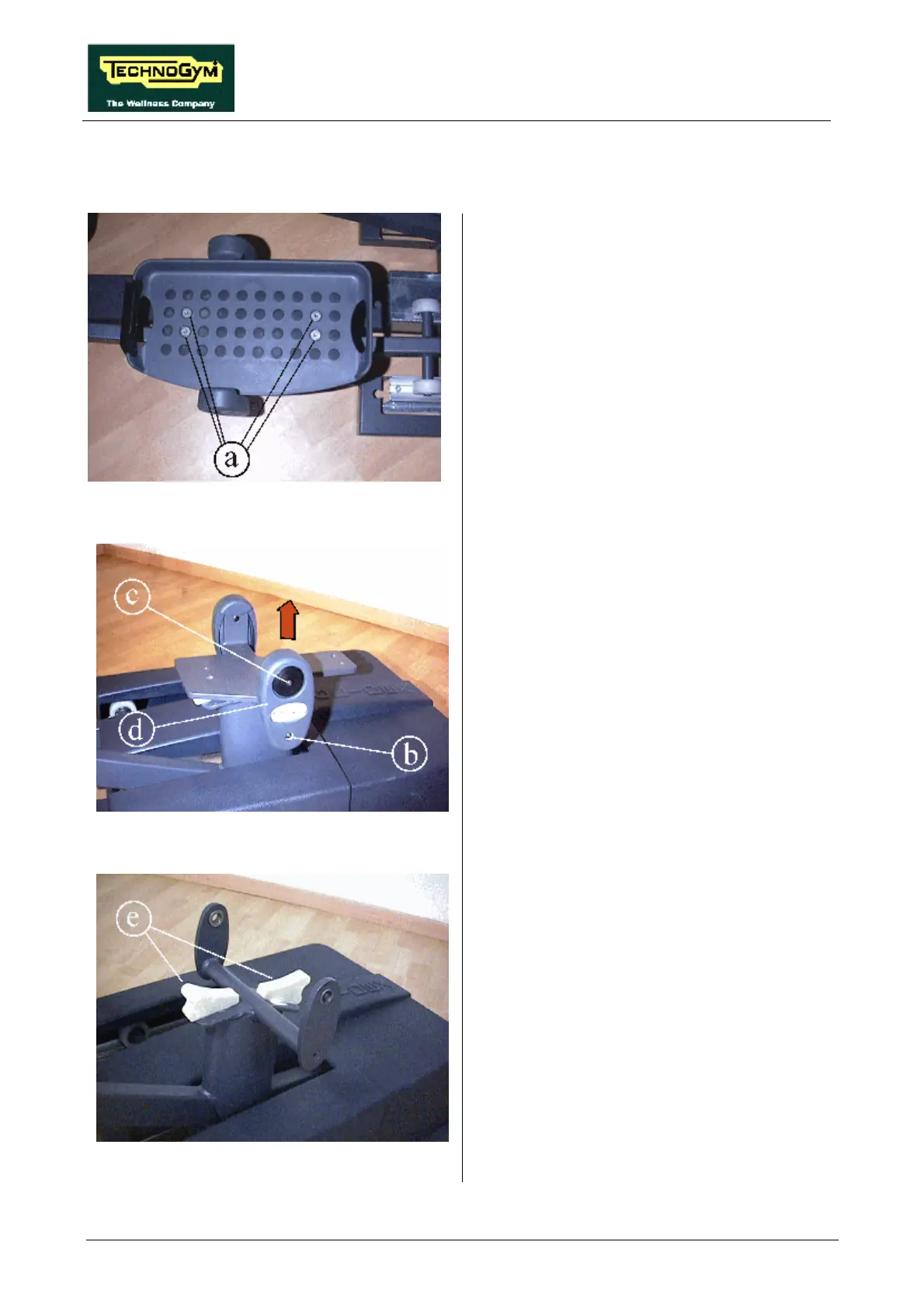

7.17. DISASSEMBLING THE PEDALS GROUP
Figure 7.17-1
For each PEDAL:
1. Unscrew the 4 screws a fixing the PEDAL to
the pedal lever using a 5-mm hex T wrench.
2. Remove the PEDAL.
Figure 7.17-2
On each side of the PEDAL:
3. Back off the screw b using a 3-mm hex T
wrench.
4. Back off the screw c using a 6-mm hex T
wrench.
5. Remove the rubber guard d.
6. Remove the PEDAL SUPPORT by pulling
upward.
Figure 7.17-3
7. It is now possible to access the shock
absorber e.
To reassemble the PEDALS GROUP, carry out
the above steps in reverse order.
