1.9.2 Adjusting the cable tension
In the Alpha, Beta, Gamma, Delta and Omega modules to access the frame, remove the side
or intermediate protective panel: follow the instructions described in the assembly manual, in
reverse order.
In the One module, to access the frame, remove the back protective panel: follow the instructions
described in the assembly manual, in reverse order.

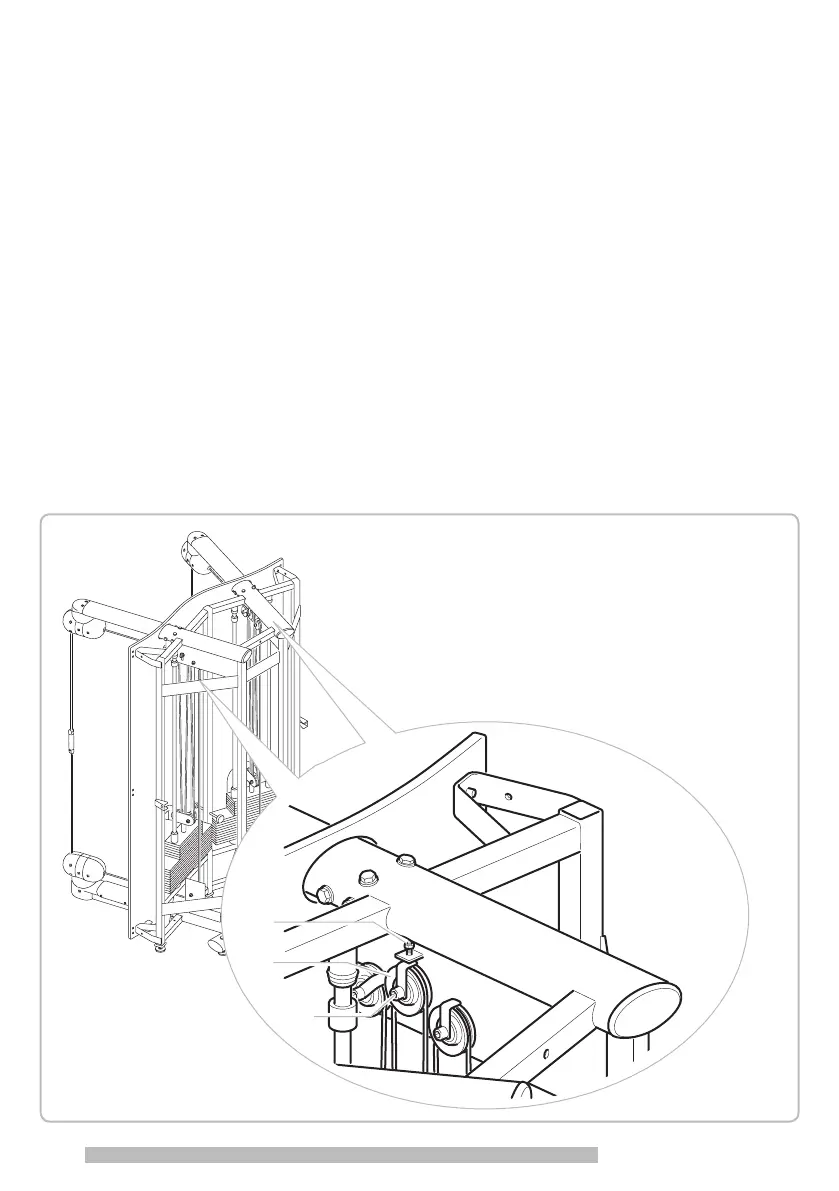

To adjust the cable tension:
- slacken screw (a) to free the pulley (b);
- turn nut (c) to adjust the cable. In the Omega and One modules loosen the lock nut (d) before
turning the nut (c);
- retighten screw (a);
- in the Omega and One modules, at the end of the operation, tighten the lock nut (d) on the
nut (c).
If the cable is too tight, the crosspiece will stay up and the holes will not be aligned with the ones
in the weight stack plates; check that the pin fits properly into all the weight stack holes.
