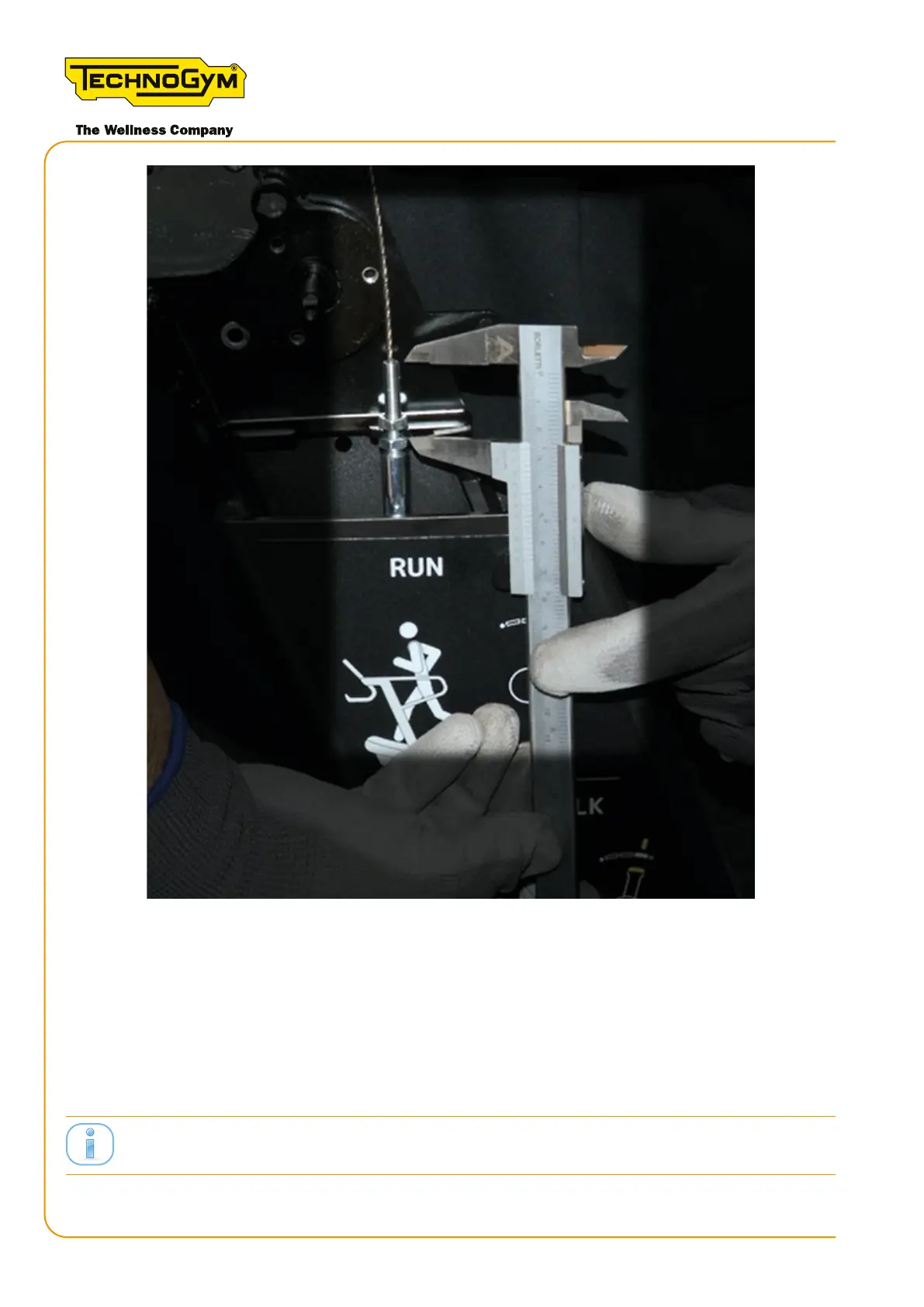

Figure 57 - Brake cable reference 2
2. Remove the upper and lower cable register.
3. Remove the brake cable.
7.7. 3 DISMANTLING THE BRAKE
1. Remove the front tread belt footboard.
Mark the screws according to their size.
2. Remove the guard next to the upright, on the inner side of the equipment.
Skillmill
Technical Service Guide - Rev. 3.5
Page 102
