7.9 SLAT
7.9.1 DISASSEMBLING THE SLATS
1. Remove the 4 self-locking nuts (3) and the 2 plates (2).
2. It is now possible to remove the slat.
2
3
3
2

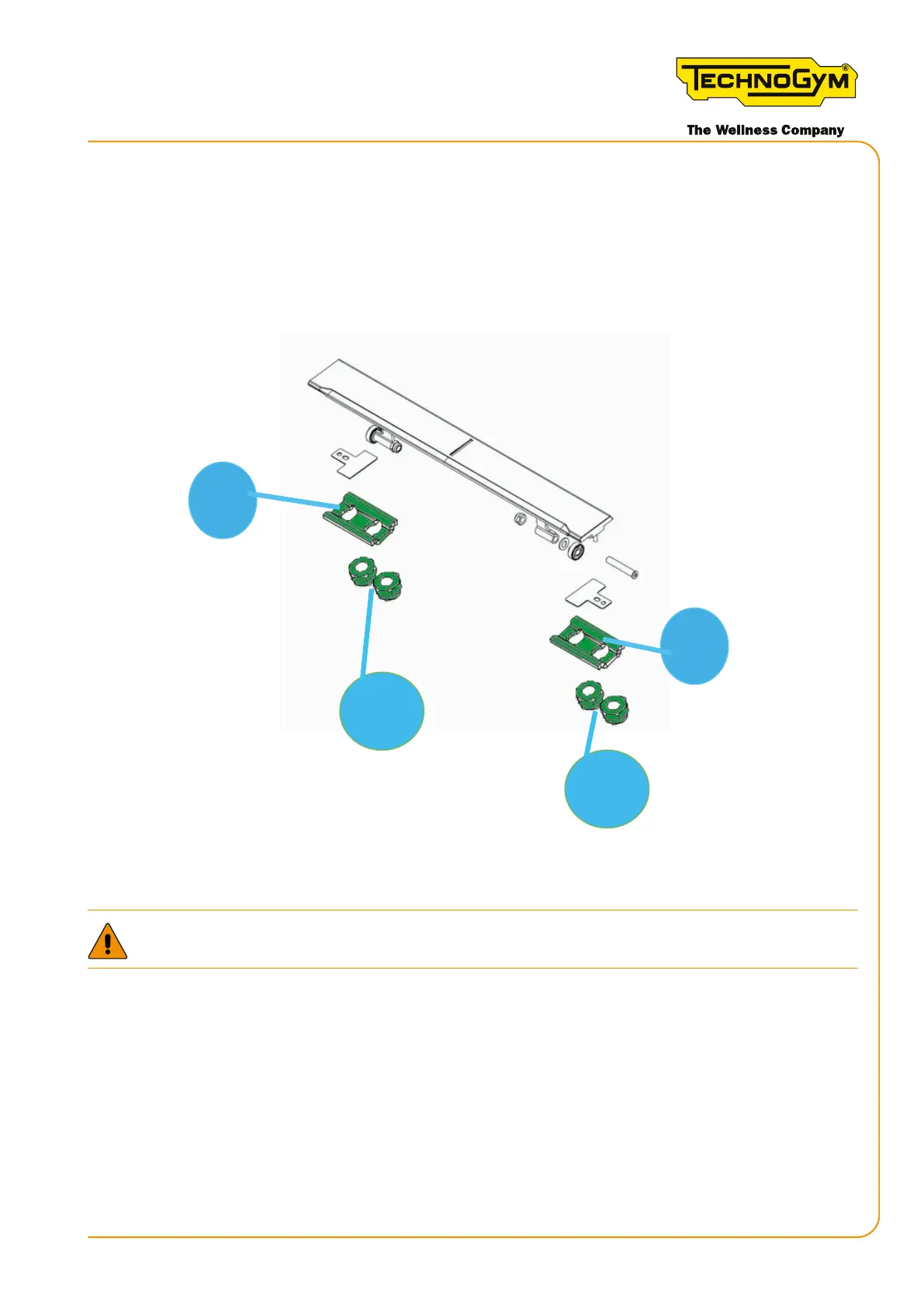

Figure 58
CAUTION: the maximum number of slats that can be removed is 13.
