Technogym Skillmill - 7.16 SNAP RING ON THE INSIDE AND OUTSIDE OF THE RH AND LH BELT PULLEYS, BOTH ON THE FRONT AND REAR SHAFTS

7.16 SNAP RING ON THE INSIDE AND OUTSIDE OF THE RH AND LH BELT
PULLEYS, BOTH ON THE FRONT AND REAR SHAFTS
A snap ring has been added on the inside of the RH and LH belt pulleys, both on the front and rear
shafts.

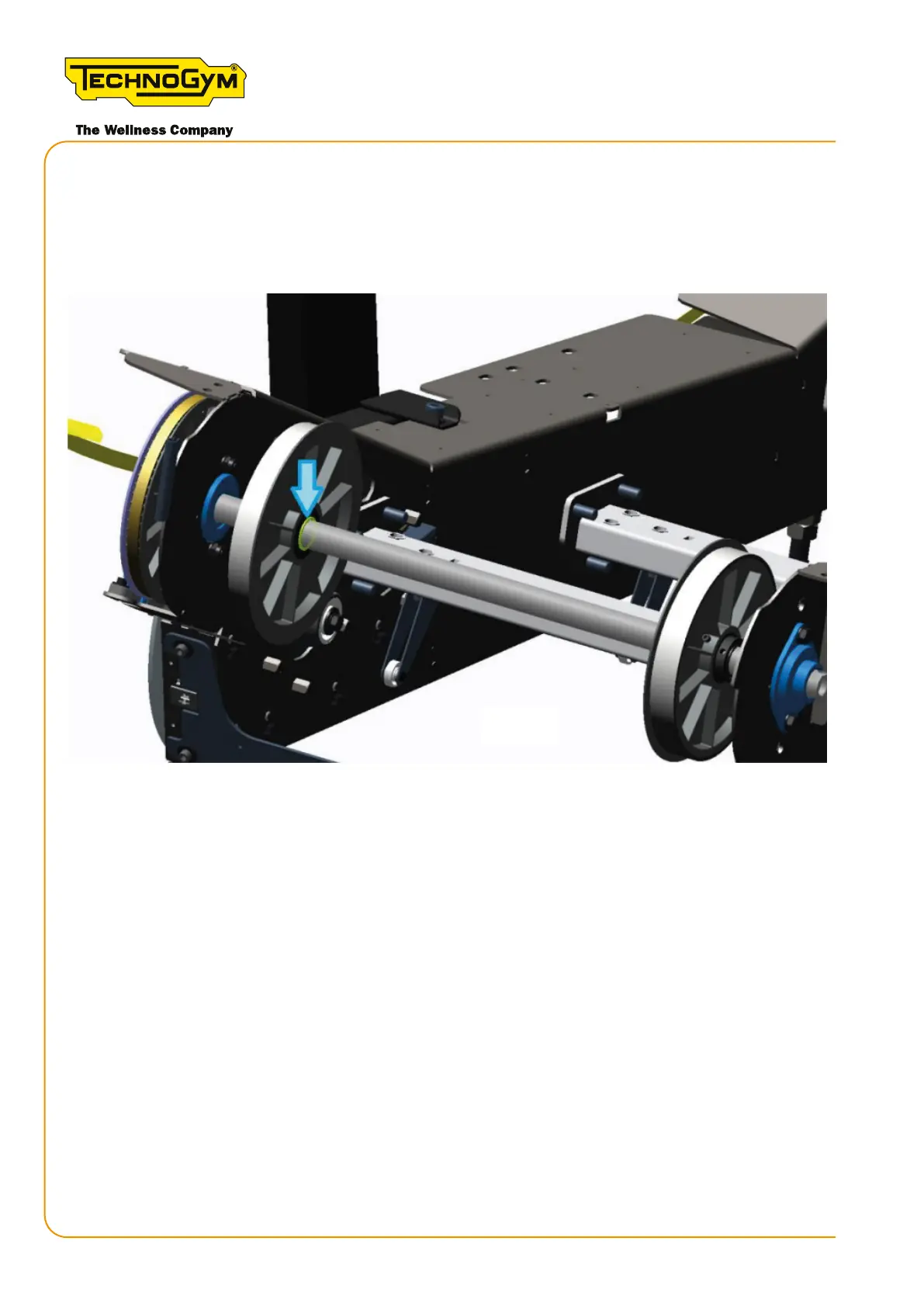

Figure 68 - Detailed view of the snap ring inside the right pulley
Skillmill
Technical Service Guide - Rev. 3.5
Page 118
