7.17 POSITIONING THE BRAKE UNIT STOP SCREW
The position of the stop screw must never be changed.
To be safe, mark the reference of the screw position.
If the stop screw must be removed, use the cable regulation as the reference (unless the regulation
has been changed).
The stop screw is positioned correctly if the screw touches the frame slightly when pulling the
lever all the way back. This means that the screw is resting up against the frame, with less than one
180° degree turn to fully tighten it.

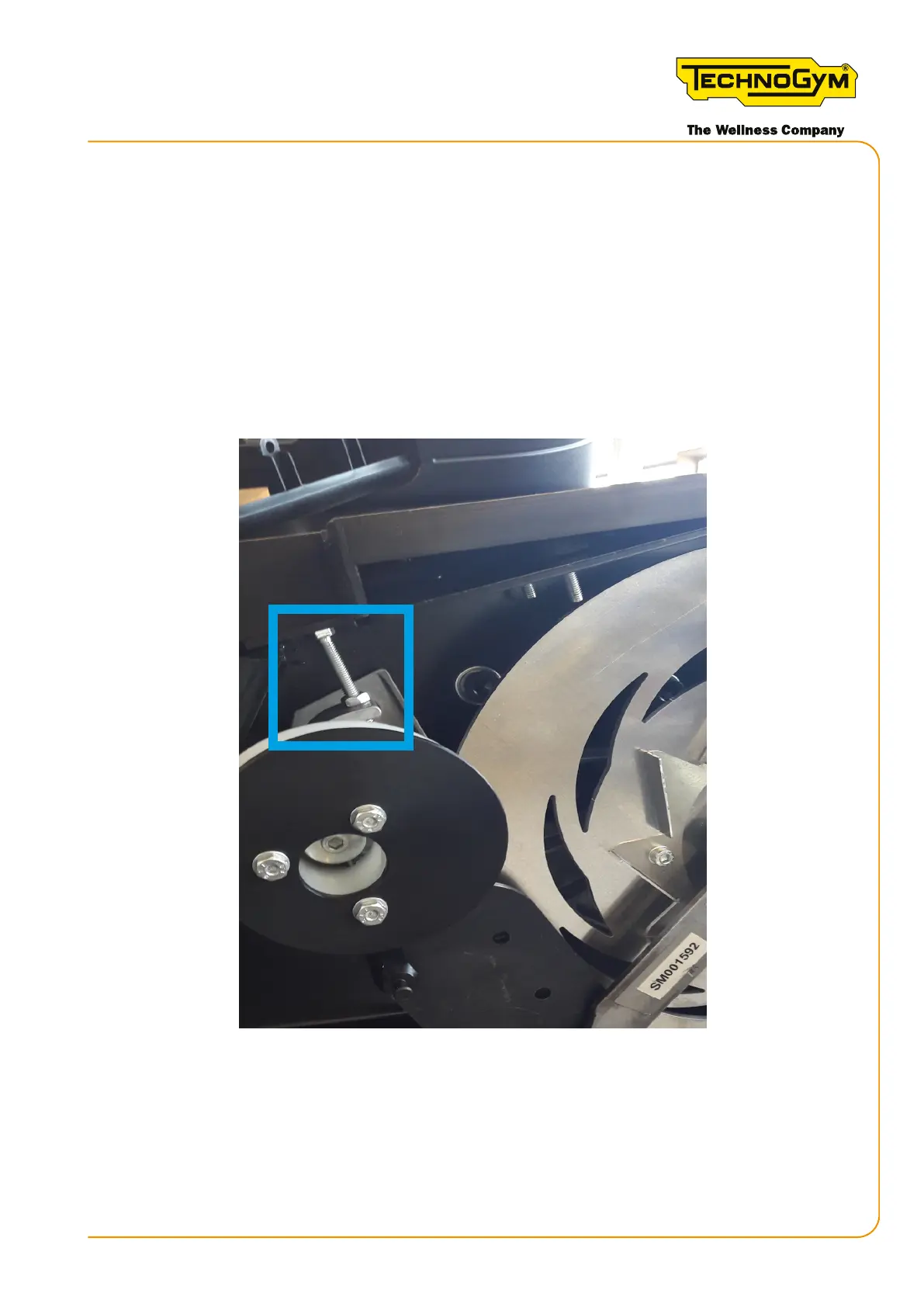

Figure 69
Skillmill:
Technical Service Guide - Rev. 3.5
