6a. Insert the clamp (1)ushagainsttheright-handbearingonthefrontshaft,ontheleft
side of the equipment, as shown below.
Thepartoftheclampwiththebordermustbeushagainstthebearing.
Add a medium threadlocker (e.g. Loctite 243) on the thread of the screws. Use a 4mm hex wrench
and tighten gradually, alternating between the two right and left screws, until they are fully
tightened.

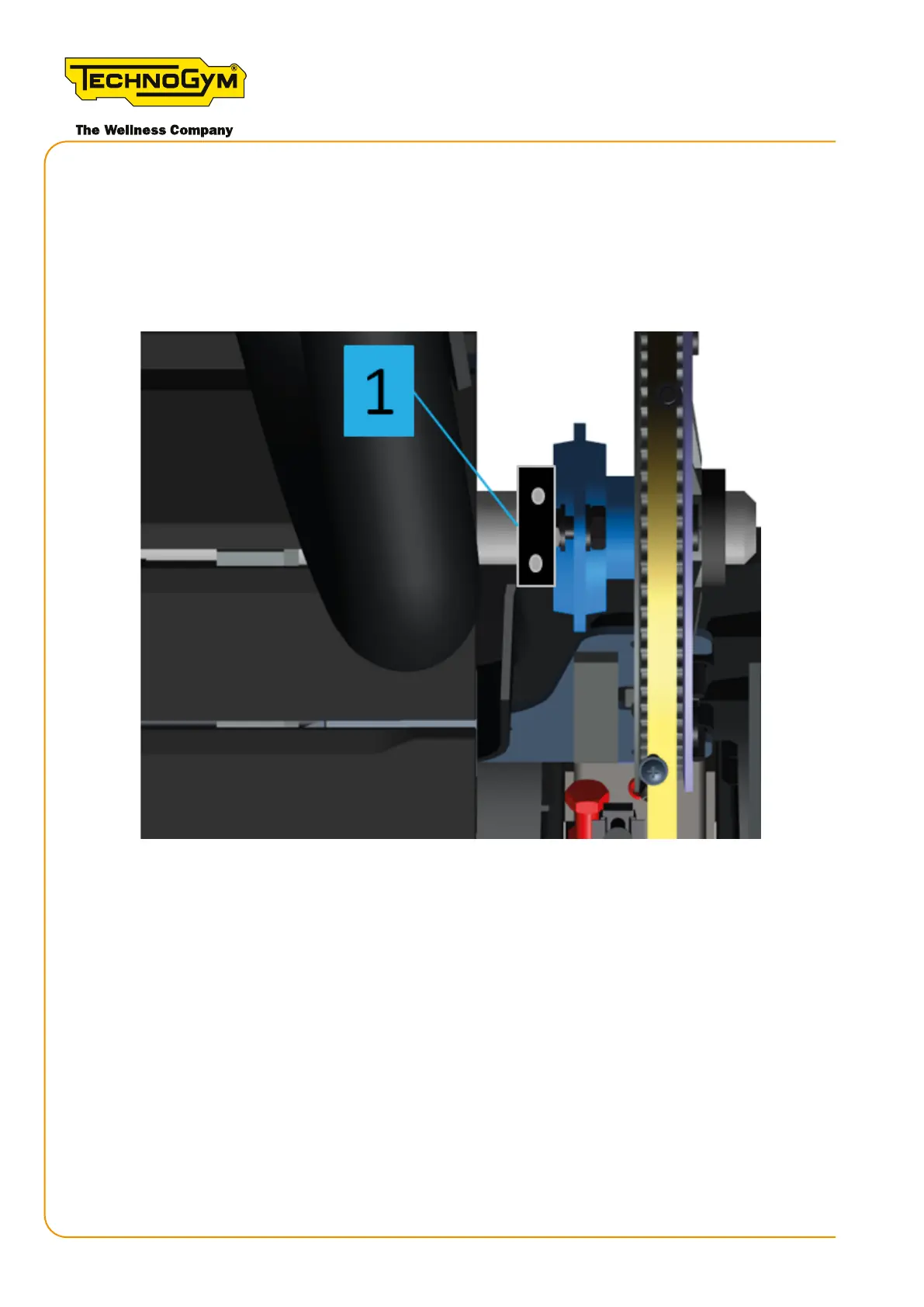

Figure 51 - xing the clamp (1) on the front shaft, right side of the equipment - front view
