• Nominal PWM switching frequency
1
: 20 kHz
• Nominal update frequency for torque loop
1
: 10 kHz
• Update frequency for speed/position loop
2
: 1-10 kHz
• Continuous output current: 8A
RMS
• Peak output current: 16.5A
• Logic power supply: 12÷48 V
DC
• Motor power supply: 12÷80 V
DC
• Minimal load inductance: 50μH @12V, 200 μH @ 48 V, 330 μH @80V
• Operating ambient temperature
3
: 0-40°C
2.3. Supported Motor-Sensor Configurations
The IDMx40 drives support the following configurations:
1. Position, speed or torque control of a brushless AC rotary motor with an incremental
quadrature encoder on its shaft. The brushless motor is vector controlled like a permanent
magnet synchronous motor. It works with sinusoidal voltages and currents. Scaling factors
take into account the transmission ratio between motor and load (rotary or linear). Therefore,
the motion commands (for position, speed and acceleration) expressed in SI units (or
derivatives) refer to the load
4
, while the same commands, expressed in IU units, refer to the
motor.

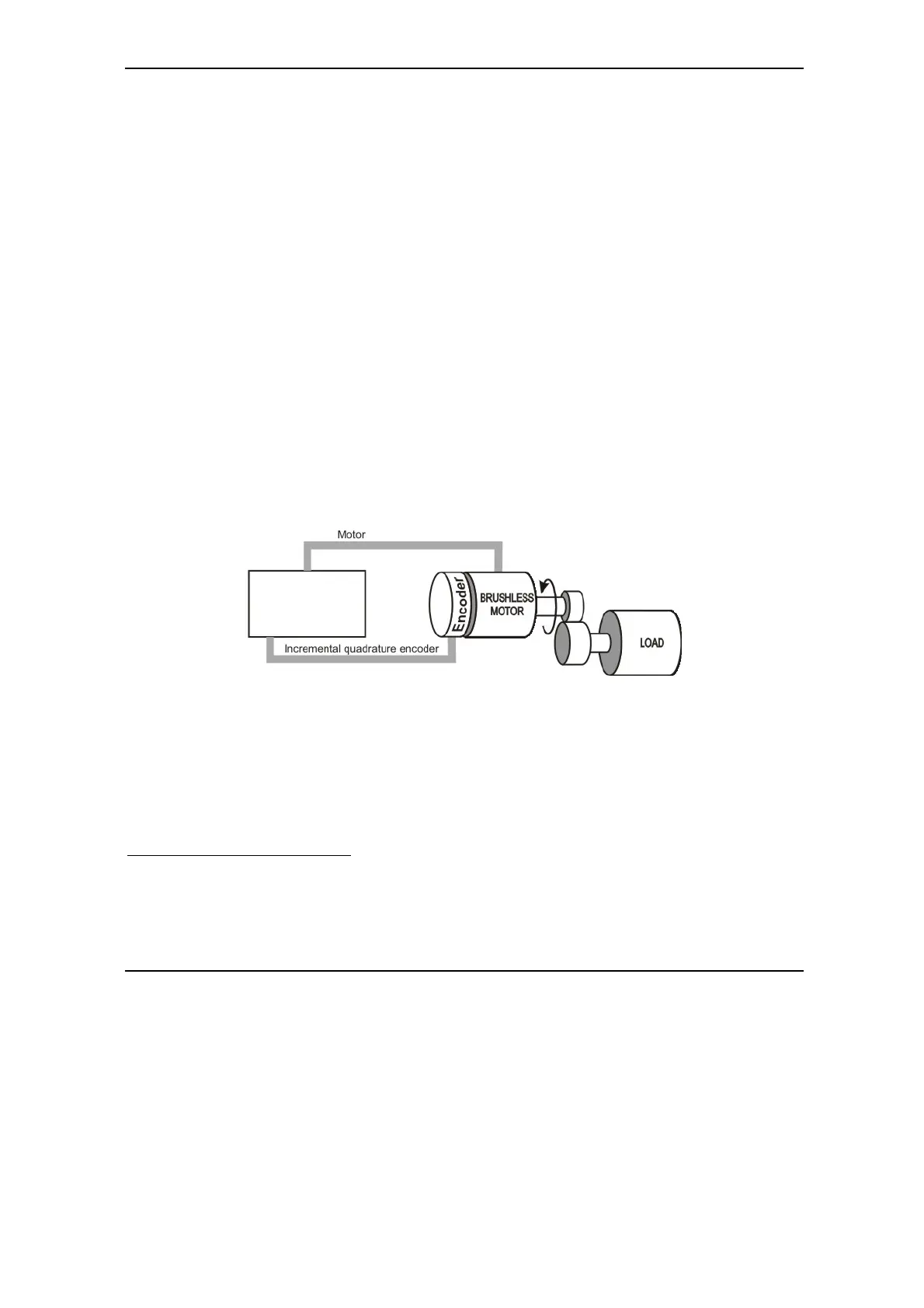

Figure 2.1. Brushless AC rotary motor. Position/speed/torque control. Quadrature encoder on
motor.
2. Position, speed or torque control of a brushless AC linear motor with an incremental
quadrature encoder
5
. The brushless motor is vector controlled like a permanent magnet
synchronous motor. It works with sinusoidal voltages and currents. Scaling factors take into
account the transmission ratio between motor and load (rotary or linear). Therefore, the
1
Nominal values cover all cases. Higher values are possible in specific configurations. For details contact Technosoft
2
1-2kHz cover all cases. Higher values equal with torque loop update frequency are possible with quadrature encoders
3
For higher ambient temperatures, contact Technosoft to get de-rating information
4
Motion commands can be referred to the motor by setting in EasySetUp a rotary to rotary transmission with ratio 1:1
5
Available only for the IDMx40 CAN executions
