© Technosoft 2011 19
IDMx40 Technical Reference
3. Step 1. Hardware Installation
3.1. Mounting
Cooling Requirement
The IDMx40 drive was designed to be cooled by natural convection. It can be mounted
horizontally (with label upwards) inside a cabinet (see Figure 3.1), with motor wires going down.

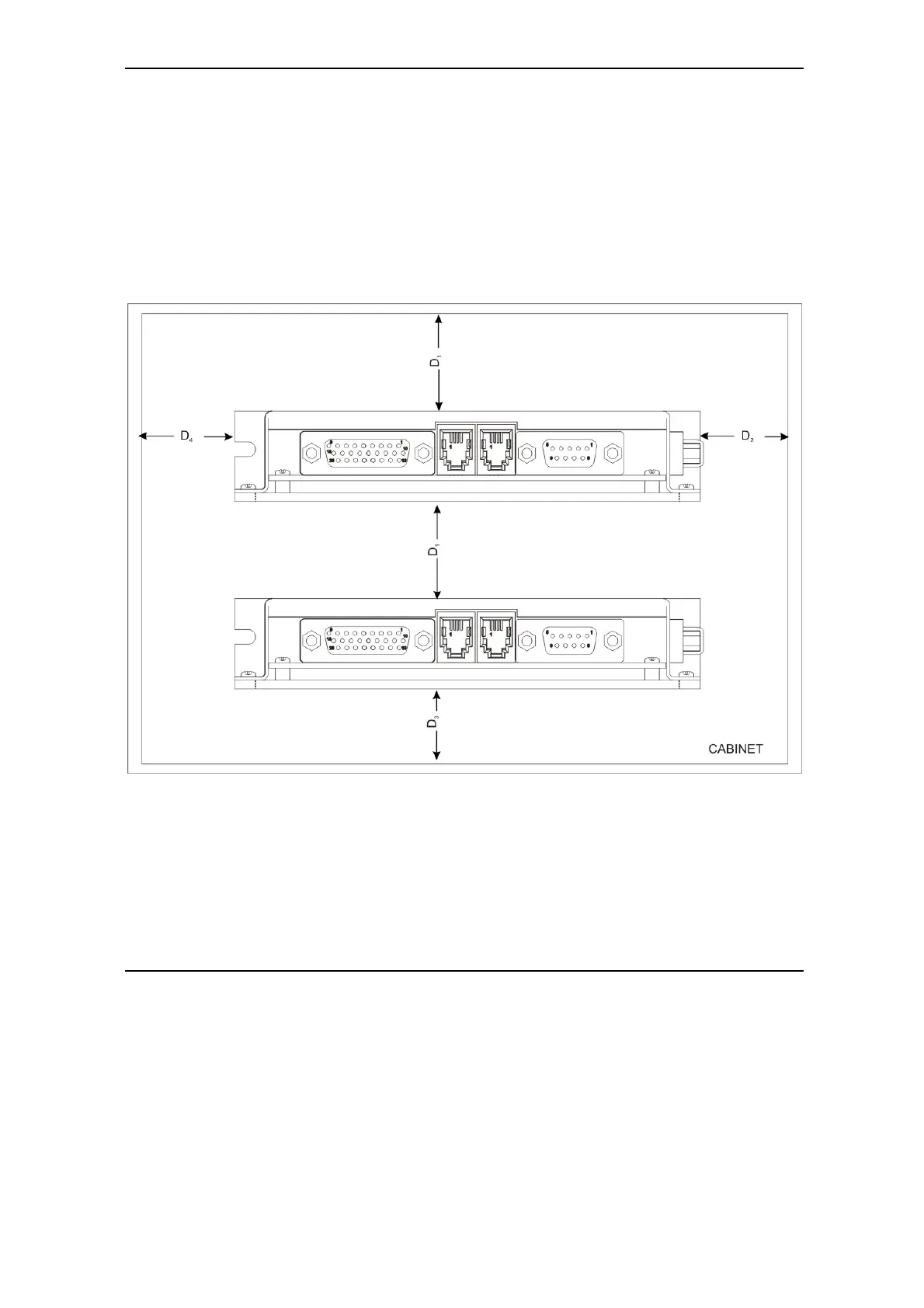

Figure 3.1. Recommended mounting of IDMx40 in a cabinet
