communication error message tells you the error type. In this case, return to the Communication |
Setup dialogue, press the Help button and check troubleshoots
Remark: When first started, EasySetUp tries to communicate via RS-232 and COM1 with a drive
having axis ID=255 (default communication settings). If your drive is powered with all the DIP
switches OFF and it is connected to your PC port COM1 via an RS-232 cable, the communication
shall establish automatically. If the drive has a different axis ID and you don’t know it, select in the
Communication | Setup dialogue at “Axis ID of drive/motor connected to PC” the option
Autodetected.
4.2.2. Setup drive/motor

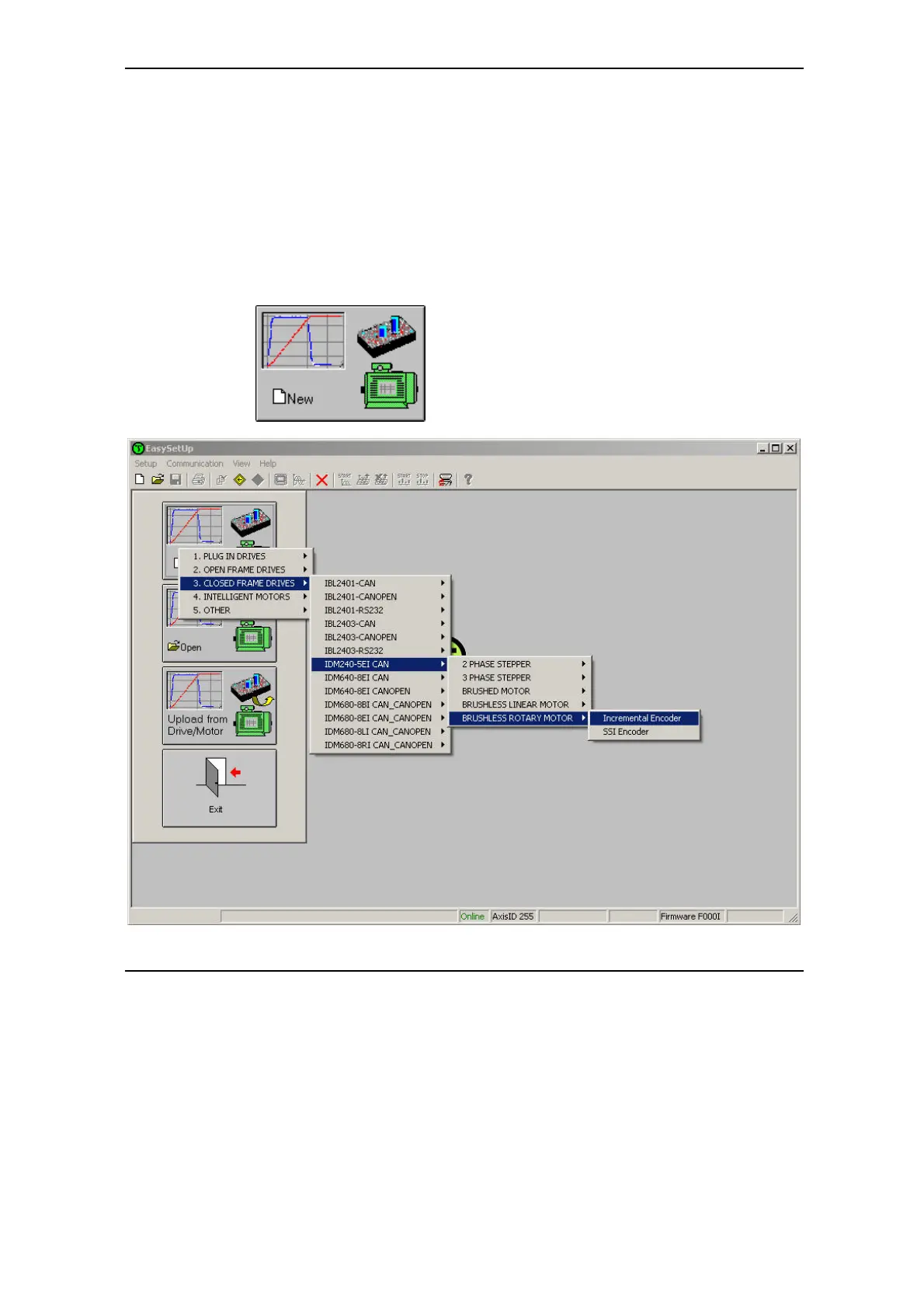

Press New button and select your drive type.
