7. Memory Map
IDMx40 has 2 types of memory: a 32K×16 zero-wait-state SRAM and an 8K×8 serial E
2
ROM.
TML Program
E2ROM
4000h
E2ROM
Program
memory
5FFFh
SRAM Data
SRAM Program
6000h
Not available
7FFFh
0000h
8K x 8
serial SPI-E2ROM
1FFF
8800h
Data memory
for data
acquisition
8270h
Not used as
Program
memory
8000h
SRAM
Data memory
Not used as
Data memory
FFFFh
Program
memory
for TML
programs
FFFFh
SRAM
Program
memory
FFFFh

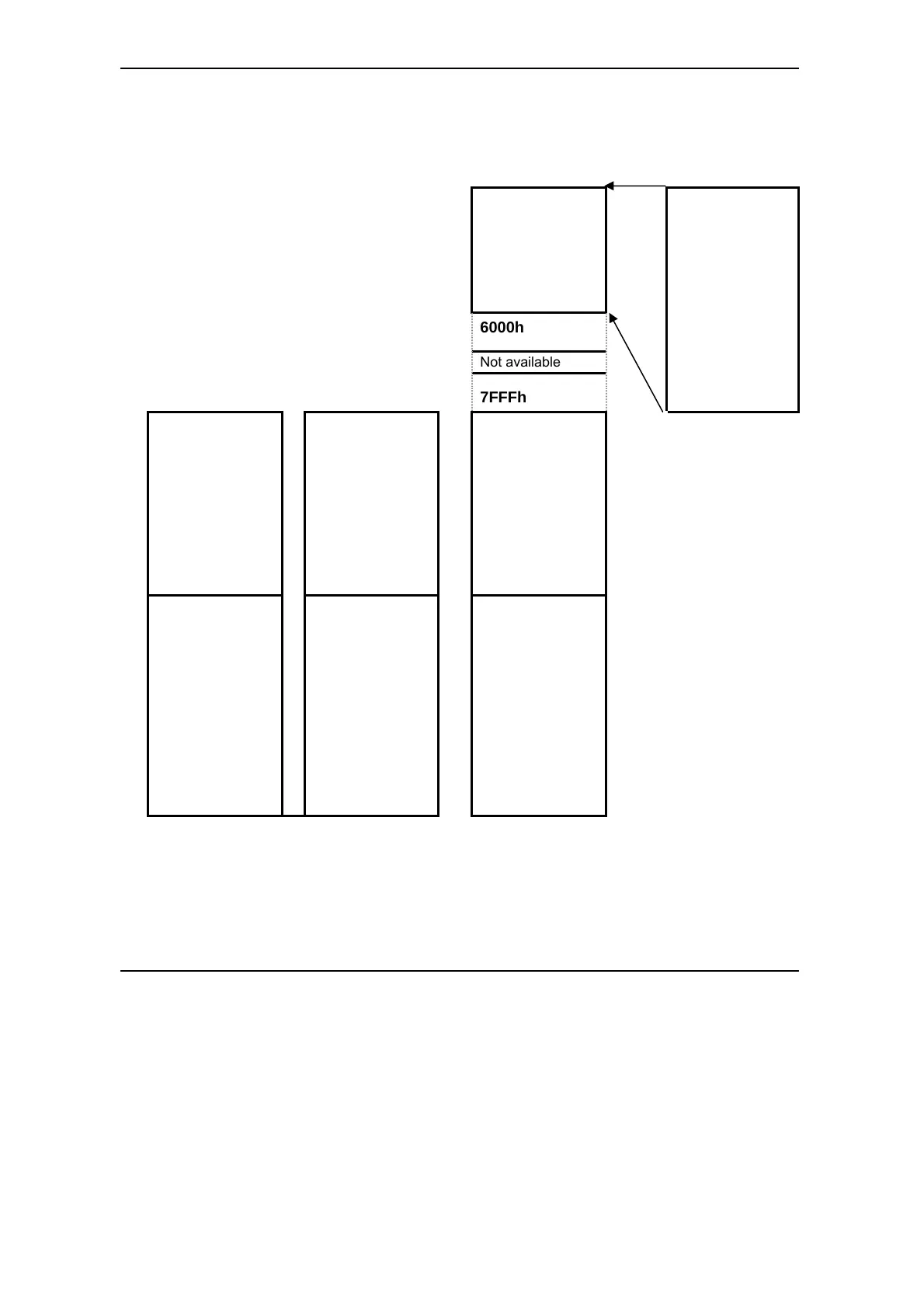

Figure 7.1. IDMx40 Memory Map
The SRAM memory is mapped both in the program space and in the data space within the
address range: 8000h to 0FFFFh. The data memory can be used for real-time data acquisition
and to temporarily save variables during a TML program execution. The program space can be
