© Technosoft 2011 18 IDMx40 Technical Reference

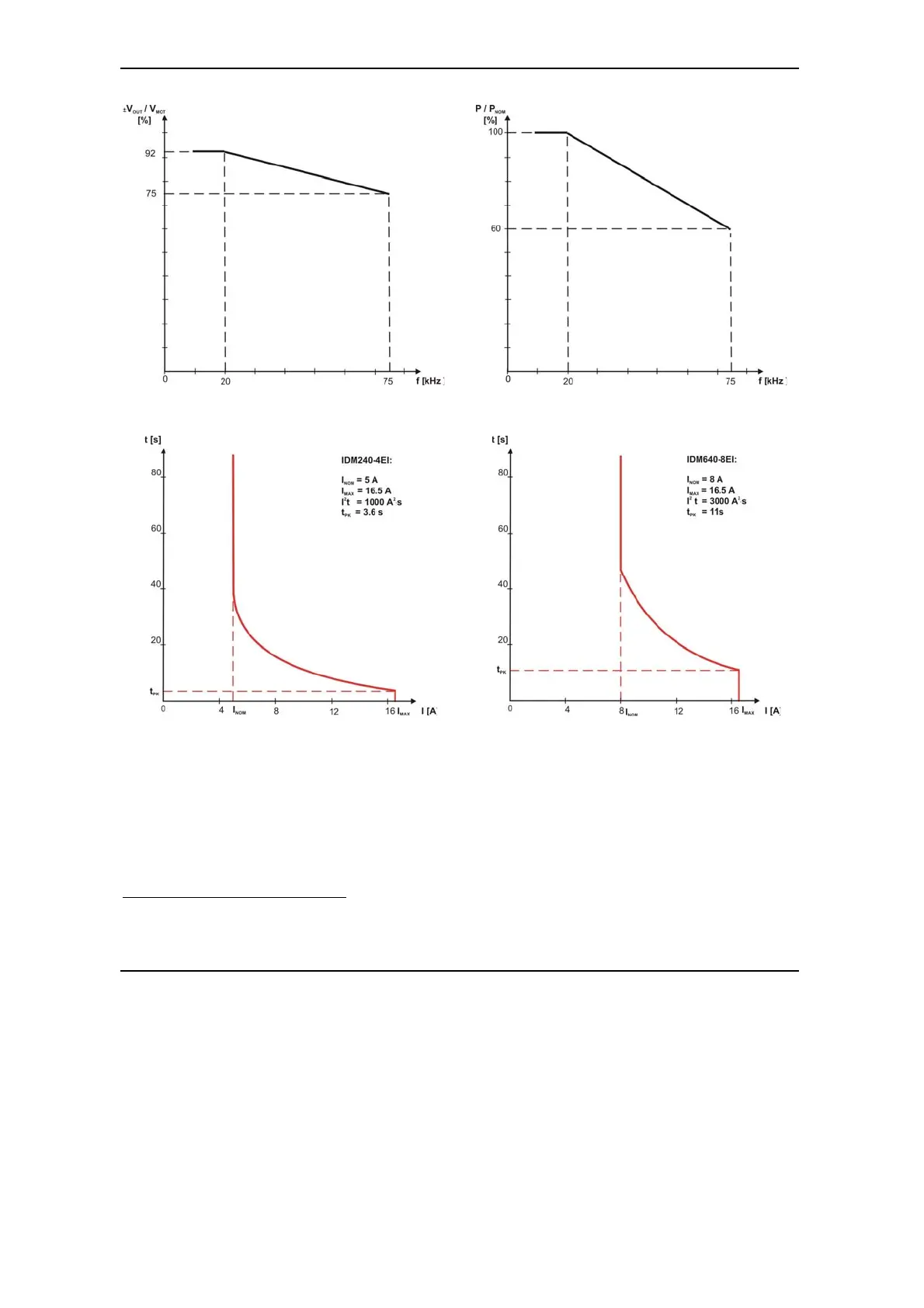

Figure 2.16. Output Voltage De-rating with PWM
frequency
20
Figure 2.17. Power De-rating with PWM
frequency
21
Figure 2.18. Over-current diagram for IDM240 Figure 2.19. Over-current diagram for IDM640
20
V
OUT
– the output voltage, V
MOT
– the motor supply voltage
21
P
NOM
– the nominal power
