PLACARDS & MARKINGS

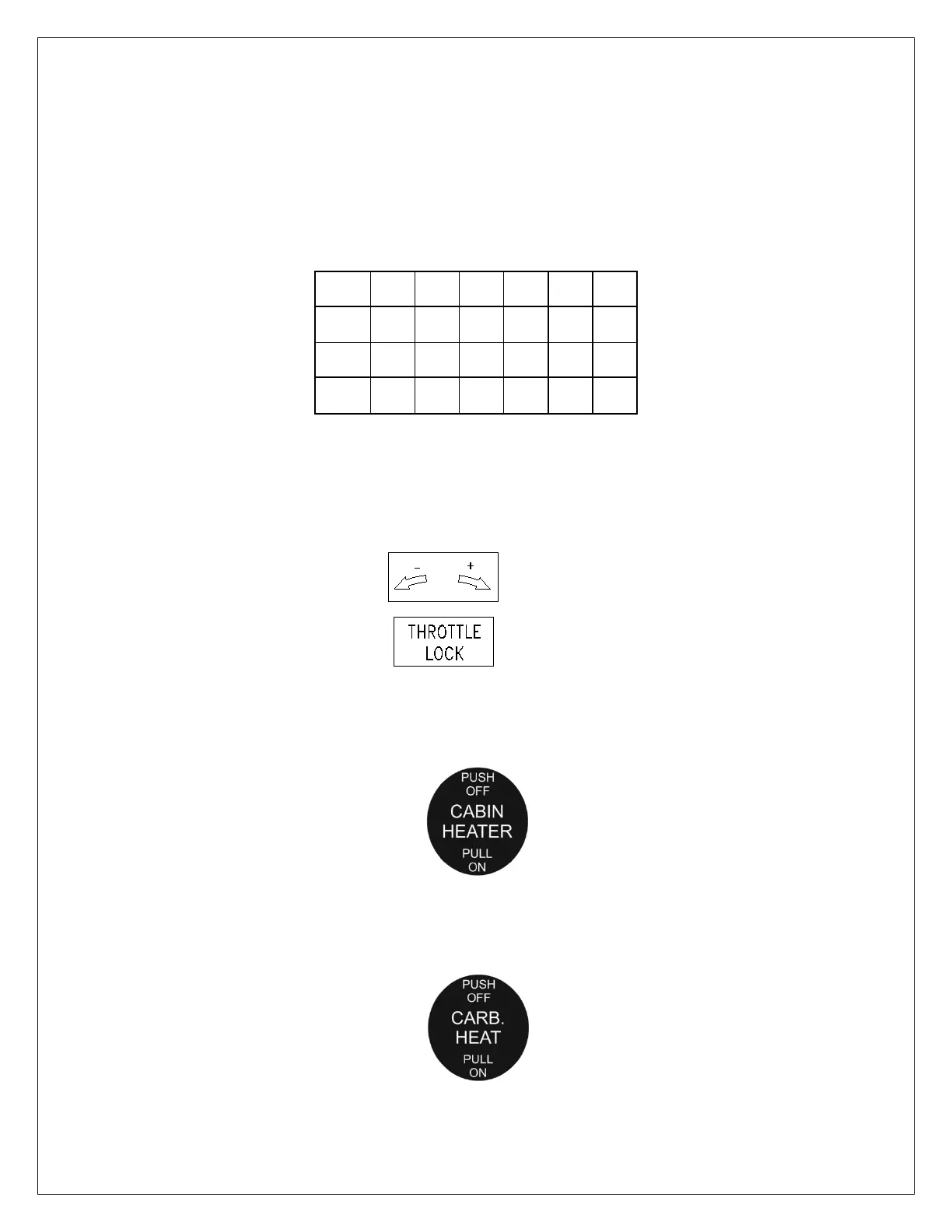

8 Placards and Markings
8.1.1 Magnetic compass compensation table
To compensate the deviation errors of the magnetic compass, the following correction table is located just below the
compass:
For
N
30
60
E
120
150
Steer
For
S
210
240
W
300
330
Steer
DATE
RADIO ON
AIRPATH
8.1.2 Engine throttle friction
A throttle friction lock is located on the side of central to keep the desired throttle friction setting.
The following placard (23x11 upper; 21x11 lower) is positioned near the friction lock knob.
8.1.3 Cabin heat
The cabin heat (if available) control knob is located on central tunnel panel area just near the throttle control. The cabin’s
heat control is marked with this placard (20x11mm).
8.1.4 Carburetor heat (If installed)
The carburetors heat control knob is located on the instrument panel central area near the central engine’s throttle. In
correspondence of it is located the following placard (20x11mm).
