64

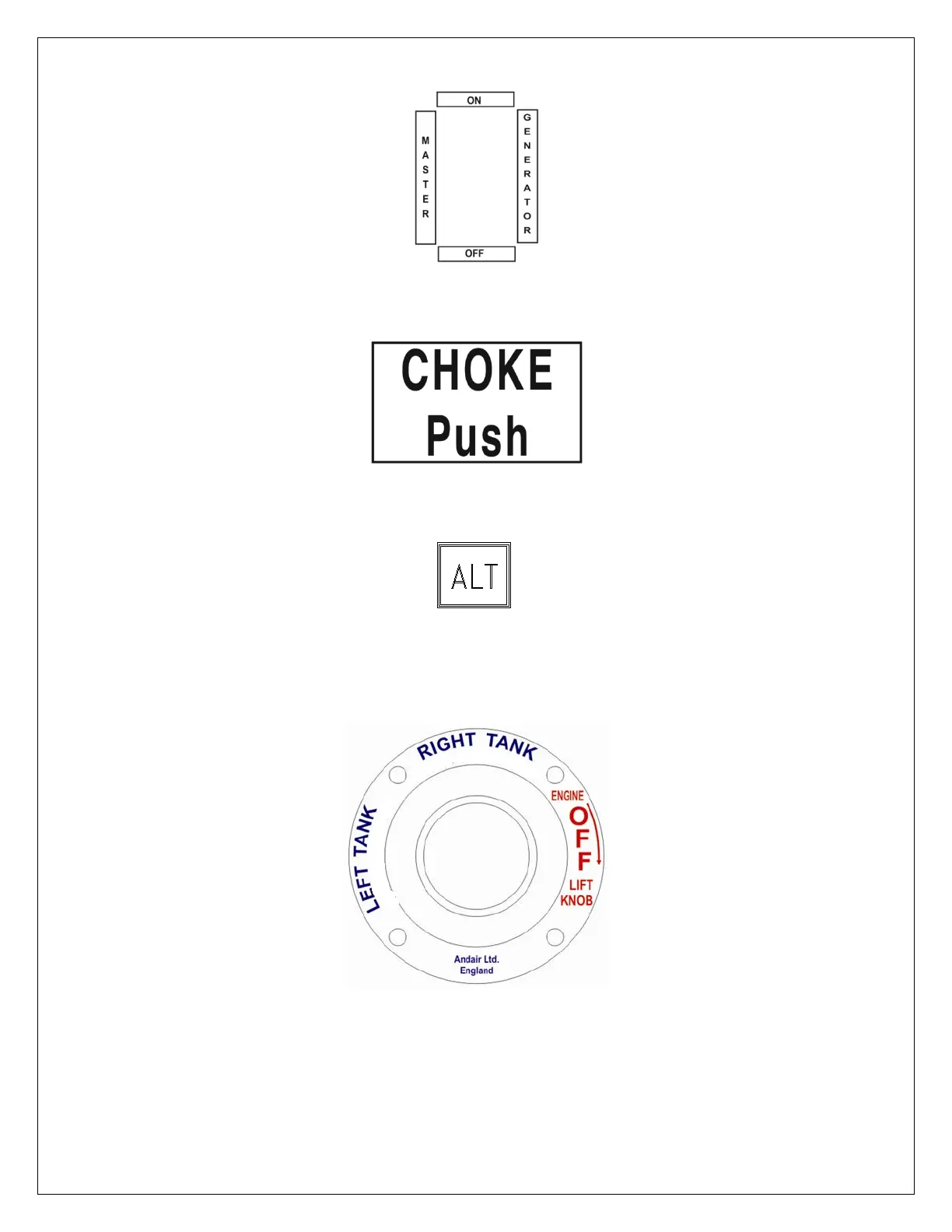

8.1.9 Choke
Located above the choke lever:
8.1.10 Generator light
A generator warning light is located on the upper/right side of the instrument panel and it is marked with the following
label.
8.1.11 Fuel selector valve
Fuel shutoff valve is located on central section of cockpit panel. It controls the fuel coming from the tanks making the pilot
able to switch LEFT TANK, RIGHT TANK and OFF.
8.1.12 Baggage compartment
A placard (30x50mm) indicating the maximum weight and to fasten the baggage’s retain harnesses, is present visible into
the baggage compartment.
