8.1.5 Trim switch
The trim shunt control is located on the upper left area of the instrument panel alternatively allocating trim control to either
Rh or Lh control stick. The following placard (25x14mm) is positioned just above of it.
8.1.6 Breakers

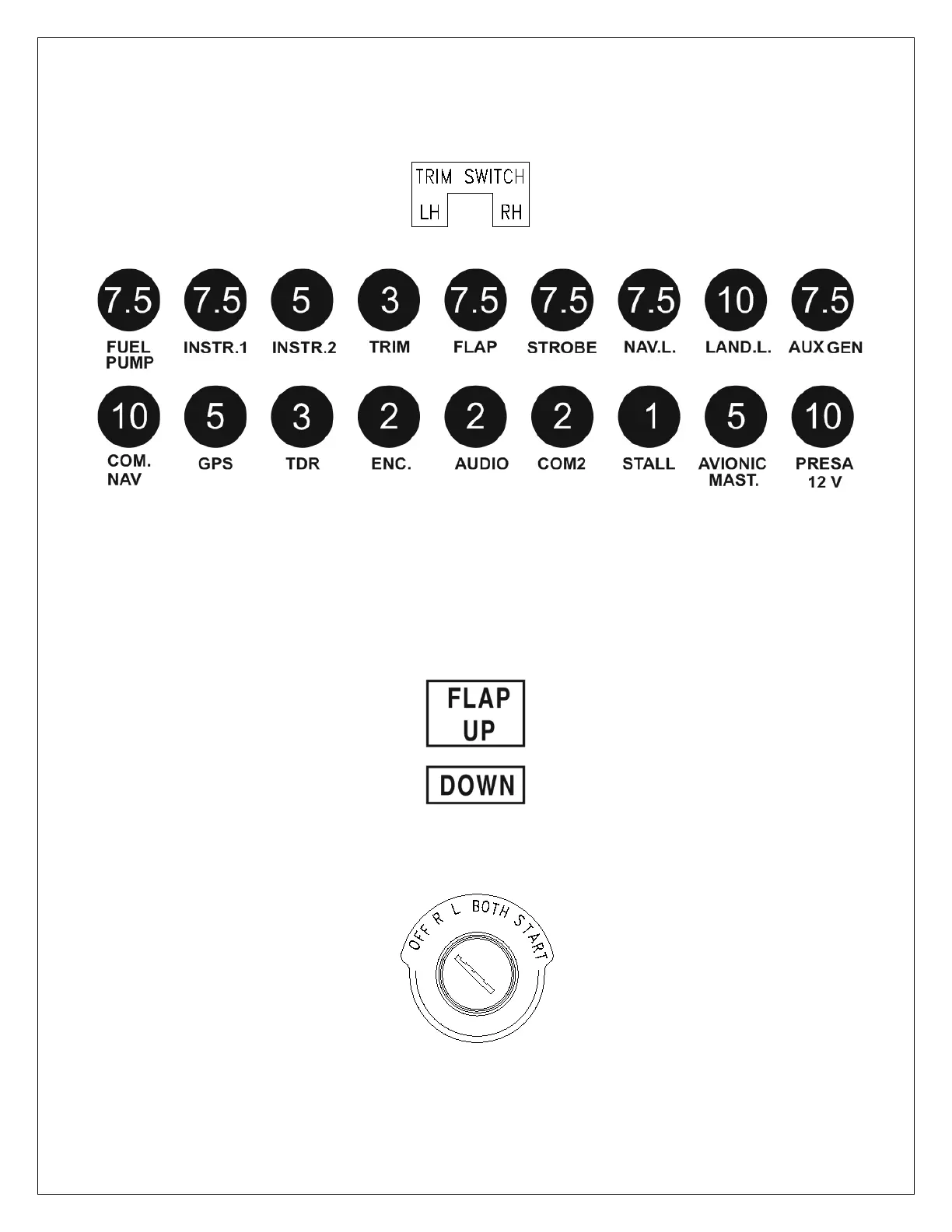

Breakers are located on the lower/right side of the instrument panel and each fuse is individually marked as follows:
Depending on the specific equipment installed on the a/c the type and position of the breakers could vary from the above
shown.
8.1.7 Flaps
‘The flap control switch is located on the lower portion of the instrument panel. The following placards (15x10mm the
upper, 6x15mm the lower) are just next to it.
8.1.8 Generator, Master, Starter
On the lower part of the instrument panel are located, in order:
The starter, marked with a placard:
For the generator and master switches:
