TECO JSDAP Series Simplified Manual

25

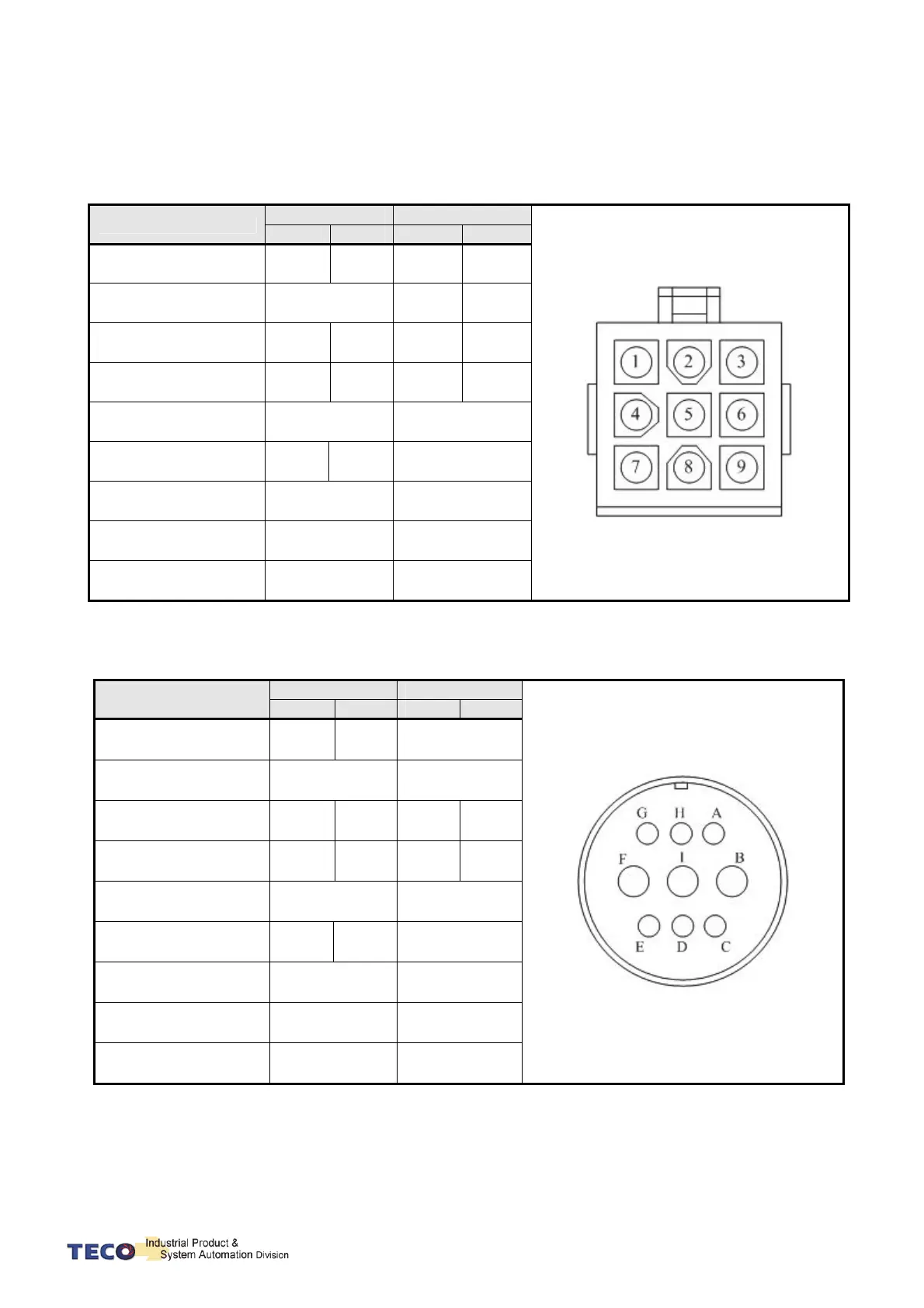

 Table of Motor-Encoder Wiring
 For 15 bits / 17 bits Encoders
(1) General Joint:
Terminal Symbol
Color Signal
15bits 17bits 15bits 17bits
1 Red White +5V VCC
2 Black 0V GND
3 Brown -- VB+ --
4
Brown/
Black
-- VB- --
5 Blue SD
6
Blue/
Black
Purple /SD
7 -- --
8 -- --
9 Shield FG
(2) Military Specifications Joint
Terminal Symbol
Color Signal
15bits 17bits 15bits 17bits
B Red White +5V
I Black 0V
A Brown -- VB+ --
C
Brown/
Black
-- VB- --
H Blue SD
D
Blue/
Black
Purple /SD
G -- --
E -- --
F Shield FG
