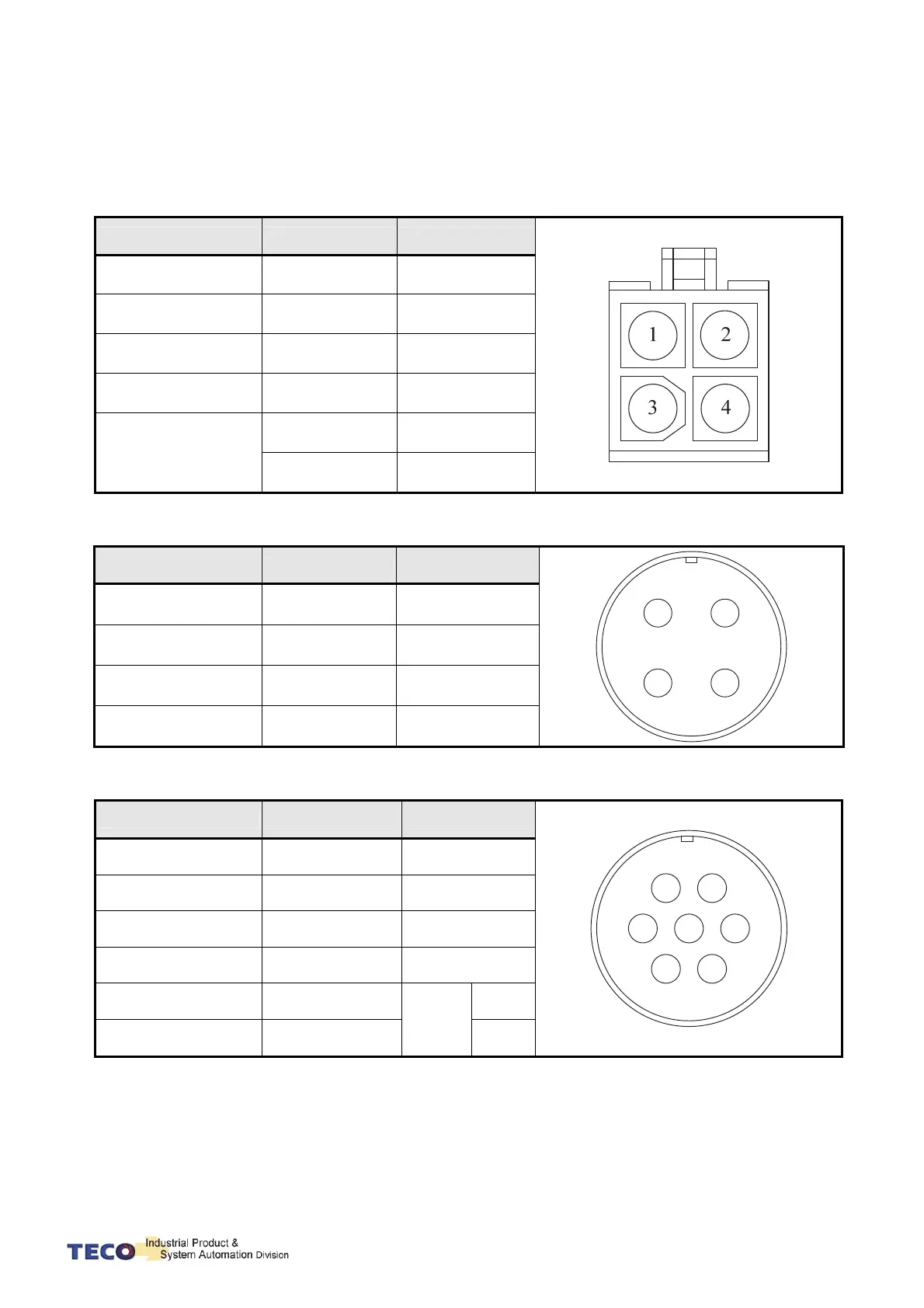

2-1-4 Motor Terminal Layout
Table of Motor-Terminal Wiring
(1) General Joint:
Terminal Symbol Color Signal
1 Red U
2 White V
3 Black W
4 Yellow / Green FG
Brake control wire
Fine White 1 0V
Fine White 2 DC +24V
(2) Military Specifications Joint (No Brake):
Terminal Color Signal
A
B
D
C
A Red U
B White V
C Black W
D Green FG
(3) Military Specifications Joint (Brake):
Terminal Color Signal
A
B
DC
E
F
G
B Red U
G White V
E Black W
C Green FG
A Fine White 1
BK
control
wire
0V
F Fine White 2
DC
+24V
P.S.: The military joint with BK of servo motor has 9 Pins; and the encoder joint has also 9 Pins. Please
confirm before wiring.
