Appendix A
For the absolute encoder, JSDAP series has optional battery module, battery modules are divided into two
parts of the battery and installation, described as below.
Battery Specification
NO. ITEMS Characteristics
1
Nominal Capacity
2400 mAh (Continuosly discharged under 2mA current till 2.0V
end-point voltage at the temperature of 23℃±3℃)
2
Nominal Voltage
3.6V
3
Operating Temperature Range
-40~+85℃
4
Max. Continuos Discharge Current
100mA
5
Structures
Thiony chloride, lithium anode, acetylene black, separator, and
stainless steel cell shell etc.
6
Weight for reference
19.0g
Installation
When customers received the battery modules, battery and casing has been installed properly, please refer
the following steps to install.

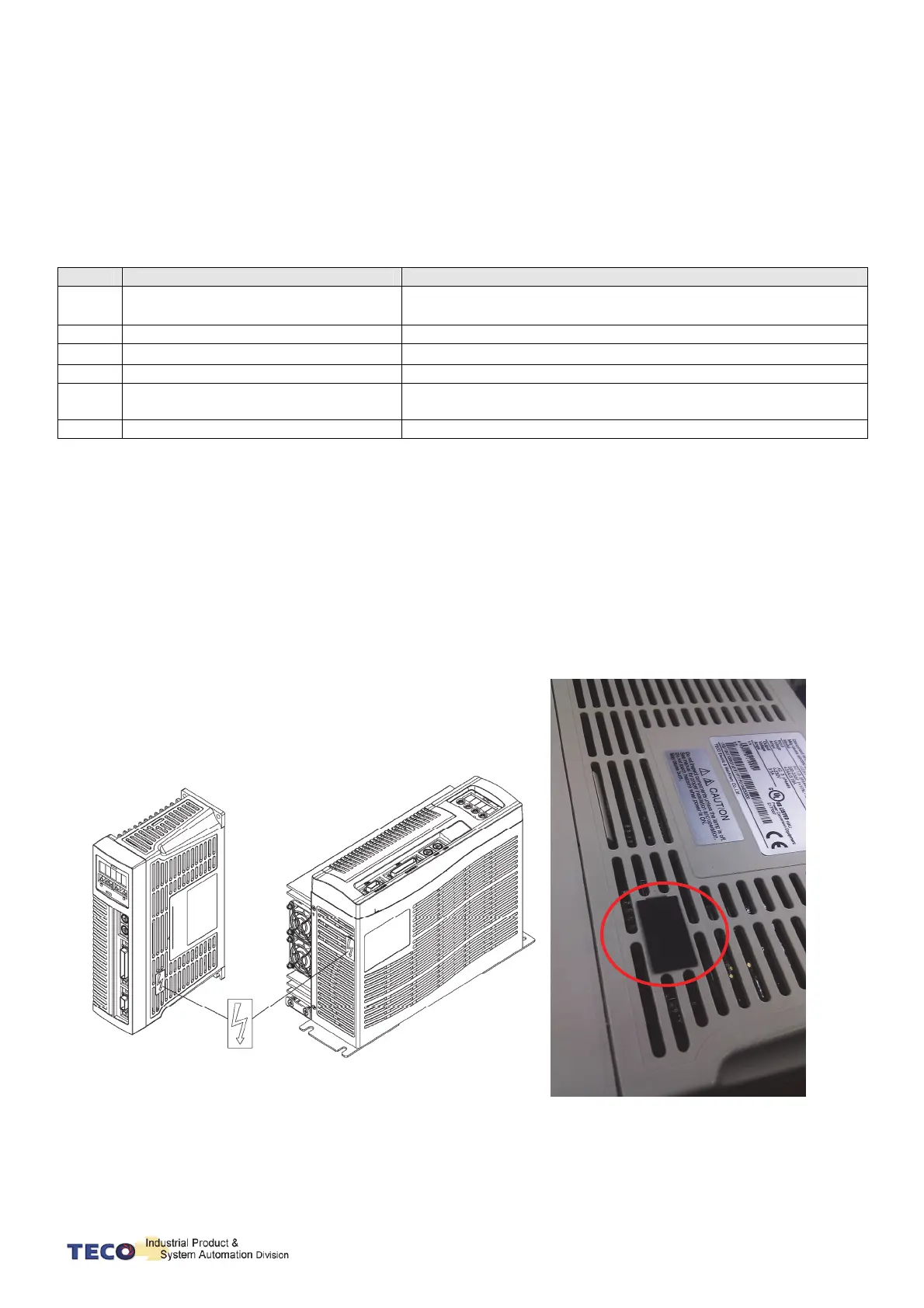

a. The drive has a black lightning symbol protective cover, such as the circle marked.
