TECO JSDE-15 User Manual

46
Parameter Name & Functions Default Unit
Setting
Range
Control
Mode
Chapter
Speed loop Gain 2
Sn213
Refer to Sn211
40 Hz
10
│
450
Pi
Pe
S
5-3-8
5-5
Speed loop Integral time 2
Sn214
Refer to Sn212
100
x0.2
msec
1
│
500
Pi
Pe
S
5-3-8
5-5
Value of zero speed
Sn215
Set the zero speed range in Sn215
When the actual speed is lower than Sn215 value, Output
contact ZS is activated.
50 rpm
0
│
4500
S 5-3-12

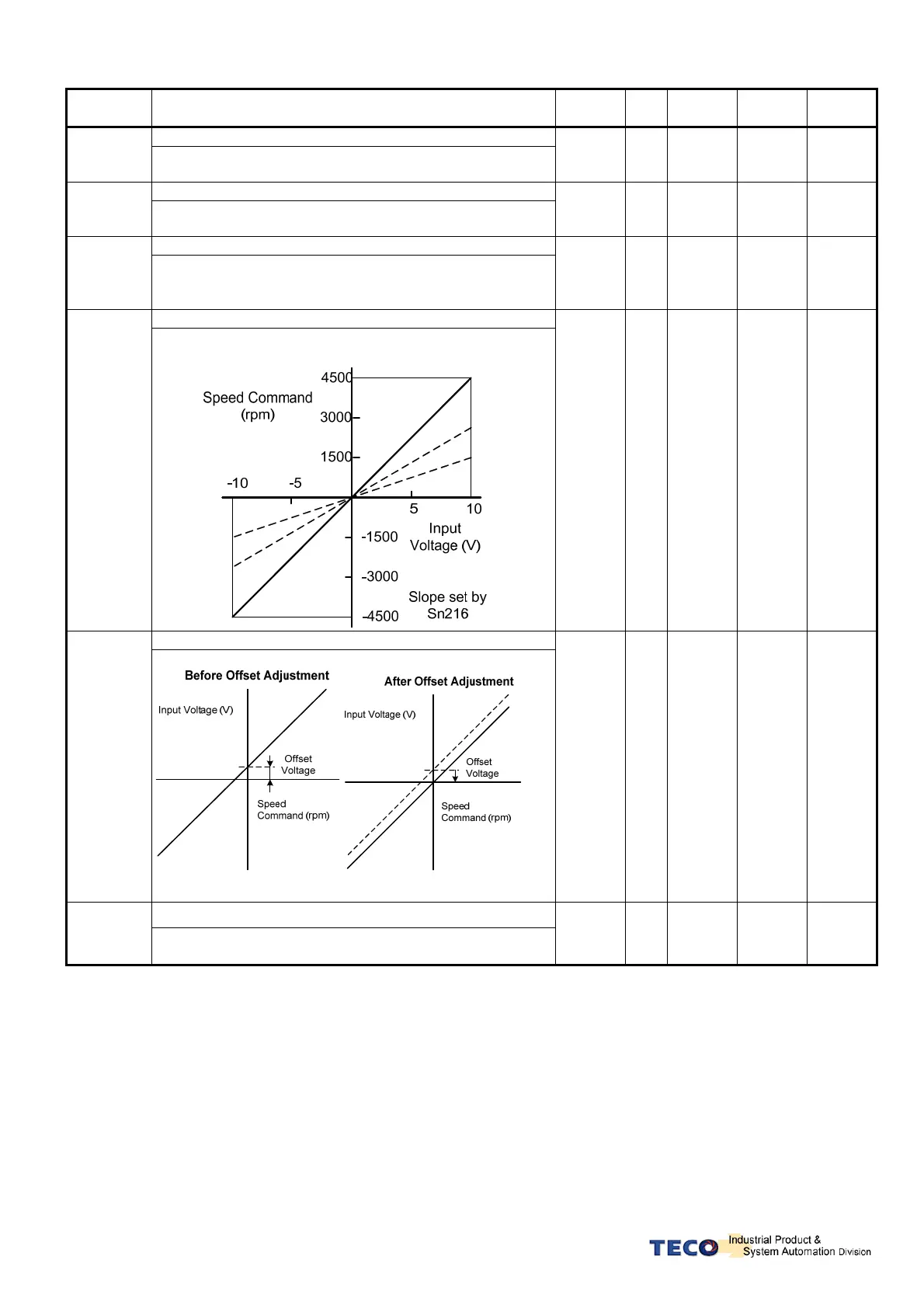

Analog Speed Command Ratio
Sn216
Slope of voltage command / Speed command can be
adjusted.
Rate rpm
rpm
/10V
100
│
4500
S 5-3-2
Analog Speed Command offset adjust
Sn217
The offset amount can be adjusted by this parameter.
0 mV
-10000
│
10000
S 5-3-3
Analog speed command upper limited
Sn218
Setting Sn218 for limit the highest speed command of
analog input.
Rate rpm
x 1.02
rpm
100
│
4500
S 5-3-4
