Tecsun PL-680 User Manual

TECSUN RADIOS AUSTRALIA
www.tecsunradios.com.au

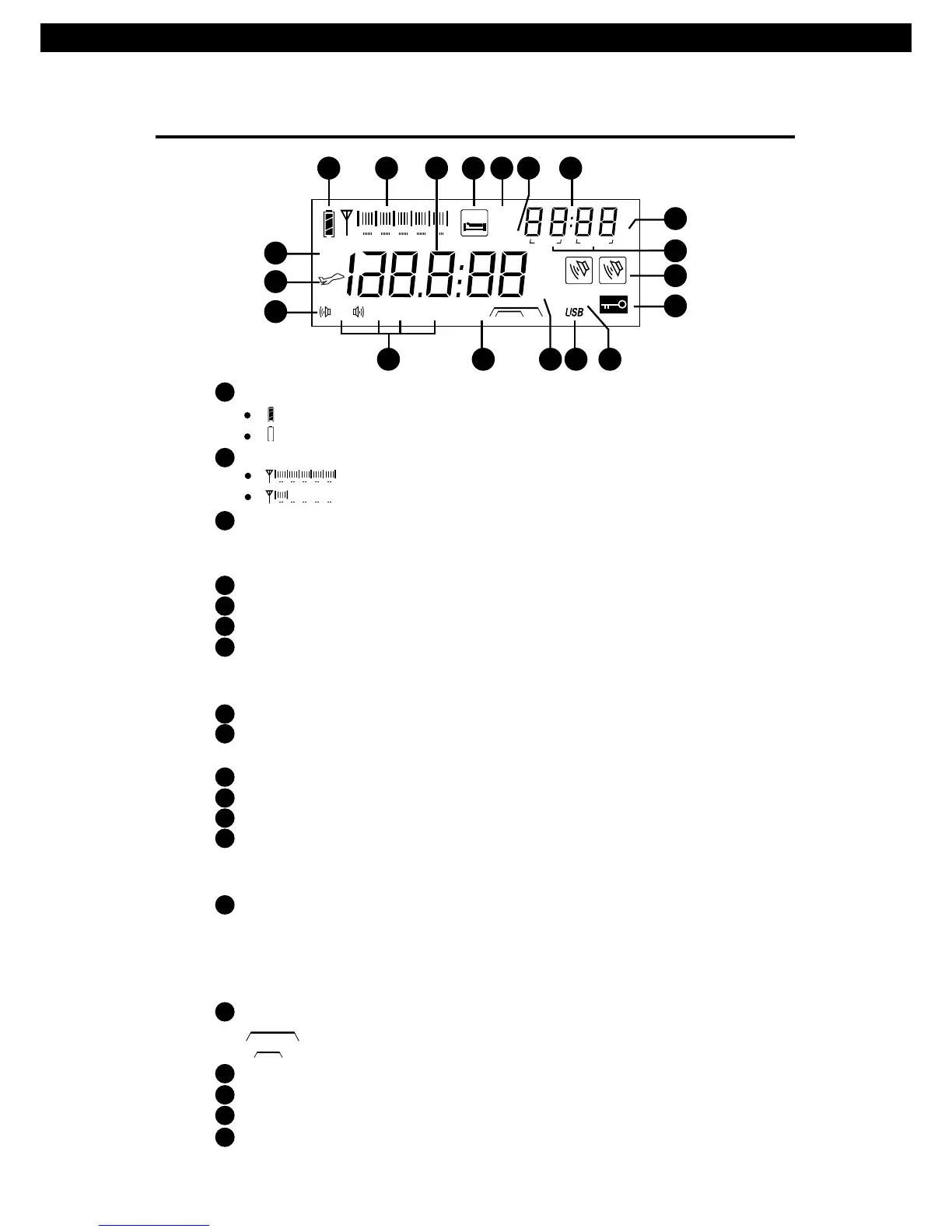

LCD DISPLAY
MHz
A B
SL EEP
kHz
Timer A
PAGE PRESET
mb
SLOW
Ni-MH
Battery
FM MW LW Shortwave BW
FAST
Timer B
Charge
0 1 2 3 4 5
SYNC
AIR
1 2 3 4 5 6 7
8
9
10
11
1213141516
18
19
17
0 1 2 3 4 5
0 1 2 3 4 5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
4 PL-680
19
Battery Consumption indicator
“ ” : Full
“ ” : Empty
Signal Strength indicator
“ ”: Strong Signal
“ ”: Weak Signal
Digital Number Display:
With radio off: Time & System settings
With radio on: Frequency or Error display
Sleep timer indicator
Alarm Timer A or B – Timer indicator
Charging Indicator
Digital Number Display:
With radio off: preset alarm time and charging time
With radio on: time, page & memory address, SW meter band displays.
SW meter band indicator
PAGE: Memory Page number
PRESET: Memory Address number
Alarm Timer A or B - On/Off indicator
Key-Lock indicator
Synchronous band detection
Single Side Band (SSB) indicator
USB: Upper Side Band
LSB: Lower Side Band
Tuning Speed:
Slow: Slow Tuning
Fast: Fast Tuning
KHz: frequency unit for MW, LW & SW
MHz: frequency unit for FM
AM Band width indicator
: AM Wide band
: AM Narrow band
FM, MW,LW and SW Band indicator
FM Stereo indicator
Air Band indicator
Ni-MH Rechargeable Battery indicator

Tecsun PL-680 Specifications

General

SW Frequency Range	1711 - 29999 kHz
LW Frequency Range	100 - 519 kHz
Air Band Frequency Range	118 - 137 MHz
SSB	Yes
Display	LCD
Type	Portable
Speaker	Built-in
Speaker Size	77 mm
Antenna	Telescopic
Frequency Coverage	FM, MW, SW, LW, Air Band
FM Frequency Range	87-108 MHz
MW Frequency Range	520 - 1710 kHz
Power Supply	4 x AA batteries or DC 6V
Tuning Modes	Manual, Auto
Sensitivity	FM < 3uV, MW < 1mV/m, SW < 20uV
