18. Installation and mounting
Instruments XB570L shall be mounted on vertical panel, in a 150x31 mm hole, and fixed using two
screws ø 3 x 2mm. To obtain an IP65 protection grade use the front panel rubber gasket (mod. RG-L).
The temperature range allowed for correct operation is 0 - 60 °C. Avoid places subject to strong vibrations,
corrosive gases, excessive dirt or humidity. The same recommendations apply to probes. Let the air
circulate by the cooling holes.

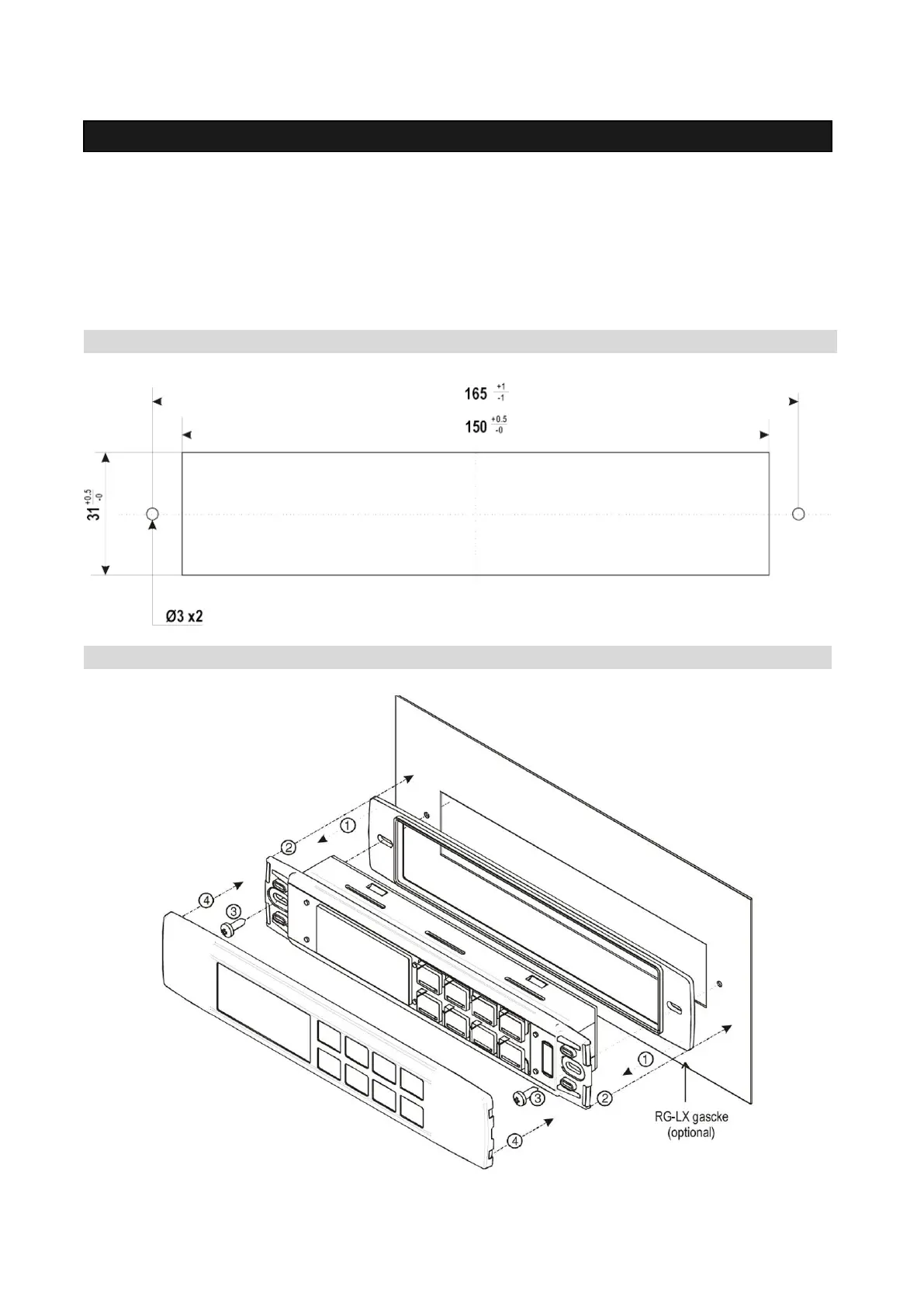

18.1 CUT OUT
18.2 MOUNTING
