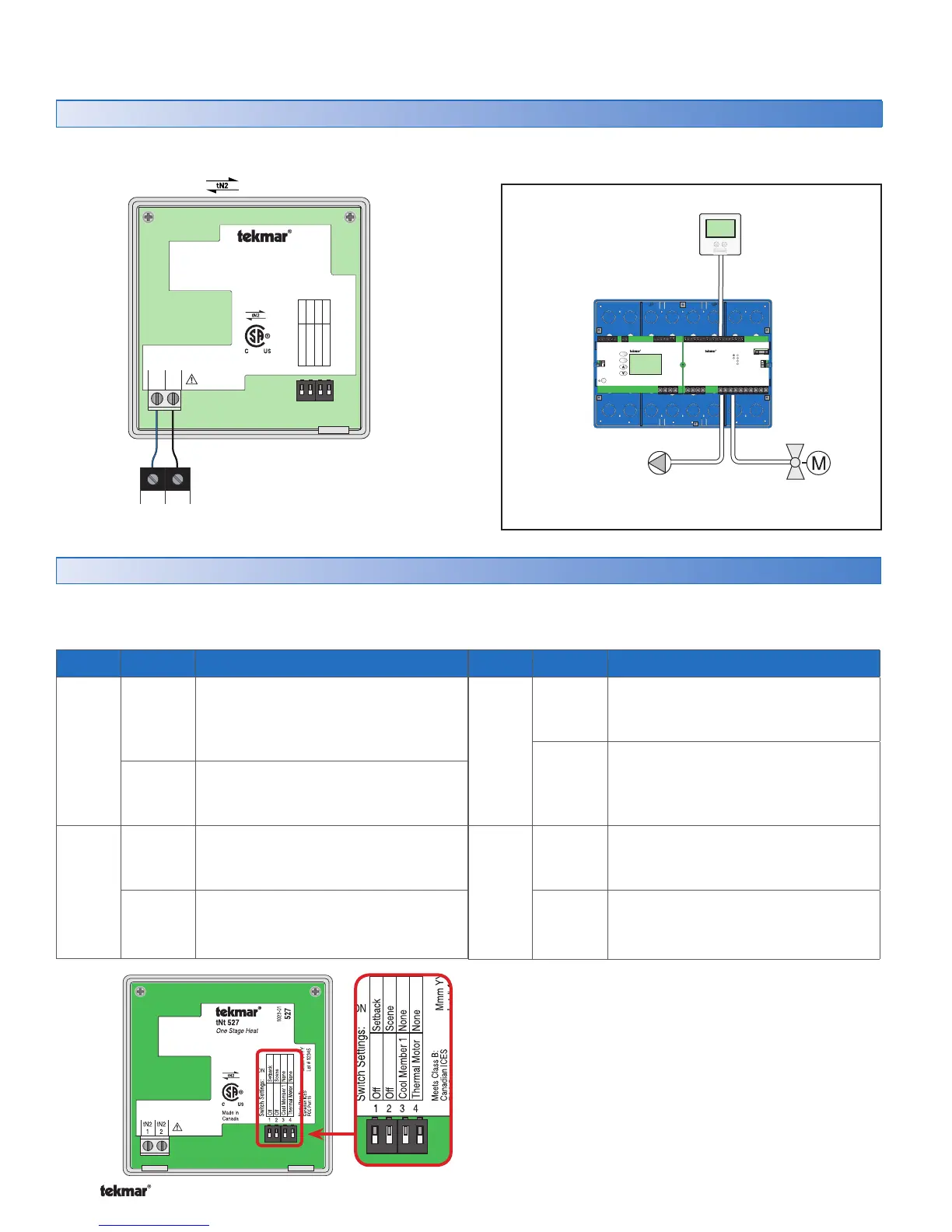

527 Thermostat
The Thermostat 527 operates a single hydronic heating system zone.
12 34
1234
tNt 527
527
One Stage Heat
Made in
Canada
Mmm YYYY Lot # 12345
Meets Class B: Canadian ICES FCC Part 15
1023-01
tN2
1
tN2
2
Switch Settings:
For instructions see brochure
Use at least 65°C conductors
ON
Setback
Scene
None None
Thermal Motor
Cool Member 1
Off Off
527 tNt
tN2 Manager, Module
or Wiring Center
tN2 tN2
Test
Item
Menu
Heating System
Reset
Module
tN2
Zone
Manager
527
12 34
For instructions see brochure
Use at least 65°C conductors
12 34
Switch Position Action
1
ON
Setback
Thermostat will follow a schedule
device if one is present on the
system. (Schedule #1 only).
OFF
OFF
Thermostat does not follow a
schedule.
2
ON
Scene
The thermostat responds to Scene
changes (see “Scenes”, Page 20).
OFF
OFF
Thermostat will not respond to
Scenes.
DIP Switch Settings
Thermostat 527 DIP Switches
These DIP switches are located on the inside of the thermostat cover. They are shipped “On” from the factory, and will not
have to be adjusted for most applications.
Wiring
Switch Position Action
3
ON
None
Thermostat is not part of a cooling
group.
OFF
Cool Member 1
Thermostat joins as a member of
cooling group number 1.
4
ON
None
Thermostat operates a motorized
zone valve or zone pump.
OFF
Thermal Motor
Thermostat operates a thermal motor
(wax actuator) zone valve.
