Tekmar 527 - tekmarNet 2 Thermostat 528; 528 DIP Switch Settings

9 of 28 © 2009 D 527 - 06/09
528 Thermostat
12 34
1234
tNt 528
528
One Stage Heat
Made in
Canada
Mmm YYYY Lot # 12345
Meets Class B: Canadian ICES FCC Part 15
1023-02
tN2
1
tN2
2
Switch Settings:
For instructions see brochure
Use at least 65°C conductors
ON
S1
3
S1
4
Setback
Scene
None
Floor Sensor
Outdoor Sensor
Cool Member 1
Off
Off
12 34
1234
M YYY
Meets Class B:
Switch Settings:
ON
Setback
Scene
None
Floor Sensor
Outdoor Sensor
Cool Member 1
Off
Off

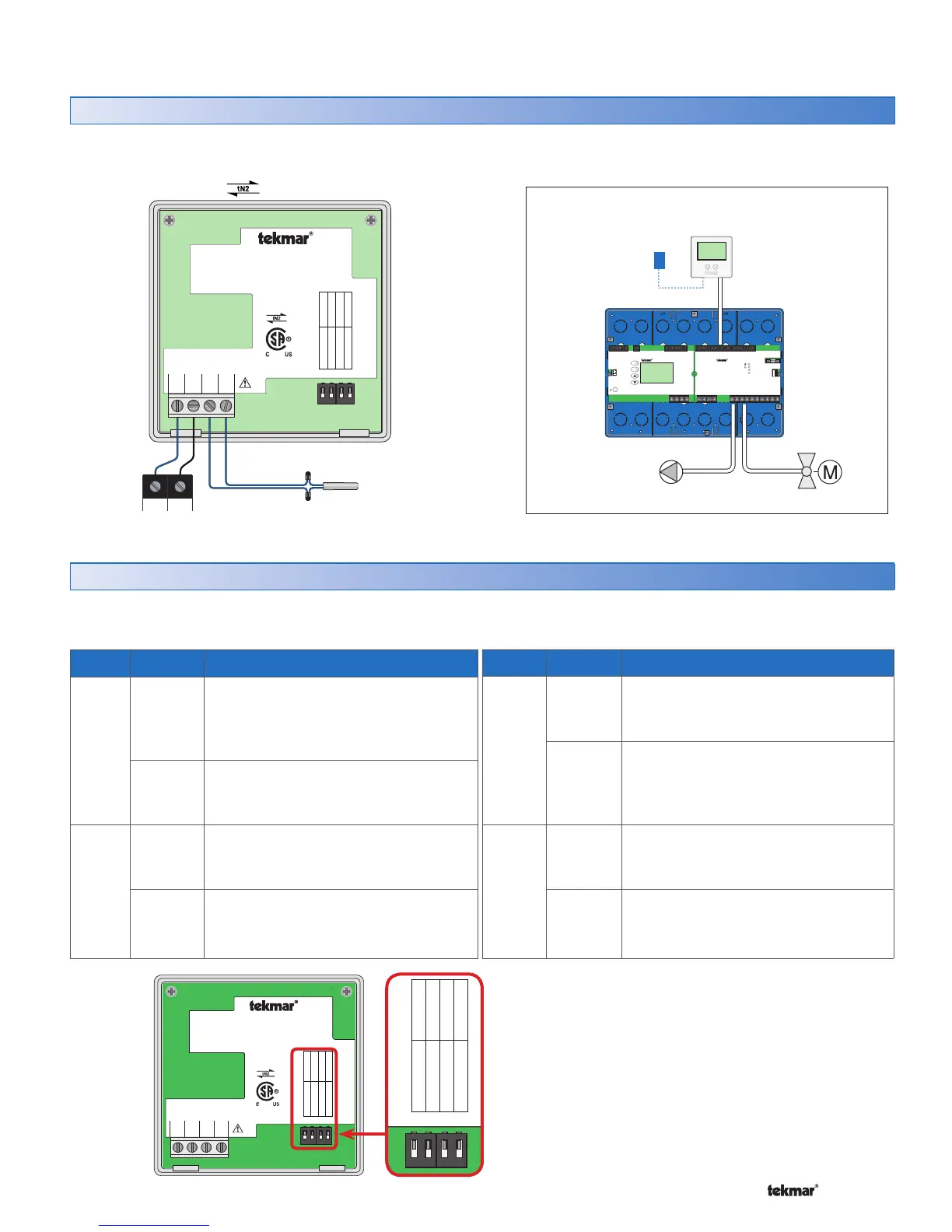

DIP Switch Settings
Thermostat 528 DIP Switches
These DIP switches are located on the inside of the thermostat cover. They are shipped “On” from the factory, and will not
have to be adjusted for most applications.
Test
Item
Menu
Heating System
Reset
Module
tN2
Zone
Manager
528
Floor or
Outdoor
Sensor
The thermostat 528 operates a single hydronic heating zone. It can be equipped with an optional outdoor sensor or floor
sensor using the sensor input.
12 34
1234
tNt 528
528
One Stage Heat
Made in
Canada
Mmm YYYY Lot # 12345
Meets Class B: Canadian ICES FCC Part 15
1023-02
tN2
1
tN2
2
Switch Settings:
For instructions see brochure
Use at least 65°C conductors
ON
S1
3
S1
4
Setback
Scene
None
Floor Sensor
Outdoor Sensor
Cool Member 1
Off
Off
tN2 Manager, Module
or Wiring Center
528 tNt
tN2 tN2
Slab Sensor 079
OR
Outdoor Sensor 070
Description
Switch Position Action
1
ON
Setback
Thermostat will follow a schedule
device if one is present on the system.
(Can follow Schedules 1 through 4.)
OFF
OFF
Thermostat does not follow a
schedule.
2
ON
Scene
The thermostat responds to Scene
changes (see “Scenes”, Page 20).
OFF
OFF
Thermostat will not respond to
Scenes.
Switch Position Action
3
ON
None
Thermostat is not part of a cooling
group.
OFF
Cool Member 1
Thermostat joins as a member of
cooling group number 1.
4
ON
Floor Sensor
Auxiliary sensor input configured for
floor sensing.
OFF
Outdoor Sensor
Auxiliary sensor input configured for
outdoor air sensing.
