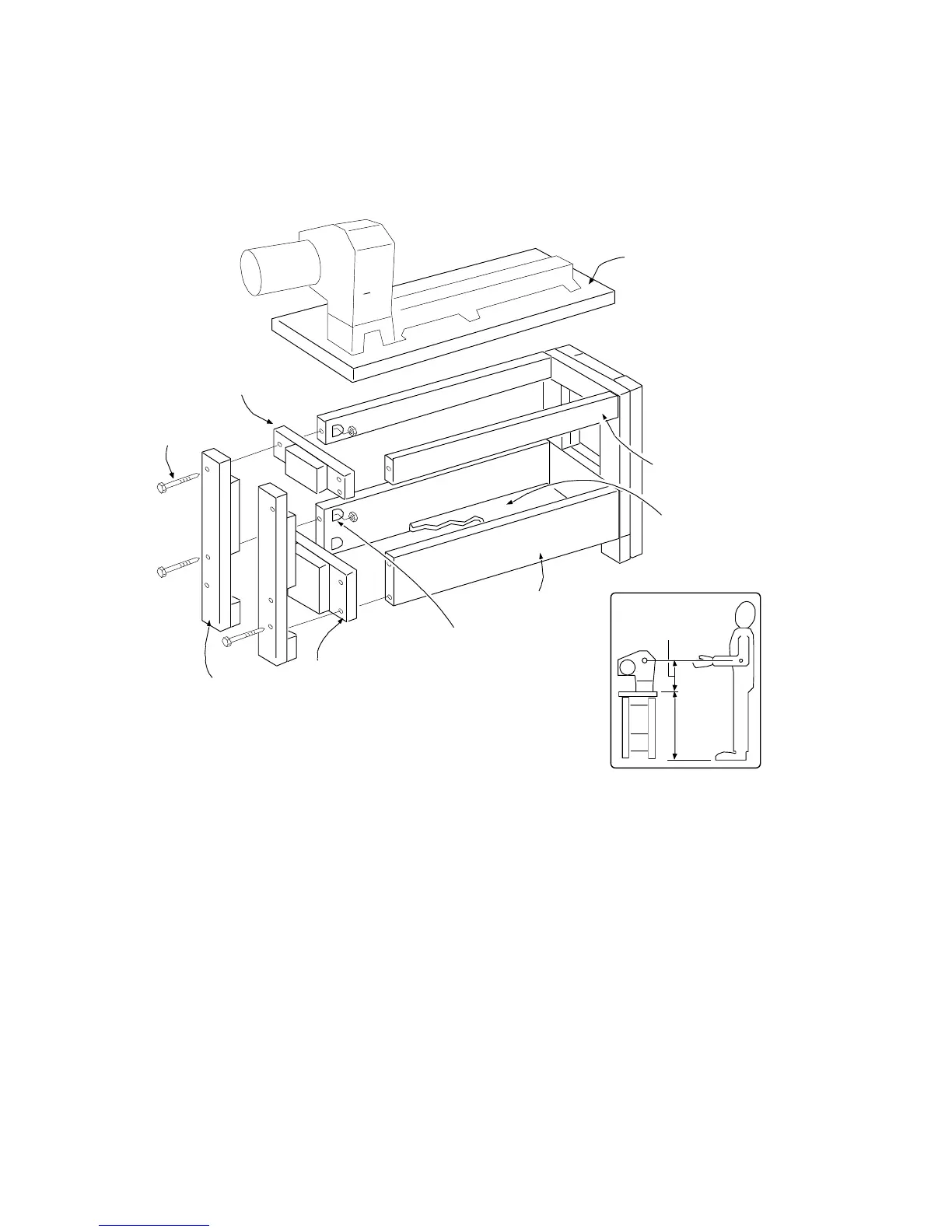

Example of Shop-made Lathe Stand
This has been designed with economy of space in mind. Heavier sections, wider rails and gussets on
the corners are encouraged. For stability and vibration dampening, it is highly recommended that the
base is filled with sand.
297 mm
(11-11/16 in.)
to suit
turner
Top
43 x 16 x 2 in.
plywood bottom
(compartment for sand)
Lower Rail (2)
1-1/2 x 7-1/2 x 33 in.
Leg (4)
1-1/2 x 3-1/2 in. x
height to suit turner
Upper Leg Brace (2)
1-1/2 x 3-1/2 x 13 in.
Lower Leg Brace (2)
1-1/2 x 7-1/2 x 13 in.
Upper Rail (2)
1-1/2 x 3-1/2 x 33 in.
Glue and screw leg pieces
Recessed Hole,
drill hole and chisel one
side square for nut.
Machine
Bolt (12)
