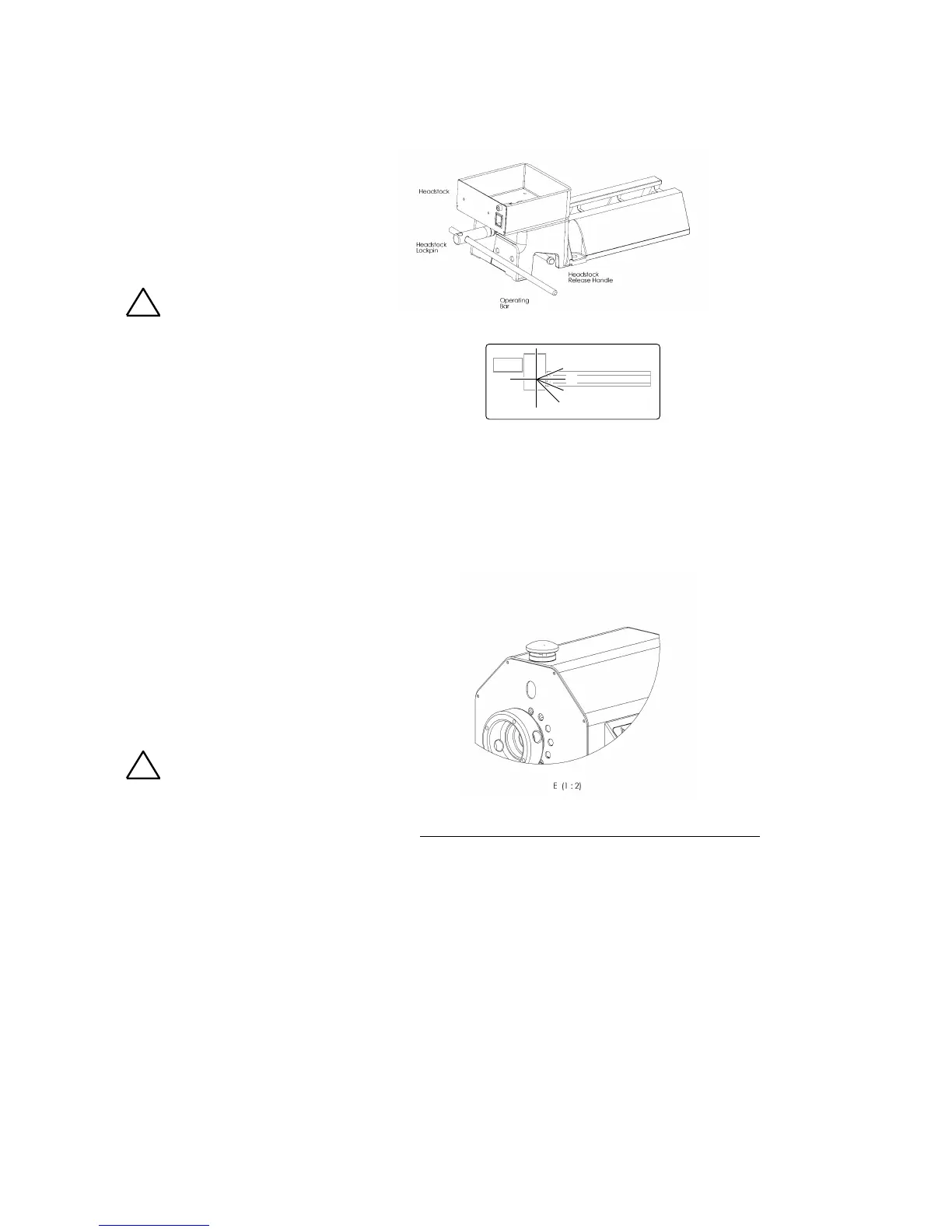

Swiveling the Headstock
1. Stop the lathe. Insert the operating
bar into a hole in the Headstock
Lockpin. Loosen the Lockpin half a
turn.
2. Slide the Headstock Release
Handle towards outboard end of
lathe, and rotate the headstock to a
detent position. Do not push down
on the handle.
Warning!
Use the detent latch positions
to prevent headstock
movement during turning.
4. Firmly tighten the Headstock
Lockpin with the operating bar;
but do not use excessive force.
Remove the operating bar.
Headstock
Lockpin
Headstock
Release Handle
Headstock
Operating Bar
90°
180°
45°
22.5°
337.5°
0°
Detent Positions
Right-hand Turners Left-hand Turners
Detent Positions 0, 22.5, 45, 90 degrees 180, 337.5 degrees
The spindle index pin locks the
headstock spindle. It is selectable in
15 degree increments (24 divisions).
There is sight hole to read index
numbers (0 through 23).
1. Stop the lathe.
2. Pull the index knob and turn it left
until the pin drops into the hole. To
lock the spindle it must engage into
a hole in the headstock pulley.
Warning!
Make sure the index pin is
out before operating the lathe.
The pin should drop into the
indentation in the headstock to
prevent it from engaging while
the spindle is turning.
Divisions Index Number Degrees
2 0,12 180
3 0,8,16 (every 8
th
) 120
4 0,6,12,18 (every 6
th
) 90
6 0,4,8,12,16,20 (every 4
th
) 60
8 0,3,6,9,12,15,18,21 (every 3
rd
) 45
12 0,2,4,6,8…22 (every 2
nd
) 30
24 every hole 15
