Using the Nova DVR XP

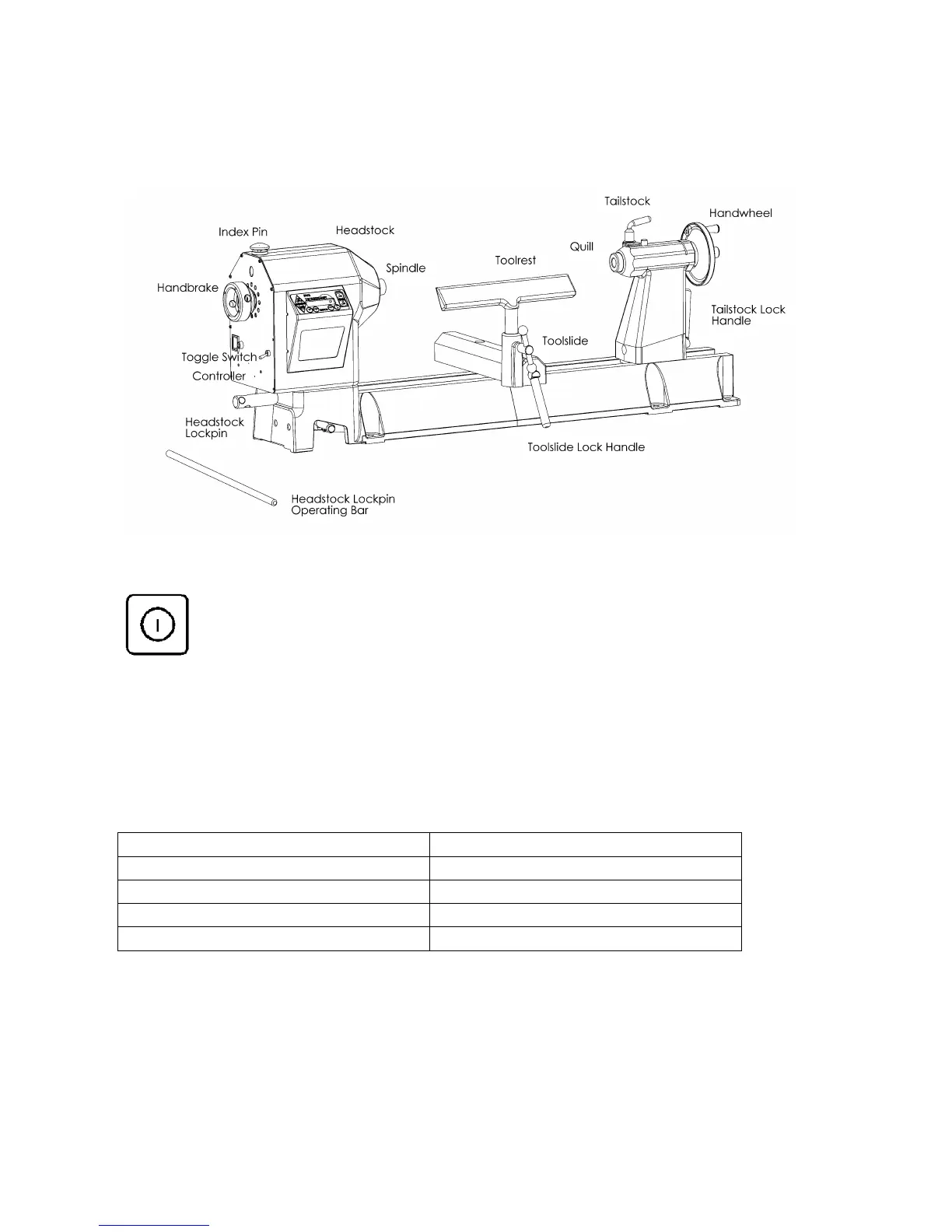

Parts of the Nova DVR XP Woodlathe
DVR Variable Speed Controller
The Nova DVR XP drive is a unique type of motor and controller where the motor and
controller interact. The motor provides data to the controller on its position and load
conditions.
The motor provides high torque even at low rpm and inherits extremely close speed control.
With the toggle switch in the Off position, plug lead into wall socket and switch on.
An electronic tune will be heard as the controller computer "boots up" and the LCD display will show a
two-line display.
DVR Drive Parameters
Motor Type: Digital Variable Reluctance
Accuracy of Speed Stabilization: <2.5%
Motor Power: 1.75 Hp for 115v, 2.3 Hp for 230v
Regulator Type: PID
Efficiency: > 0.80
Speed Stabilization: Current level, pulse width
Motor Speed Range: 100-3500 rpm
Reverse: Yes
Default speed (when powering up) : 500 RPM
Speed Control: Button (5rpmincrement)
