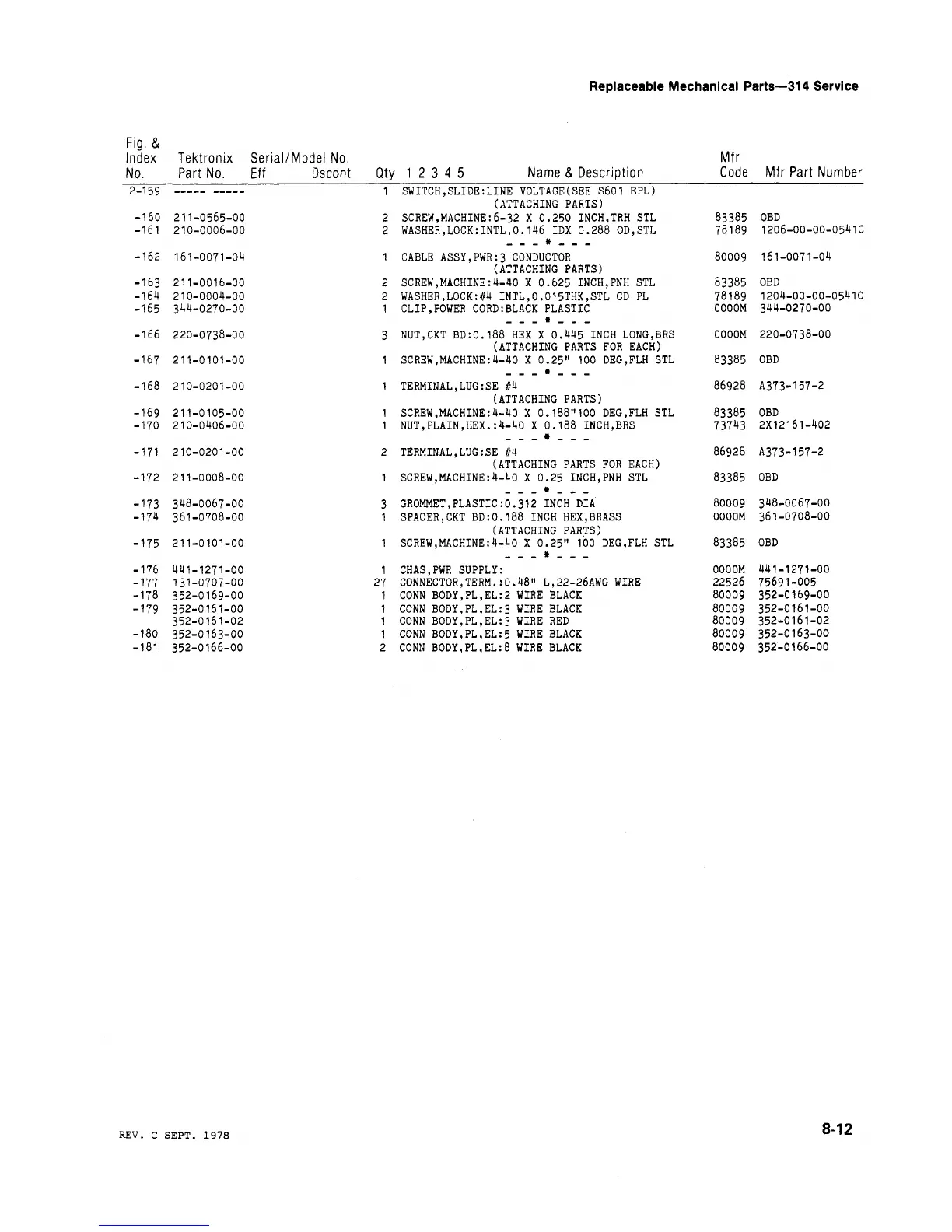

Replaceable Mechanical Parts-314 Service
Fig. &
Index
No.
2-1 59
Tektronix SeriallModel No.
Part No. Eff Dscont
Mfr
Code
Qty 12345 Name & Description
1 SWITCH ,SLIDE:LINE VOLTAGE(SEE S601 EPL)
(ATTACHING PARTS)
2 SCREW,MACHINE:6-32 X 0.250 INCH,TRH STL
2
WASHER,LOCK:INTL,O.146 IDX 0.288 OD,STL
---*---
1 CABLE ASSY,PWR:3 CONDUCTOR
(ATTACHING PARTS)
2 SCREW,MACHINE:4-40 X 0.625 INCH,PNH STL
2 WASHER,LOCK:#4 INTL,O.O15THK,STL CD PL
1 CLIP,POWER C0RD:BLACK PLASTIC
---I---
3 NUT,CKT BD:0.188 HEX X 0.445 INCH LONG,BRS
(ATTACHING PARTS FOR EACH)
1 SCREW,MACHINE:4-40 X 0.25" 100 DEG,FLH STL
---*---
1 TERMINAL, LUG : SE #4
(ATTACHING PARTS)
1 SCREW,MACHINE:4-40 X 0.188"100 DEG,FLH STL
1 NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS
- - - - - -
2 TERMINAL, LUG: SE #4
(ATTACHING PARTS FOR EACH)
1 SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL
---*---
3 GROMMET,PLASTIC:0.312 INCH DIA
1 SPACER,CKT BD:0.188 INCH HEX,BRASS
(ATTACHING PARTS)
1 SCREW,MACHINE:4-40 X 0.25" 100 DEG,FLH STL
---*---
1 CHAS,PWR SUPPLY:
27 CONNECTOR,TERM.:0.48" L,22-26AWG WIRE
1 CONN BODY,PL,EL:2 WIRE BLACK
1 CONN BODY,PL,EL: 3 WIRE BLACK
1 CONN BODY, PL ,EL: 3 WIRE RED
1 CONN BODY,PL,EL:5 WIRE BLACK
2 CONN BODY,PL,EL:8 WIRE BLACK
Mfr Part Number
OBD
1206-00-00-0541C
83385
78 189
OOOOM
OBD
1204-00-00-0541C
344-0270-00
OOOOM
OBD
OBD
2x12161-402
OBD
80009
OOOOM
OBD
OOOOM
22526
80009
80009
80009
80009
80009
REV. C SEPT. 1978
