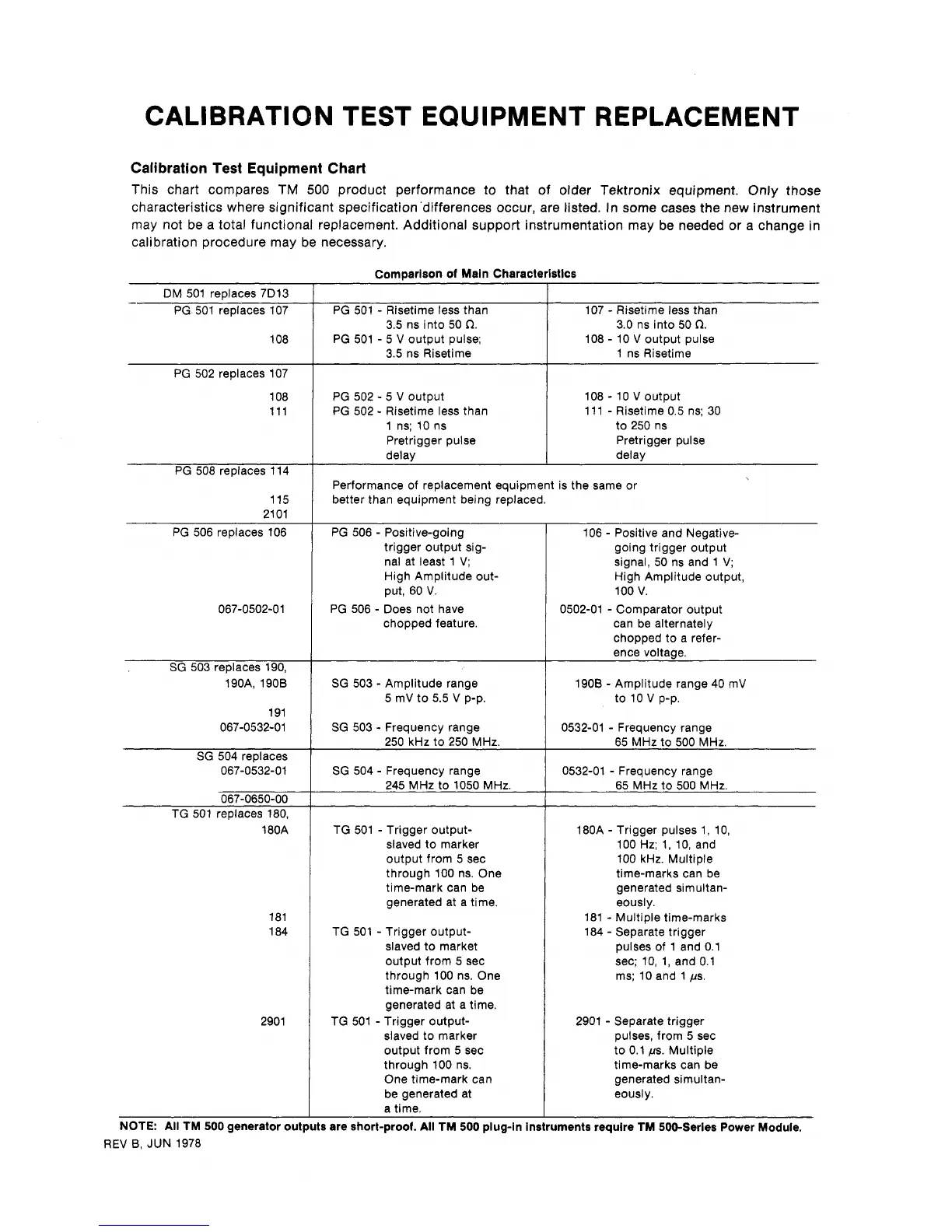

CALIBRATION TEST EQUIPMENT REPLACEMENT
Calibration Test Equipment Chart
This chart compares TM 500 product performance to that of older Tektronix equipment. Only those
characteristics where significant specification 'differences occur, are listed. In some cases the new instrument
may not be a total functional replacement. Additional support instrumentation may be needed or
a change in
calibration procedure may be necessary.
-
DM 501 replaces 7D13
PG 501 replaces 107
PG 502 replaces 107
PG 508 replaces 114
115
2101
PG 506 replaces 106
SG 503 replaces 190,
190A, 1906
SG 504 replaces
067-0532-01
067-0650-00
TG 501 replaces 180,
180A
PG 502
- 5 V output
PG 502
- Risetime less than
1 ns; 10 ns
Pretrigger pulse
delay
Comparison of Main Characteristics
108 - 10 V output
11 1
- Risetime 0.5 ns; 30
to 250 ns
Pretrigger pulse
delay
PG 501
- Risetime less than
3.5 ns into 50
n.
PG 501 - 5 V output pulse;
3.5 ns Risetime
Performance of replacement equipment is the same or
better than equipment being replaced.
107
- Risetime less than
3.0 ns into 50
n.
108 - 10 V output pulse
1 ns Risetime
PG 506
- Positive-going
trigger output sig-
nal at least 1
V;
High Amplitude out-
put, 60 V.
PG 506
- Does not have
chopped feature.
SG 503
- Amplitude range
5 mV to 5.5 V p-p.
SG 503
- Frequency range
250 kHz to 250 MHz.
SG 504
- Frequency range
245 MHz to 1050 MHz.
TG 501
- Trigger output-
slaved to marker
output from 5 sec
through 100 ns. One
time-mark can be
generated at a time.
TG 501
- Trigger output-
slaved to market
output from 5 sec
through 100 ns. One
time-mark can be
generated at
a time.
TG 501
- Trigger output-
slaved to marker
output from 5 sec
through 100 ns.
One time-mark can
be generated at
a time.
106
- Positive and Negative-
going trigger output
signal, 50 ns and 1 V;
High Amplitude output,
100
v.
0502-01 - Comparator output
can be alternately
chopped to a refer-
ence voltage.
1906
- Amplitude range 40 mV
to 10 V p-p.
0532-01
- Frequency range
65 MHz to 500 MHz.
0532-01
- Frequency range
65 MHz to 500 MHz.
180A
- Trigger pulses 1, 10,
100 Hz; 1, 10, and
100 kHz. Multiple
time-marks can be
generated simultan-
eously.
181
- Multiple time-marks
184
- Separate trigger
pulses of 1 and 0.1
sec; 10,
1, and 0.1
ms; 10 and 1 ccs.
2901
- Separate trigger
pulses, from 5 sec
to 0.1
VS. Multiple
time-marks can be
generated simultan-
eously.
I
NOTE: Ail TM 500 generator outputs are short-proof. All TM 500 plug-in instruments require TM 500-Series Power Module.
REV 6, JUN 1978
