370B User Manual
CONTROL Require Setting
HORIZONTAL COLLECTOR
COLLECTOR SUPPLY POLARITY + for NĆchannel device; - for PĆchannel
device
MAX PEAK POWER WATTS Less than Maximum power rating of the device
STEP GENERATOR OUTPUT VOLTS
PULSE OFF
CONFIGURATION EMITTER COMMON BASE STEP GEN
STEP GENERATOR
Enhancement
Not inverted Inverted
STEP GENERATOR OFFSET with
POLARITY INVERT b tton pressed
Enhancement Depression
u
on presse
OPPOSE ZERO or AID

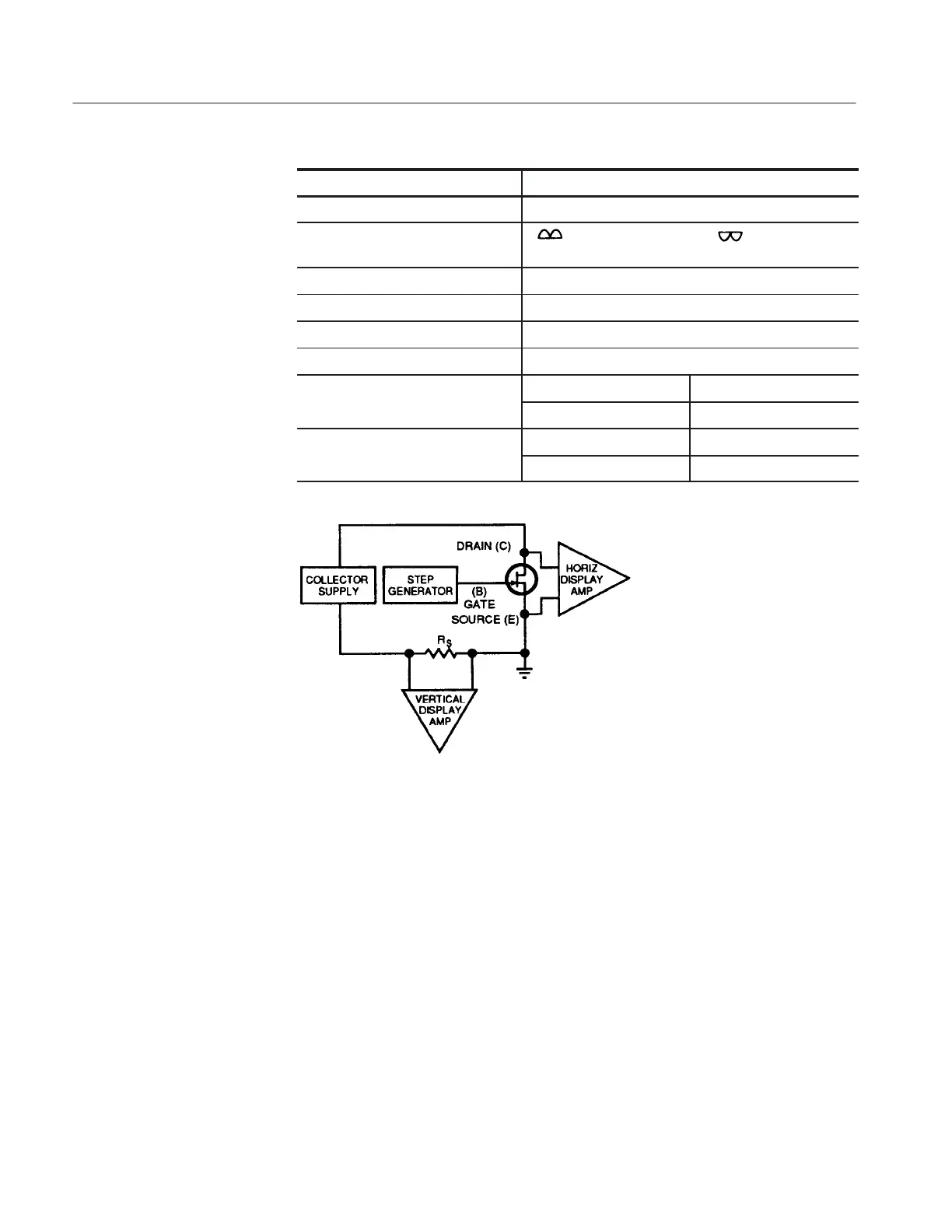

Figure 3-31: CommonĆsource FET Configuration Diagram
Field Effect Transistor
