Tektronix 370B - Figure 2-7: Collector Supply Controls

Operating Basics
370B User Manual
2-19

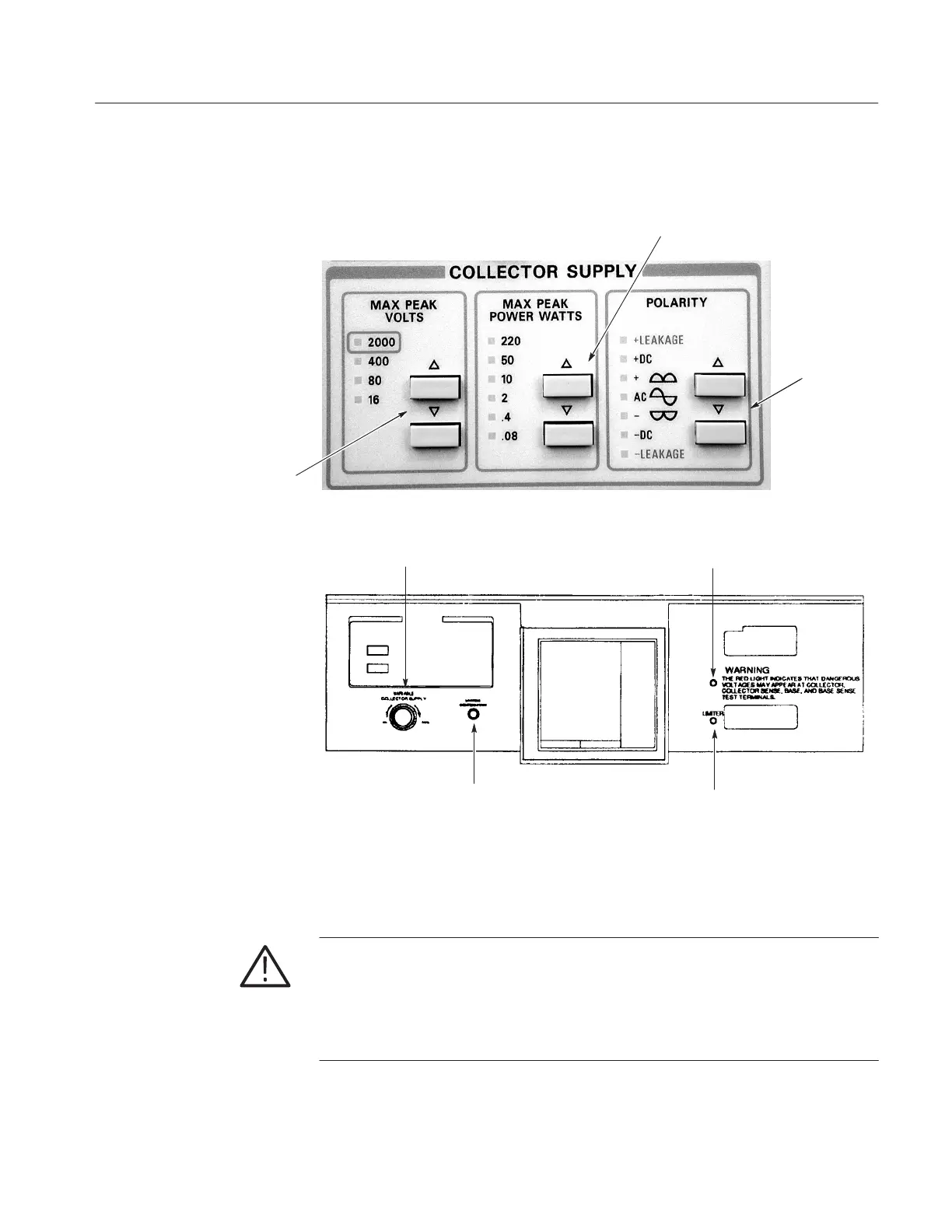

Figure 2–7 shows the COLLECTOR SUPPLY controls.
   

  
   
 

Figure 2-7: Collector Supply Controls
 When using the 370B at high power settings, the device, fixture, or
protective cover may become hot enough to cause injury. Avoid touching any of
these items until cooled.
Dangerous voltage may appear at the front panel connector and base terminals.
To avoid injury or equipment damage, do not remove the protective cover.
Collector Supply Controls
