Replaceable Parts

Table 5-2: Repl

aceable parts list – EMI covers

Fig. & index

number

Tektronix

part number

Serial n o.

effective

Serial no.

discont’d Qty Name & descrip

tion

5-2-

EMI COVERS

200-4992-01 1

COVER, EMI, TOP (AWG7000B)

-1

200-5156-00 1

COVER, EMI, T

OP (AWG7000C)

-2 200-5034-01 1

COVER,EMI,BOTTOM

-3 211-1050-0

SCREW,MACHINE; 6-32 X 0.312 L,PNH,STL CAD PLT,T15

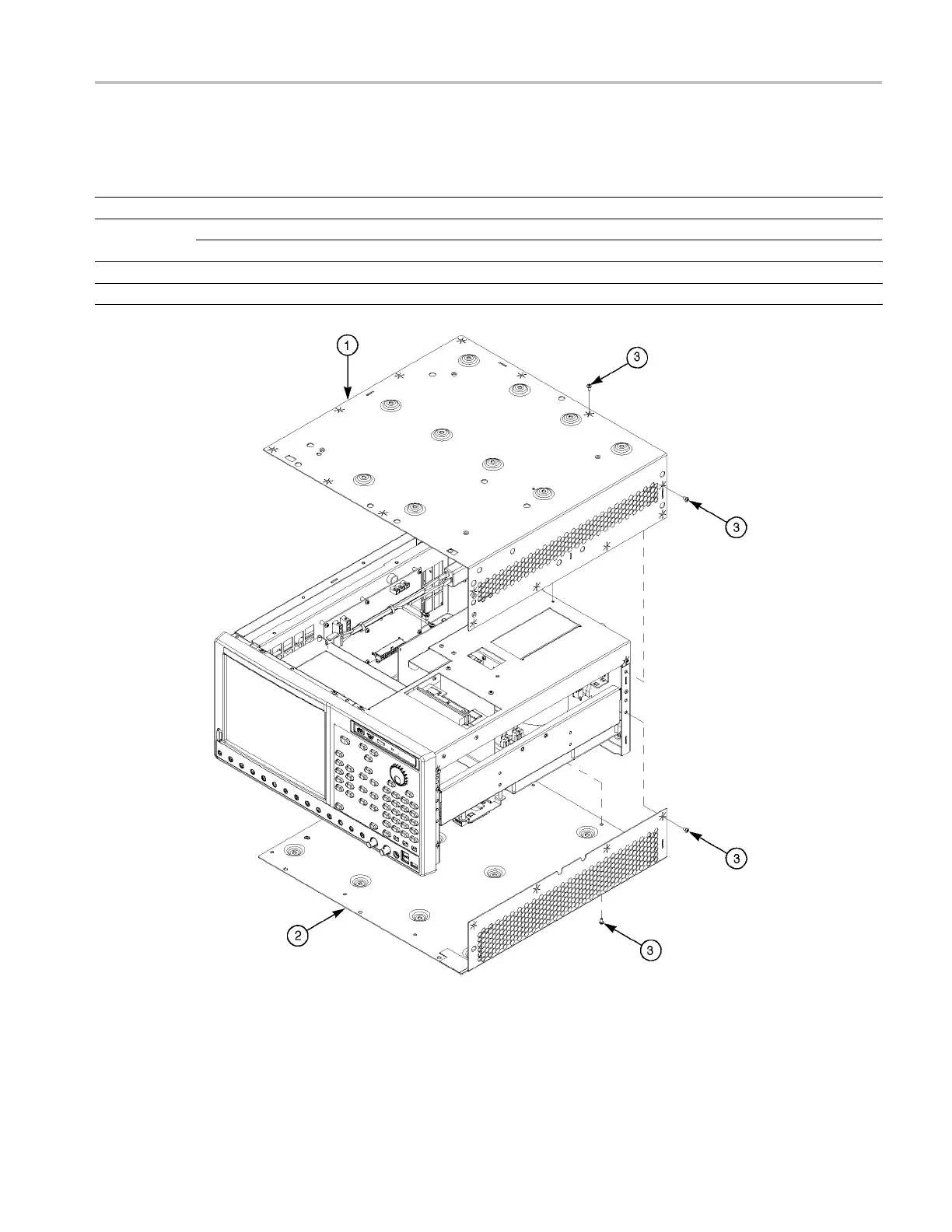

Figure 5-2: EMI Covers

AWG7000B and AWG7000C Series Service Manual 5–5
