Adjustment Procedures

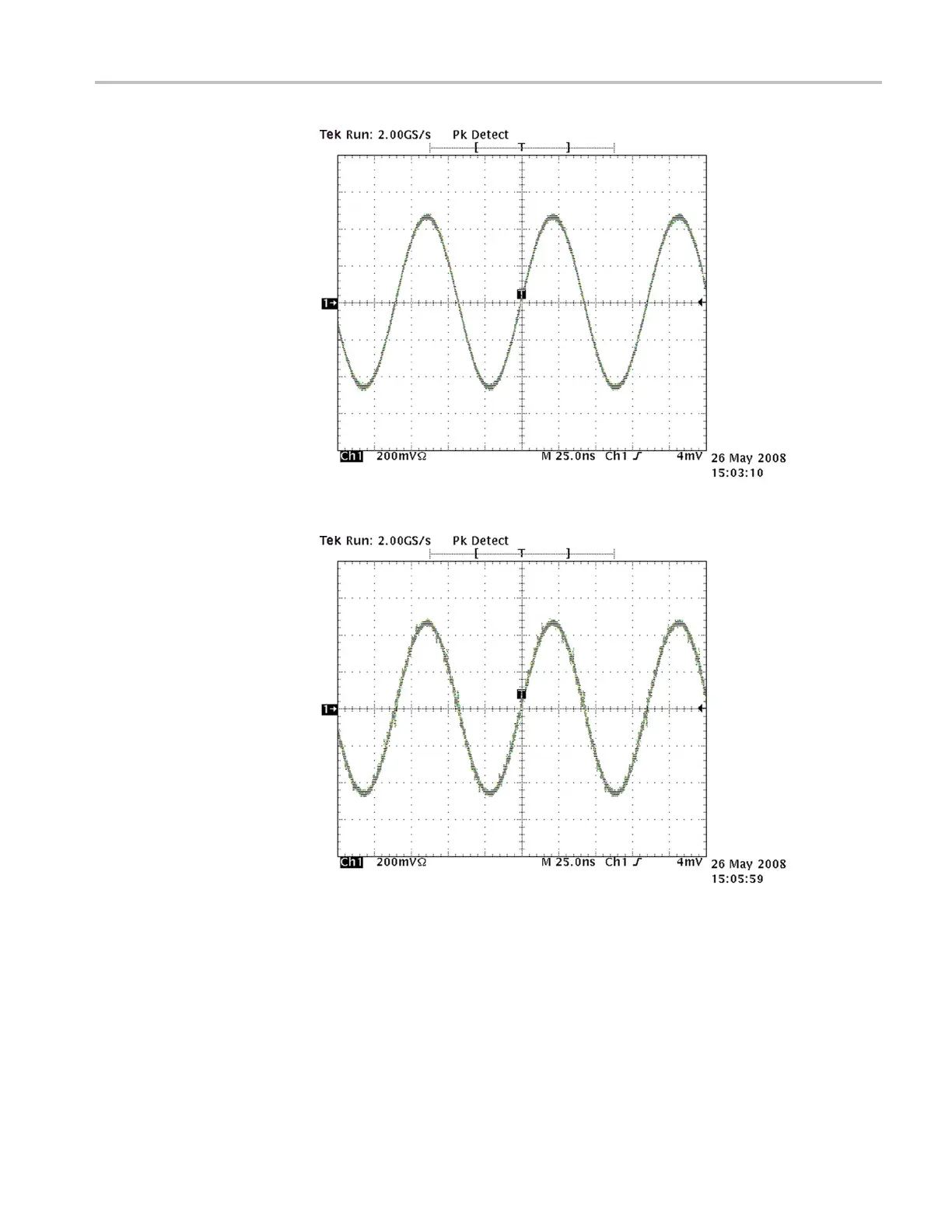

Figure 3-10: Example of good margin and proper timing

Figure 3-11: Example of bad waveform in magic timing margin check

6. Click Close in the Magic Timing Margin Check dialog box.

7. Cl

ick Exit in the AwgServiceUI window.

This completes t he adjustment procedures. Disconnect the equipment from the

nstrument.

AWG7000B and AWG7000C Series Service Manual 3–17
