Removal and Installation Procedures

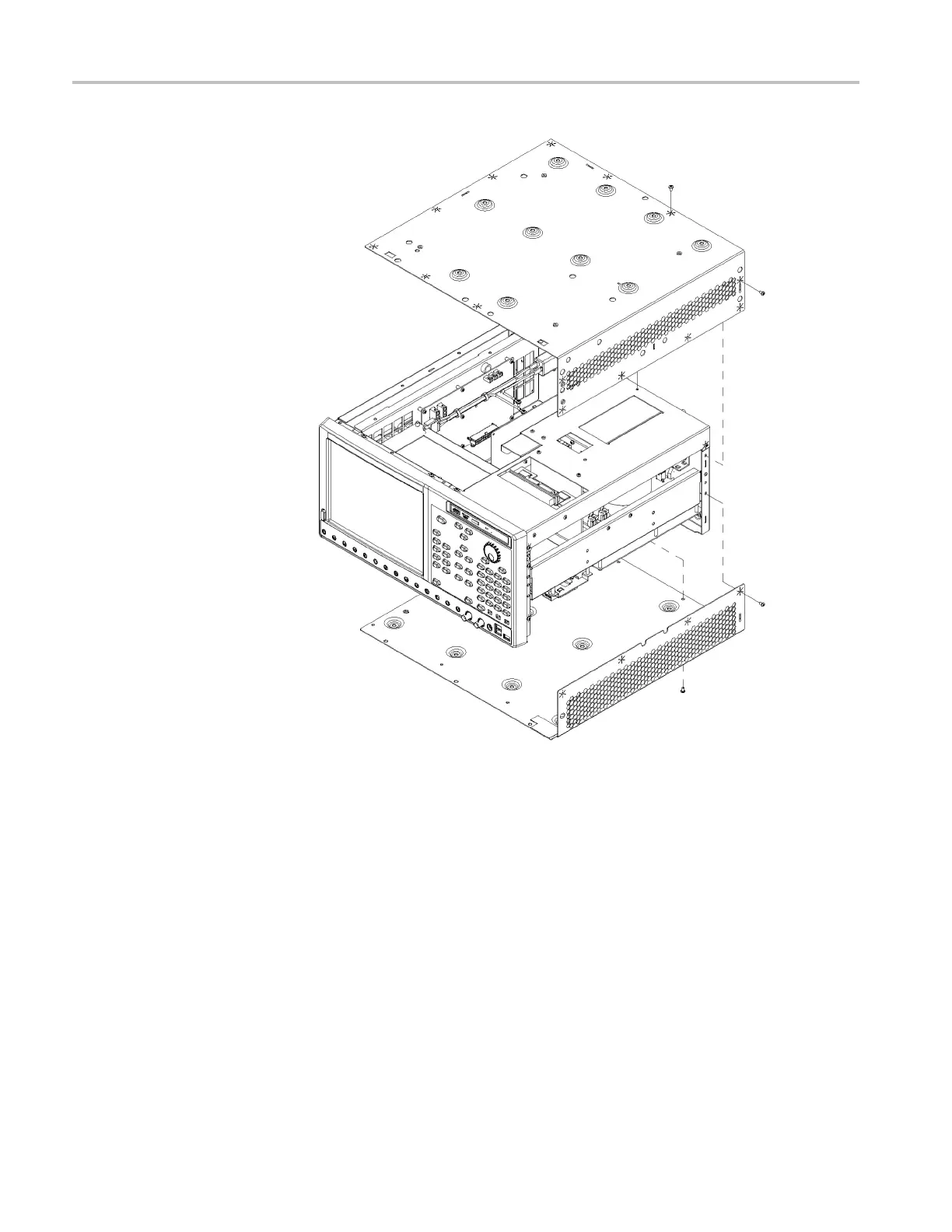

Figure 4-5: EMI cover r emoval

Hard Disk Assembly

Removal. To remove the removable hard disk assembly, follow these steps:

1. Orie

nt the instrument so that its bottom is down on the work surface and

its rear is facing you.

2. Loo

sen the two thumb screws securing the hard disk assembly to the

instrument.

3. Ho

lding the screw heads, pull out the removable hard disk assembly carefully.
